Открытый узел

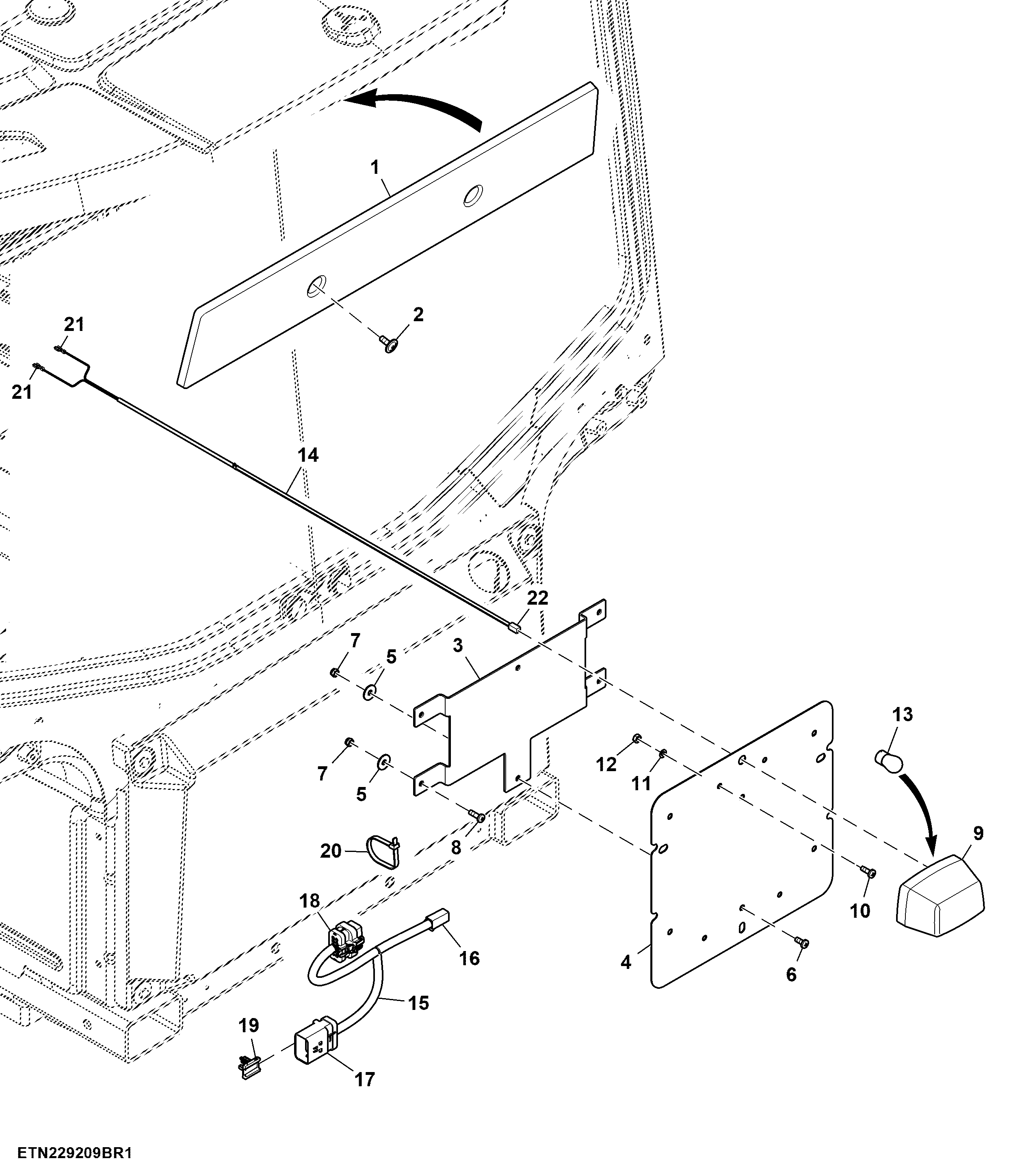

Mounting Parts, License Plate (For EAEU and CIS)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R563874	1	Cover	-
2	R572090	2	Screw	SUB FOR APPL L157372
3	R545788	1	Bracket	-
4	R545404	1	Plate	-
5	24M7139	6	Washer	6.400 X 18 X 1.600 mm
6	21M7265	2	Screw	M5 X 12
7	14M7265	6	Lock Nut	M5
8	21M7271	4	Screw	M5 X 16
9	AL33161	1	Lamp	-
10	21M7250	2	Screw	M4 X 12
11	12M7084	2	Lock Washer	4.300 mm
12	14M7100	2	Nut	M4
13	57M7013	1	Bulb	12 V, 10 W
14	RE52633	1	Wiring Harness	License Plate
15	RE595170	1	Wiring Harness	-
16	57M8813	1	Elec. Connector Housing	Lower License Plate Light (Europe Only), E208
16	57M9200	2	Elec. Connector Terminal	Cavity A, B
17	57M9825	1	Elec. Connector Housing	Jumper to Fender Interconnect, XX109-4
17	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10, 11, 12
18	57M9802	1	Elec. Connector Housing	Jumper to Chassis Interconnect, XX109-3
18	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10, 11, 12
19	57M9940	1	Elec. Connector Accessory	-
20	R44302	1	Tie Band	-
21	57M8996	2	Elec. Connector Terminal	-
22	R77478	1	Electrical Connector Assy	-

Mounting Parts, License Plate (For EAEU and CIS)

Нет текстового описания
