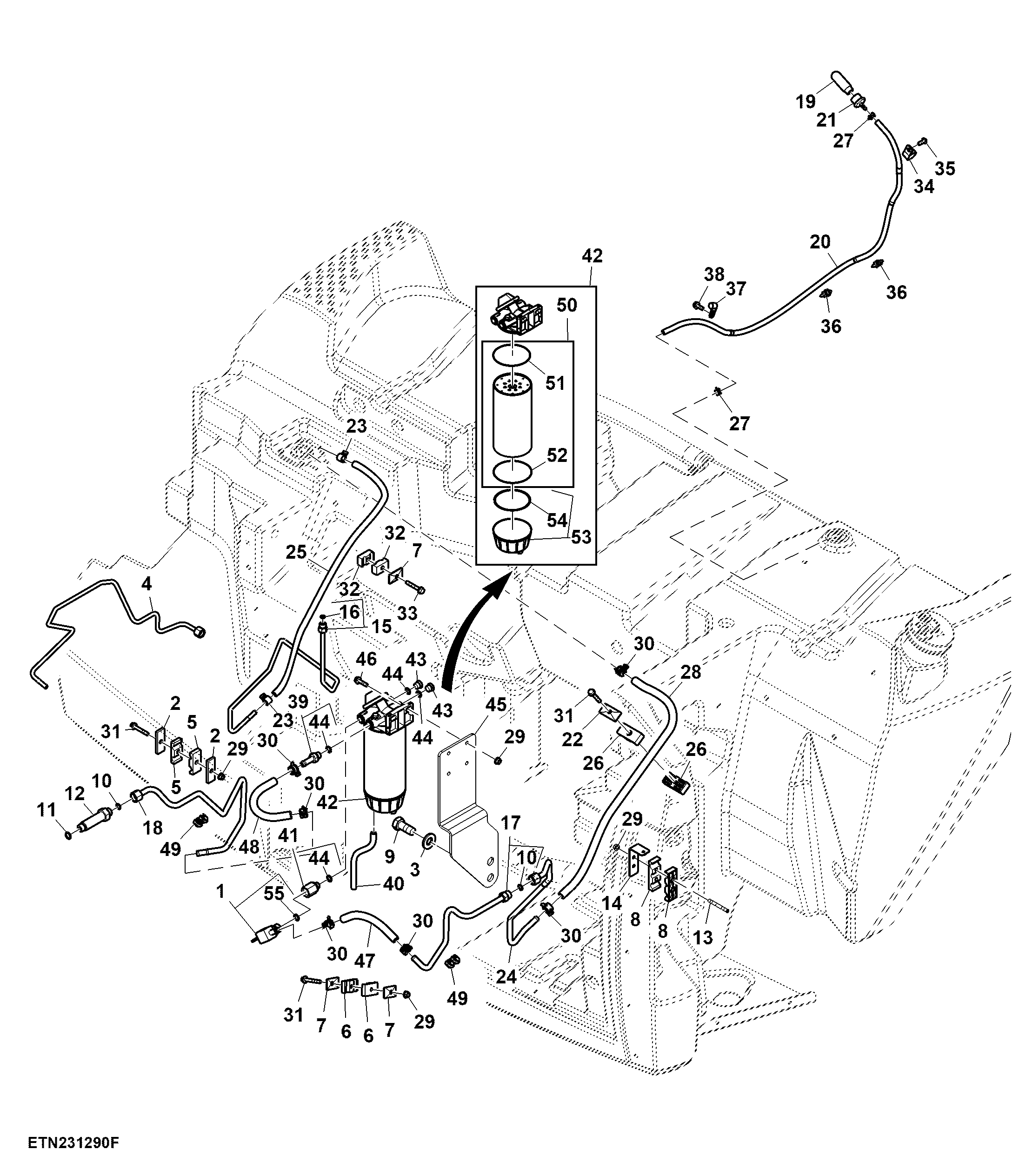

Fuel Line, W/ Water Separator, T2/ T3 Engine

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE287835	1	Valve	Shut-Off
2	R221778	2	Plate	-
3	24M7242	2	Washer	21.400 X 42 X 5 mm
4	RE596177	1	Line	Fuel Cooler Supply
5	R318378	2	Half Clamp	-
6	H135156	2	Clamp	-
7	H121168	3	Plate	-
8	R564101	2	Block Clamp	-
9	19M7950	2	Cap Screw	M20 X 45
10	T77857	2	O-Ring	-
11	51M7043	1	O-Ring	15.300 X 2.200 mm
12	R566866	1	Adapter Fitting	-
13	L221449	2	Stud	-
14	RE596241	1	Bracket	-
15	RE583076	1	Line	Fuel Return to Tank
16	T77613	1	O-Ring	-
17	RE596247	1	Line	Rear, W/ Water Separator
18	RE594002	1	Line	Front, W/ Water Separator
19	H216169	1	Breather	-
20	R569246	1	Fuel Hose	Vent
21	H217849	1	Fitting	-
22	H112567	2	Plate	-
23	R202160	2	Clamp	-
24	RE594128	1	Line	Fuel Supply, Rear
25	R569370	1	Hose	Fuel Return
26	Z81375	4	Block Clamp	-
27	R56101	2	Clip	-
28	R569371	1	Hose	Fuel Supply
29	14M7298	6	Flange Nut	M8
30	R184863	6	Hose Clamp	-
31	19M7800	4	Screw	M8 X 50
32	T43348	2	Clamp	-
33	R106825	1	Screw	M8 X 50
34	T27550	1	Clip	-
35	R216838	1	Screw	-
36	RE258807	2	Tie Band	-
37	57M9860	3	Clamp	-
38	19M7866	3	Screw	M8 X 20
39	RE584527	1	Pipe Plug	-
40	R561789	1	Hose	Fuel Supply
41	R558020	1	Fitting	-
42	AT387542	1	Filter	Fuel Filter Assembly
43	L41726	2	Pipe Plug	-
44	51M7042	4	O-Ring	13.300 X 2.200 mm
45	R571629	1	Bracket	-
46	19M7868	2	Screw	M8 X 30
47	R571651	1	Fuel Hose	Supply to Filter
48	R571650	1	Fuel Hose	Filter Supply and Return
49	RE595242	3	Clamp	-
50	AT365869	1	Filter Element	-
51	R501388	1	Packing	-
52	R525910	1	Packing	-
53	AT387545	1	Sediment Bowl	-
54	R501632	1	Packing	-
55	51M7097	1	O-Ring	18 X 2.500 mm

Fuel Line, W/ Water Separator, T2/ T3 Engine
