Открытый узел

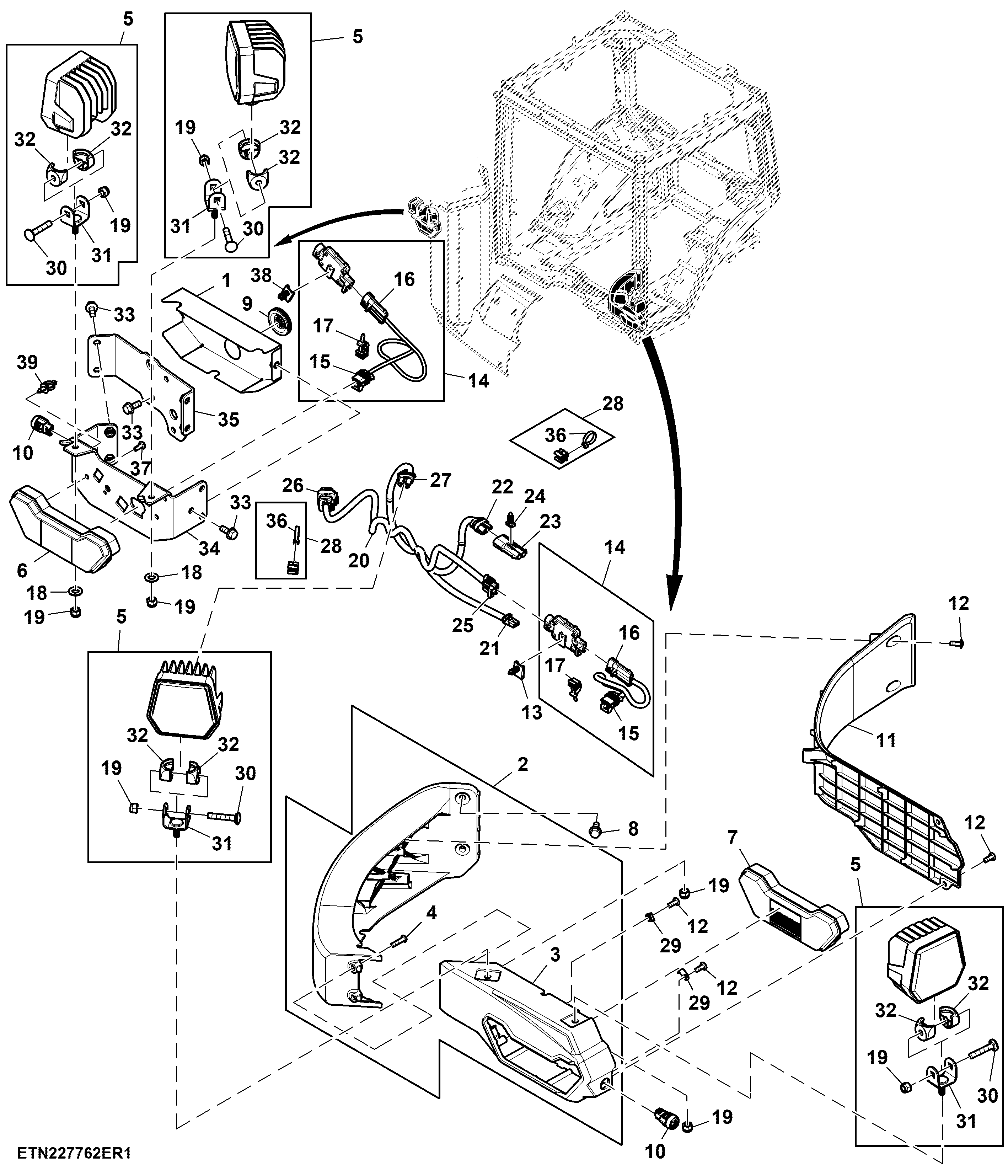

Front Midbody Flood Lights, 4 LED, W/ Midbody Marker Lights (For EAEU)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE596262	1	Bracket	-
2	RE594341	1	Bracket	Light Mount, LH Assembly
3	-	1	Part 3	Light Mount, LH Outer, ORDER RE594341
4	21M7631	2	Screw	M6 X 25
5	RE593795	4	Floodlamp	LED Pedestal Mount
6	RE592942	1	Lamp	13.5 V, Front Position RH
7	RE592943	1	Lamp	13.5 V, Front Position LH
8	19M10655	2	Screw	M8 X 30
9	R565827	1	Grommet	-
10	RE592800	2	Plug	-
11	R569651	1	Cover	-
12	R194506	8	Screw	-
13	57M9939	1	Elec. Connector Accessory	-
14	RE590506	2	Sensor Kit	LED Light Dongle, ORDER TA19218
14	TA19218	2	Sensor Kit	LED Light Dongle
15	57M7255	2	Elec. Connector Housing	-
15	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
16	57M7257	2	Elec. Connector Housing	-
16	RWA11082	1	Repair Wire Assembly	Cavity A, B, C
17	57M9229	2	Clip	-
18	24M7271	2	Washer	10.500 X 20 X 2 mm
19	14M7847	8	Lock Nut	M8
20	RE593477	1	Wiring Harness	Left Midbody Lights, W/ Position Lights
21	57M14930	1	Elec. Connector Housing	E328, Side Light
21	57M14931	2	Elec. Connector Terminal	Cavity 1, 2
22	57M8839	1	Elec. Connector Housing	E226, Light Work Beltline Front Outer Left
22	57M8129	1	Elec. Connector Terminal	-
22	RWA11089	1	Repair Wire Assembly	Cavity A, B
23	57M8958	1	Elec. Connector Housing	-
23	57M8129	1	Elec. Connector Terminal	-
24	57M9555	1	Clip	-
25	57M7255	1	Elec. Connector Housing	E176, Light Turn Marker Beltline Left
25	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
25	57M7290	1	Elec. Connector Accessory	-
26	57M9786	1	Elec. Connector Housing	XX172-2, Left Midbody Lights To Roof Interconnect
26	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
27	57M8839	2	Elec. Connector Housing	E129, Light Work Beltline Front Inner Left
27	RWA11089	1	Repair Wire Assembly	Cavity A, B
27	57M8129	1	Elec. Connector Terminal	-
28	AH225364	2	Clip	-
29	R569996	3	Bracket	Position Light
30	03M7369	4	Bolt	M8 X 45
31	R571006	4	Mounting Parts	-
32	R571007	8	Mounting Parts	-
33	19M10365	8	Screw	M8 X 20
34	RE596261	1	Bracket	Front Light Bracket
35	RE596125	1	Bracket	Mid Light Spacer Bracket
36	R44302	1	Tie Band	-
37	R263172	2	Screw	-
38	57M9940	1	Elec. Connector Accessory	-
39	RE258807	1	Tie Band	-

Front Midbody Flood Lights, 4 LED, W/ Midbody Marker Lights (For EAEU)

Нет текстового описания
