Wiring Harness, Selective Control Valve, 6 Rear SCV, W/ Hitch ( - 927000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE596790	1	Chassis Wiring Harness	SUB FOR RE596048
2	19M7865	1	Screw	M8 X 16
3	19M7866	1	Screw	M8 X 20
4	57M10092	4	Elec. Connector Accessory	-
5	57M10183	1	Elec. Connector Accessory	-
6	57M10299	1	Elec. Connector Housing	XX016-1, Trailer Lighting Connection
6	RWA11137	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8
6	57M8572	2	Elec. Connector Cavity Plug	Cavity 9, 10
7	RWA11058	1	Repair Wire Assembly	Cavity 2, 4
7	R78069	2	Elec. Connector Cavity Plug	Cavity 1, 3
7	57M8016	1	Elec.Connect Locking Device	-
7	57M10530	1	Elec. Connector Housing	A914, Breakway ISO Bus
8	57M10638	1	Elec. Connector Accessory	-
9	57M11354	1	Elec. Connector Housing	A704_CAP, Dustcap
10	57M11897	9	Elec. Connector Accessory	-
11	57M12228	1	Elec. Connector Accessory	-
12	57M13605	1	Elec. Connector Housing	XX183-2, Rear to Main Interconnect
12	57M14774	1	Elec. Connector Seal	Cavity A3
12	57M12786	1	Elec. Connector Terminal	Cavity B3
12	57M10789	34	Elec. Connector Cable Seal	Cavity B1, B4, B5, B7, B9, B10, B12, C1, C2, C5, C6, C7, C8, C9, C10, C11, C12, D1, D2, D4, D5, D6, D7, D8, D11, D12, E3, E8, E9, F1, F6, F8, F9, F12
12	RWA11128	1	Repair Wire Assembly	Cavity A1, A2, G1, G2, G3
12	RWA11126	1	Repair Wire Assembly	Cavity B2, B6, B8, B11, C3, C4, D3, D9, D10, E1, E2, E4, E5, E6, E7, E10, E11, E12, F2, F3, F4, F5, F7, F10, F11
13	57M13652	1	Elec. Connector Housing	X221, Implement Connector, USE WITH RE596048
13	57M15825	1	Elec. Connector Housing	X221, Implement Connector, USE WITH RE596790
13	57M7614	2	Elec. Connector Terminal	Cavity 1, 3
13	57M8593	2	Elec. Connector Terminal	Cavity 2, 4
14	57M13948	1	Elec. Connector Accessory	-
15	57M7254	1	Elec. Connector Housing	XX014_CAP, Backup Alarm Cap
16	57M7256	1	Elec. Connector Housing	XX014-1, Back-Up Alarm
16	RWA11082	1	Repair Wire Assembly	Cavity A, B
17	57M7567	1	Elec. Connector Terminal	XGND4, IBBC Ground
18	57M7760	1	Electrical Connector Assy	XX186-2, IBBC Power
19	57M8908	1	Clip	-
20	57M9498	1	Elec. Connector Housing	A701, SCV 1 Valve
20	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
21	57M9801	1	Elec. Connector Housing	XX790-1_CAP, Cap
22	57M9805	1	Elec. Connector Housing	XX790-1, Hydraulic Trailer Brake Jumper
22	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11
22	57M9814	1	Elec. Connector Cavity Plug	Cavity 12
23	57M9844	6	Elec. Connector Accessory	-
24	57M9940	1	Elec. Connector Accessory	-
25	R568836	1	Bracket	-
26	R78053	1	Electrical Connector Assy	S549_CAP, Cap
27	RE12363	1	Electrical Connector Assy	S549, Implement Switch
27	RWA11147	1	Repair Wire Assembly	Cavity A, B
28	RE258807	4	Tie Band	-
29	57M9498	1	Elec. Connector Housing	A702, SCV 2 Valve
29	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
30	57M9498	1	Elec. Connector Housing	A703, SCV 3 Valve
30	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
31	57M9498	1	Elec. Connector Housing	A800, Hitch Valve
31	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
32	57M9498	1	Elec. Connector Housing	A704, SCV 4 Valve
32	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
33	57M9498	1	Elec. Connector Housing	A706, SCV 6 Valve
33	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
34	57M9498	1	Elec. Connector Housing	A705, SCV 5 Valve
34	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
35	57M11354	1	Elec. Connector Housing	A706_CAP, Dustcap
36	57M11354	1	Elec. Connector Housing	A705_CAP, Dustcap

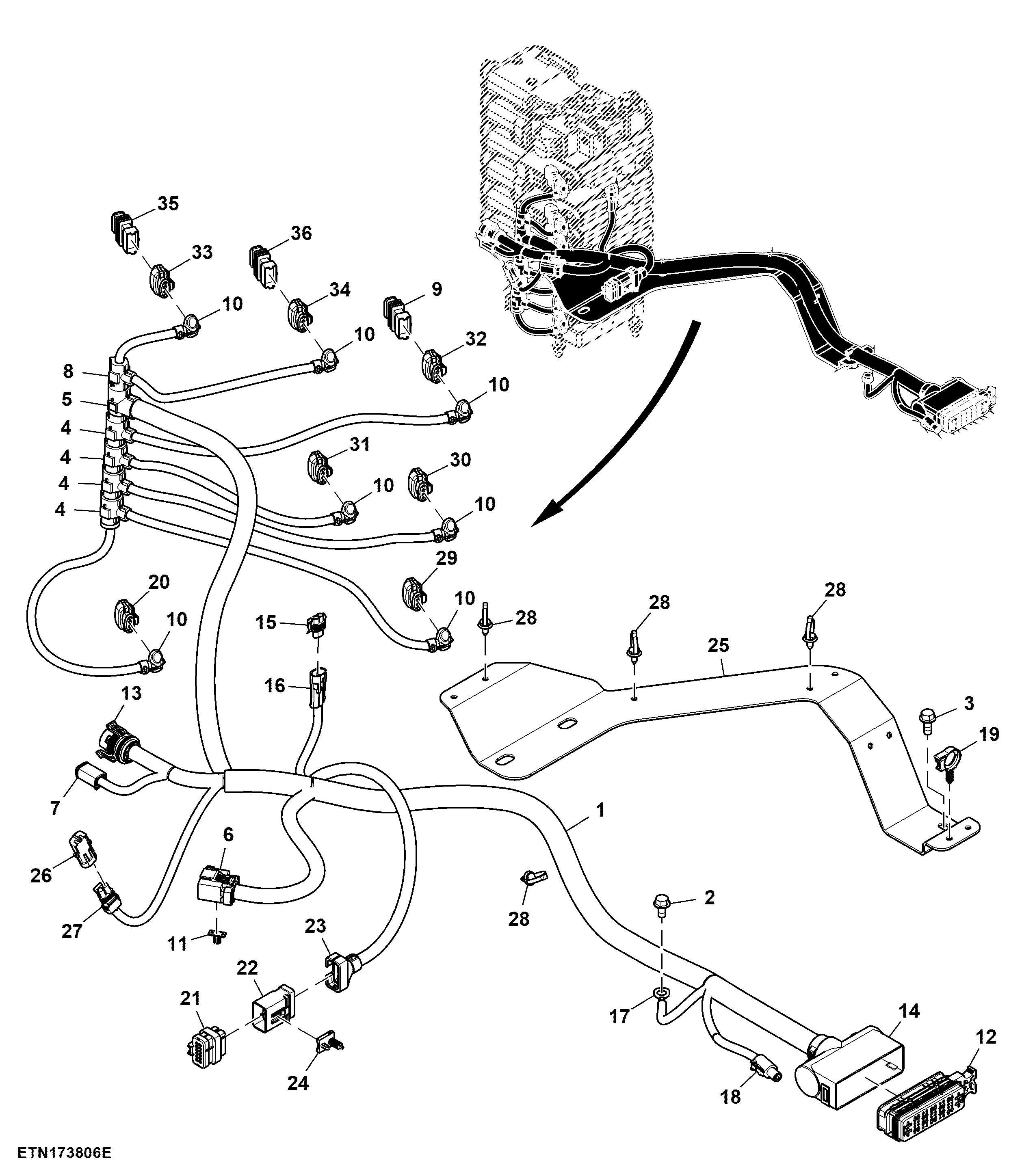

Wiring Harness, Selective Control Valve, 6 Rear SCV, W/ Hitch ( - 927000)
