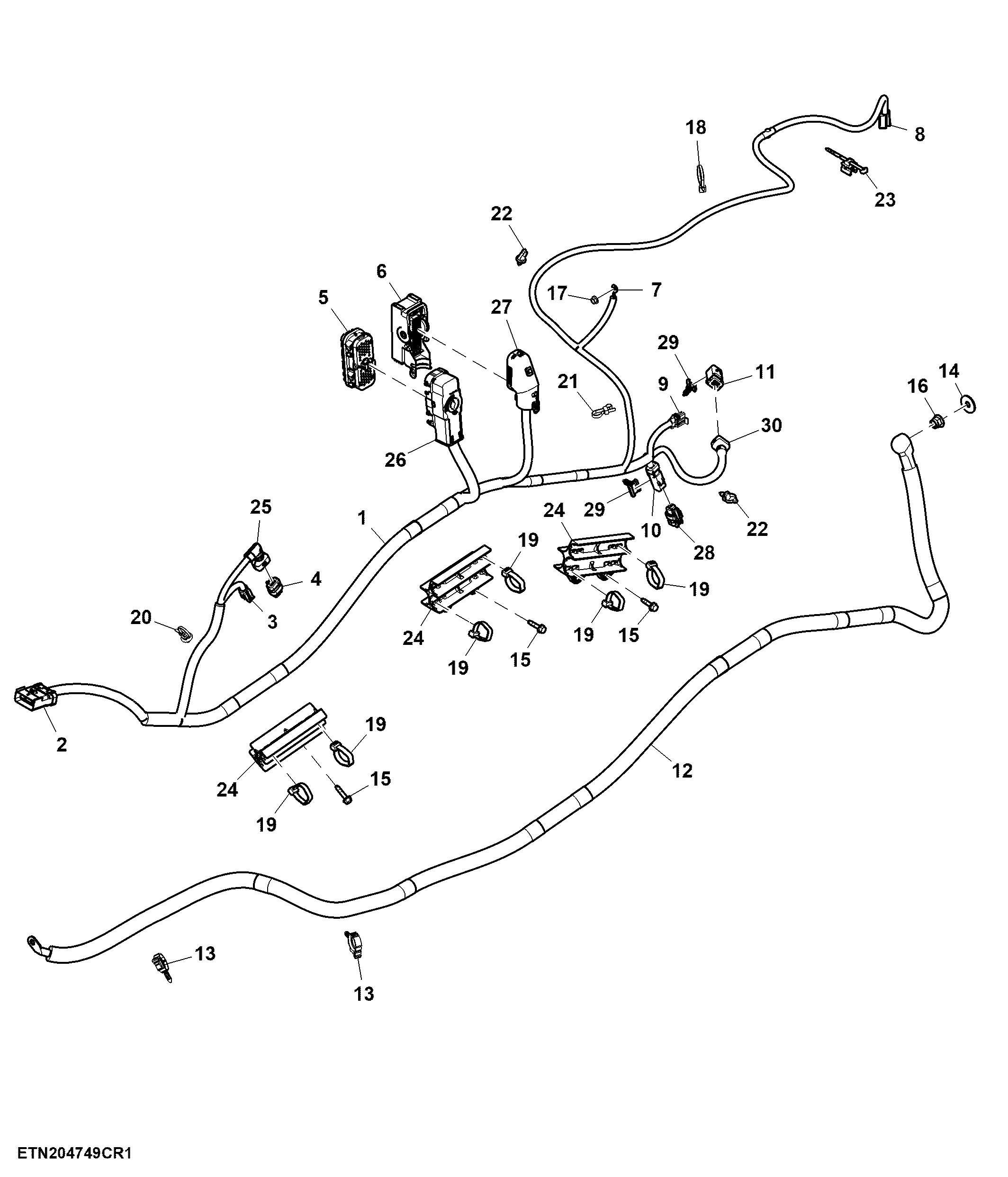

Chassis Wiring Harness, T2/ T3 Engine ( - 927000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TA19334	1	Chassis Wiring Harness	-
1	RE596053	1	Chassis Wiring Harness	ORDER TA19334
2	RWA11136	1	Repair Wire Assembly	Cavity 1, 2, 3, 5, 7, 8, 10, 13
2	57M10298	1	Elec. Connector Housing	Engine Chassis to Main Interconnect, XX182-2
3	57M7850	1	Elec. Connector Housing	Compressor Inlet Temperature Sensor, B5214
3	RWA11084	1	Repair Wire Assembly	Cavity A, B
4	57M9783	1	Elec. Connector Housing	Air Intake Pressure Sensor, B5112
4	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
5	RE538505	1	Elec. Connector Accessory	Engine Control Unit, A5505-3
5	RWA11027	1	Repair Wire Assembly	Cavity 3, 1, 2, 15, 18, 7, 33, 49, 34, 25, 22, 28, 30, 29
6	RWA11042	1	Repair Wire Assembly	Cavity 7
6	RWA11045	1	Repair Wire Assembly	Cavity 2, 4, 6, 5, 3, 1
6	57M11866	1	Elec. Connector Housing	Engine Harness Interconnect, XX5098-1
7	57M8873	1	Elec. Connector Terminal	Alternator, G301-2
8	57M8812	1	Elec. Connector Housing	Auto Ether Solenoid, Y5018
8	RWA11076	1	Repair Wire Assembly	Cavity A, B
9	57M7309	1	Elec. Connector Housing	A/C Comp Cluth, S501
9	57M7306	1	Elec.Connect Locking Device	-
9	RWA11089	1	Repair Wire Assembly	Cavity B, A
10	57M9776	1	Elec. Connector Housing	Terminator Vehicle CAN Chassis, A912
10	RWA11023	1	Repair Wire Assembly	Cavity 1, 2
11	57M9791	1	Elec. Connector Housing	Variable Fan Speed, Y5005
11	RWA11023	1	Repair Wire Assembly	Cavity 1, 3, 5
12	RE596537	1	Battery Cable	-
13	57M9206	3	Clip	-
14	24M7106	1	Washer	10 X 18 X 2.500 mm
15	R569884	8	Cap Screw	-
16	14M7400	1	Lock Nut	M10
17	14M7375	1	Flange Nut	M5
18	R44302	2	Tie Band	-
19	R567146	24	Tie Band	-
20	RE566207	1	Tie Band	-
21	57M10421	1	Elec. Connector Accessory	-
22	RE258807	3	Tie Band	-
23	AH225363	1	Clip	-
24	R568834	4	Block Clamp	-
25	57M9850	1	Elec. Connector Accessory	-
26	R528122	1	Elec. Connector Accessory	-
27	57M11864	1	Elec. Connector Accessory	-
28	57M11134	1	Elec. Connector Housing	-
29	57M9940	2	Elec. Connector Accessory	-
30	57M9841	1	Elec. Connector Accessory	-

Chassis Wiring Harness, T2/ T3 Engine ( - 927000)
