Большое обновление пильных узлов

Смотреть

Открытый узел

Cable, 1 Connector, Single Coupler, Attachment

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BRE10570	1	Cable	-
2	R572241	1	Plate	-
3	19M7576	1	Screw	M10 X 30
4	19M7800	2	Screw	M8 X 50
5	RE597472	1	Line	-
6	57M13304	1	Clamp	-
7	H114876	2	Clamp	-
8	RE596015	1	Line	Coolant Return
9	T77858	5	O-Ring	-
10	RE597310	1	Line	Cooling Line Inverter 1 To Inverter 2
11	RE597726	1	Bracket	-
12	R573025	1	Fitting	-
13	51M7045	4	O-Ring	19.300 X 2.200 mm
14	RE597736	1	Bracket	-
15	UC11648	2	Bolt	-
16	R570297	1	Retainer	-
17	RE596783	1	Electrical Connector Assy	-
18	40M7040	1	Snap Ring	-
19	R572291	1	Bolt	-
20	RE597456	1	Chassis Wiring Harness	-
21	RE597786	1	Electrical Connector Assy	-
22	RE258807	14	Tie Band	-
23	19M7775	2	Screw	M6 X 16
24	19M7784	6	Screw	M10 X 20
25	R573067	1	Shield	-
26	R568252	1	Half Clamp	-
27	R568251	1	Half Clamp	-
28	19M7865	2	Screw	M8 X 16
29	R568659	8	Half Clamp	-
30	RE597388	1	Chassis Wiring Harness	-
31	57M9940	2	Elec. Connector Accessory	-
32	57M8910	1	Clip	-
33	57M11531	1	Elec. Connector Housing	Inverter PD400 Transmission - J1, A722-1
33	RWA11053	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 9, 10, 19, 25, 32, 33, 39, 40
34	57M11531	1	Elec. Connector Housing	Inverter PD400 Transmission J1, A721-1
34	RWA11053	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 21, 22, 23, 24, 26, 27, 28, 31, 37, 38, 39, 40
35	57M9776	1	Elec. Connector Housing	Terminator CAN Inverter 2, A726
35	RWA11023	1	Repair Wire Assembly	Cavity 1, 2
36	57M9730	1	Elec. Connector Housing	-
36	RWA11056	1	Repair Wire Assembly	Cavity 1, 2
37	RE597392	1	Line	FLB To Inverter Pump
38	19M7801	4	Screw	M8 X 60
39	14M7273	8	Nut	M8
40	19M7560	40	Cap Screw	M6 X 16
41	44M7163	2	Dowel Pin	-
42	19M7164	8	Cap Screw	M8 X 50
43	PH53240824	1	Safety Sign	-
44	PH53240825	1	Safety Sign	-
45	PH53240826	1	Safety Sign	-
46	PH60239732	1	Housing	-
47	PH60242714	2	Pad	-
48	PH60239733	1	Cover	-
49	PH60239734	1	Electrical Conductor	-
50	PH81238269	4	Screw	-
51	PH60239800	1	Gasket	-
52	PH85239505	1	Inverter	-
53	PH60240432	1	Cover	-
54	PH60228264	2	O-Ring	-
55	PH98234649	1	Breather	-
56	T319986	1	Label	-
57	57M11134	1	Elec. Connector Housing	-
58	57M9220	1	Elec. Connector Housing	Inverter Harness To eIVT Transmission Interconnect, XX332-2
58	RWA11103	1	Repair Wire Assembly	Cavity A, F
58	RWA11098	1	Repair Wire Assembly	Cavity B, C, E, J, K
59	57M9844	2	Elec. Connector Accessory	-
60	57M9802	1	Elec. Connector Housing	E-Machines Jumper Interconnect 2, XX334-2
60	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11
61	57M9726	1	Elec. Connector Housing	VR1.2 Interlock 1, XX801-1
61	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
62	57M15493	1	Elec. Connector Accessory	-
63	57M9801	1	Elec. Connector Housing	E-Machines Jumper Interconnect 1, XX333-2
63	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11
64	19M7866	11	Screw	M8 X 20

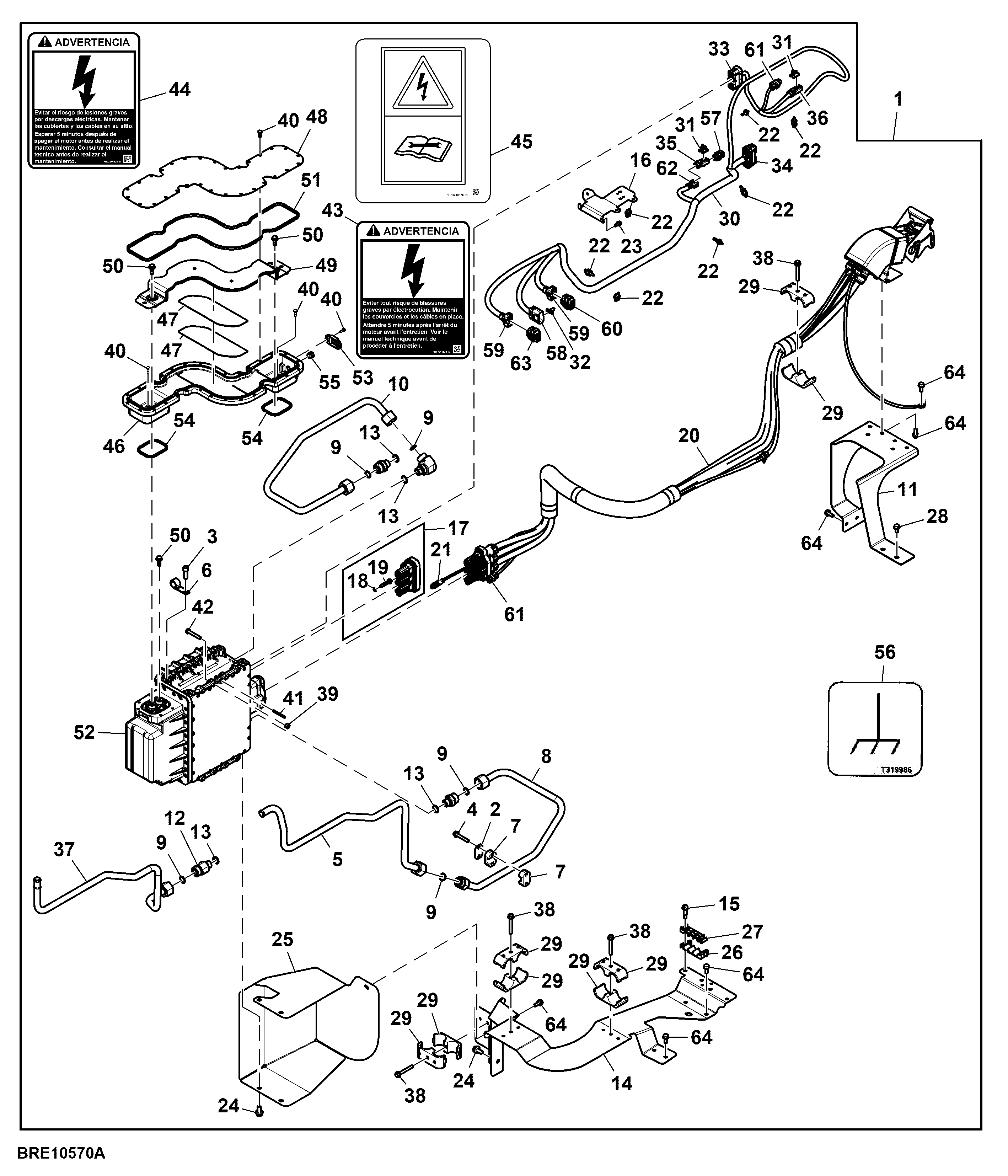

Cable, 1 Connector, Single Coupler, Attachment
