Wiring Harness, Chassis, T2 / T3 Engine (2/2) ( - 927000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE596750	1	Chassis Wiring Harness	-
2	RE590796	1	Wiring Harness	-
3	RE590797	1	Wiring Harness	-
4	57M10155	2	Elec. Connector Accessory	-
5	RWA11137	1	Repair Wire Assembly	Cavity 1, 2, 3, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14
5	57M10297	1	Elec. Connector Housing	XX180-1, Main To Hood Interconnect
6	57M10302	1	Elec. Connector Housing	XX570-1, Chassis To Power Module Relay Harness Interconnect
6	RWA11136	1	Repair Wire Assembly	Cavity 1, 2, 3, 5, 6
7	57M10308	1	Elec. Connector Accessory	-
8	57M10367	1	Elec. Connector Housing	A570-2, MECA Rear 2 Controller-J2
8	RWA11030	1	Repair Wire Assembly	Cavity 7, 10, 9, 19, 22, 23, 24, 11, 12, 35, 34, 20, 32, 33, 45, 25, 13, 28, 14, 26, 37, 40, 38, 39
8	RWA11032	1	Repair Wire Assembly	Cavity F2, F3, G1, G4
8	RWA11032	1	Repair Wire Assembly	Cavity 6, 53, 18, 29, 30, 41, 42
9	57M10401	1	Elec. Connector Accessory	-
10	57M10613	1	Elec. Connector Housing	-
11	57M10614	1	Elec. Connector Housing	A570-1, MECA Rear 2 Controller-J1
11	RWA11030	1	Repair Wire Assembly	Cavity A1, F1, H3, A3, A2, F2, D1, B2, B1, G1, G2, J3, D4, D2, F4, J2, C1, G4, H1, K2, E2, C2, E4, H2, B3, K1
11	RWA11032	1	Repair Wire Assembly	Cavity L1, L2, L4, M3, M4, M1
12	57M11374	2	Elec. Connector Accessory	-
13	57M12139	2	Clamp	-
14	57M13948	1	Elec. Connector Accessory	-
15	57M14406	1	Elec. Connector Terminal	KSW2-OUT, Power Module - Alternator
16	RWA11127	1	Repair Wire Assembly	Cavity B2, B4, B6, B8, B11, C1, C3, C4, C10, D3, D4, D7, D9, D10, E1, E2, E4, E5, E6, E7, E10, E11, E12, F2, F3, F4, F5, F7, F10, F11
16	RWA11129	1	Repair Wire Assembly	Cavity A1, A2, G1, G2, G3
16	57M14781	1	Elec. Connector Housing	XX183-1, Main To Rear Interconnect
17	57M7254	1	Elec. Connector Housing	B5009, Engine Coolant Loss Sensor
17	57M9712	1	Elec. Connector Accessory	-
17	RWA11083	1	Repair Wire Assembly	Cavity A, B
18	57M7255	1	Elec. Connector Housing	X289, Diagnostic Connection
18	57M7290	1	Elec. Connector Accessory	-
18	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
19	57M7257	1	Elec. Connector Housing	X289_CAP
19	57M7290	1	Elec. Connector Accessory	-
20	57M7567	1	Elec. Connector Terminal	XGND2A, Single Pt Grnd_1
21	57M7567	1	Elec. Connector Terminal	XGND2B, Single Pt Grnd_2
22	57M7567	1	Elec. Connector Terminal	XGND2D, Single Pt Grnd_3
23	57M7567	1	Elec. Connector Terminal	XGND2C, Single Pt Grnd_4
24	57M7687	1	Elec. Connector Housing	S130, Service Light Switch
24	57M7290	1	Elec. Connector Accessory	-
24	RWA11083	1	Repair Wire Assembly	Cavity A, C
25	57M7761	1	Elec. Connector Housing	XX186-1, IBBC Power
25	57M7613	1	Elec. Connector Terminal	Cavity 1
26	RWA11045	1	Repair Wire Assembly	Cavity 58, 60, 61
26	RWA11042	1	Repair Wire Assembly	Cavity 8, 11, 21, 22, 1, 2, 3, 4, 5, 7, 14, 34, 35, 30, 12, 43, 44, 23, 26, 27, 28, 29, 38, 39, 41, 56
26	57M8281	1	Elec. Connector Housing	XX330-1, Main To Transmission Interconnect
26	57M11996	1	Elec. Connector Accessory	-
27	57M8871	1	Elec. Connector Terminal	XGND3, Fuel Filler Neck
28	57M8937	1	Elec. Connector Terminal	M301, Ground
29	57M9772	1	Elec. Connector Housing	B303, Fuel Level Primary
29	RWA11027	1	Repair Wire Assembly	Cavity 1, 2
30	57M9776	1	Elec. Connector Housing	XX060-1, Fuel Neck Ground
30	RWA11025	1	Repair Wire Assembly	Cavity 1
31	57M9789	1	Elec. Connector Housing	XX941-1, Hood Camera Interconnect
31	RWA11023	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
32	57M9792	1	Elec. Connector Housing	XX030-1, Main To Suspension Harness Interconnect
32	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7
33	57M9800	1	Elec. Connector Housing	XX181-1, Main To Front Harness Interconnect
33	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 10, 11, 12
34	57M9837	4	Elec. Connector Accessory	-
35	57M9842	1	Elec. Connector Accessory	-
36	57M9844	1	Elec. Connector Accessory	-
37	57M9940	4	Elec. Connector Accessory	-
38	AH225363	1	Clip	-
39	RE258807	34	Tie Band	-
40	57M10297	1	Elec. Connector Housing	XX182-1, Main To Engine Interconnect
40	RWA11137	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 13, 14
41	57M15586	1	Elec. Connector Housing	FEXX1, Front Load Center
41	57M15435	4	Elec. Connector Seal	Cavity 63, 64, 65, 66
41	RWA11045	1	Repair Wire Assembly	Cavity 8, 9, 10, 11, 20, 21, 22, 3, 4, 7, 13, 14, 15, 16, 53, 54, 35, 36, 42, 12, 41, 47, 48
41	57M10375	4	Elec. Connector Terminal	Cavity 63, 64, 65, 66
42	RE594063	1	Elec. Connector Accessory	-
43	57M7689	1	Fuse	10 A, FE07, Alternator
44	57M7689	1	Fuse	10 A, FE28, Rear2
45	57M7689	1	Fuse	10 A, FE30, Implement ECU
46	57M9772	1	Elec. Connector Housing	XX023-1, Chassis To Fuel Lever Sensor Interconnect
46	RWA11029	1	Repair Wire Assembly	Cavity 1, 2
47	57M7691	1	Fuse	20 A, FE02, ECU
48	RWA11029	1	Repair Wire Assembly	Cavity 1
48	57M9772	1	Elec. Connector Housing	XX060-2, Main Chassis Interconnect
49	57M7689	1	Fuse	10 A, FE100, Implement
50	57M7690	1	Fuse	15 A, FE05, Fuel Temp Pump
51	57M7690	1	Fuse	15 A, FE08, SBBA, SBBC
52	57M7690	1	Fuse	15 A, FE14, Autoether
53	SJ15808	1	Relay	20 A, KE14, Autoether
54	57M9772	1	Elec. Connector Housing	B692, Fuel Level Sensor
54	RWA11027	1	Repair Wire Assembly	Cavity 1, 2
55	57M9776	1	Elec. Connector Housing	XX023-2, Main Chassis Interconnect
55	RWA11025	1	Repair Wire Assembly	Cavity 1, 2

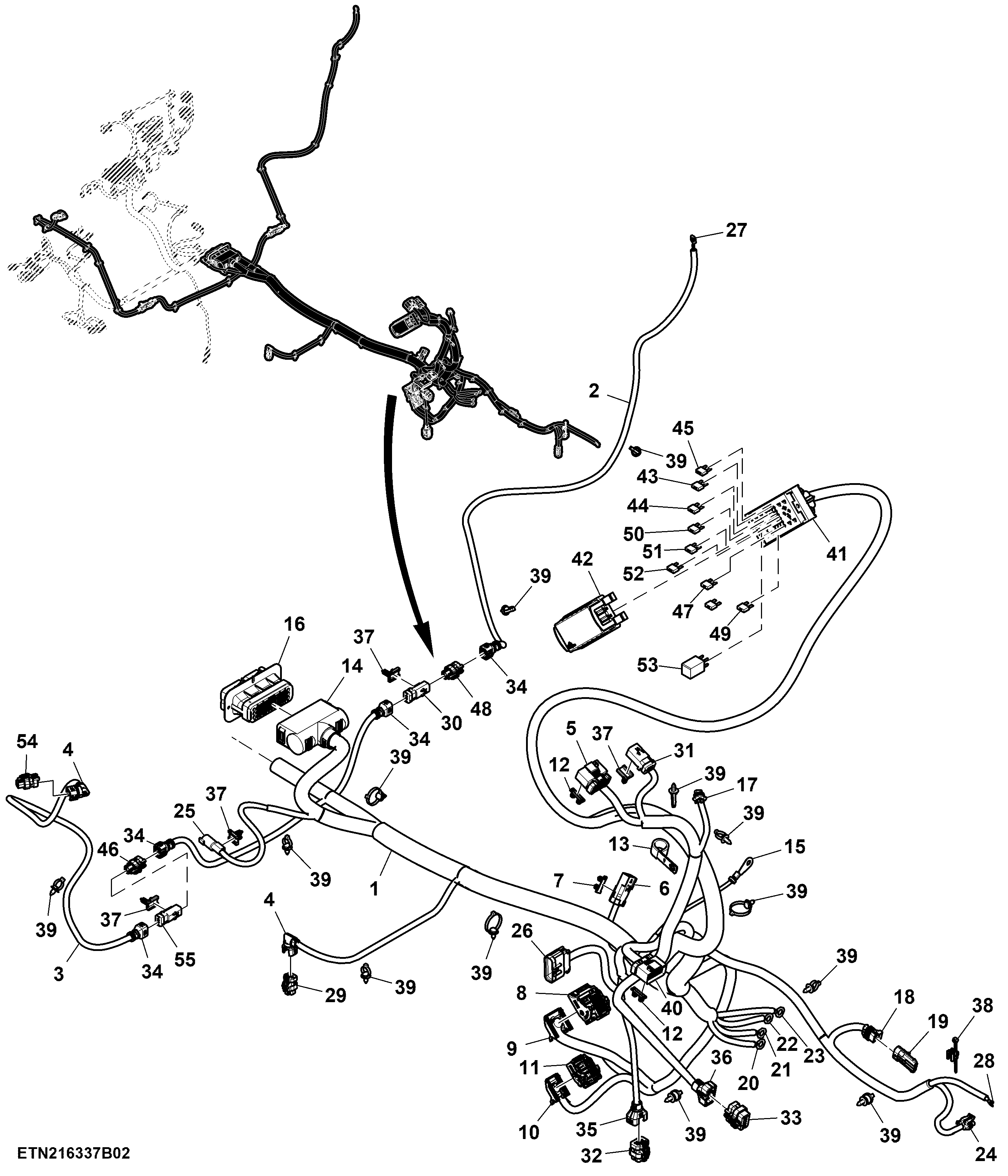

Wiring Harness, Chassis, T2 / T3 Engine (2/2) ( - 927000)
