Exhaust Pipe, Exhaust System, FT4/ Stage 5 Engine (927001 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R344091	1	Hose	Delta Pressure, DPF
2	R344090	1	Hose	Delta Pressure, DOC/DPF
3	RE304965	1	Clamp	-
4	RE588790	1	Clamp	-
5	AL170672	5	Clamp	-
6	R202160	2	Clamp	-
7	R56101	2	Clip	-
8	R230480	1	Radiator Hose	-
9	19M7866	13	Screw	M8 X 20
10	T162937	3	Clamp	-
11	RE540348	1	Clamp	-
12	19M7865	1	Screw	M8 X 16
13	M157364	1	Nut	-
14	19M7800	1	Screw	M8 X 50
15	19M10881	3	Screw	M6 X 12
16	DZ113102	1	Clip	-
17	R529510	1	Gasket	-
18	R529640	1	Gasket	-
19	R561026	1	Hose	Aspirator to Outlet
20	GX22456	25	Screw	-
21	R567559	1	Bracket	-
22	R136003	2	Washer	-
23	19M8849	2	Cap Screw	M6 X 70
24	14M7636	4	Flange Nut	M6
25	28H3419	2	Spacer	0.364" X 0.540" X 1-3/4"
26	37M7104	2	Screw	M6 X 30
27	R328028	1	Shield	-
28	DZ110621	1	Chemical Sensor	LGTH = 915 mm, NOx Sensor
29	57M10362	1	Clamp	-
30	DZ112080	1	Chemical Sensor	LGTH = 615 mm, NOx Sensor
31	DZ104791	1	DEF Dosing Injector	-
32	DZ112819	1	Gasket	-
33	TR118908	21	Clamp	-
34	R569434	1	Clamp	-
35	RE594445	1	Heat Shield	-
36	R571893	1	Seal	-
37	RE594855	1	Exhaust Pipe	-
38	RE567361	1	Clamp	-
39	RE595986	1	Clamp	-
40	RE595985	2	Clamp	-
41	RE595720	1	Exhaust Pipe	-
42	RE546719	1	Pressure Sensor	Delta Pressure
43	R313267	1	Clamp	-
44	R313276	1	Insulator	-
45	RE596673	1	Heat Shield	-
46	RE597006	1	Line	Pressure Line
47	R572892	1	Tube	-
48	RE597003	1	Line	Pressure Line
49	R572642	1	Bracket	-
50	R572592	1	Tube	-
51	DZ123016	1	Temperature Sensor	LGTH = 300 mm, Diesel Oxidation Catalyst
51	DZ123016	1	Temperature Sensor	LGTH = 300 mm, Diesel Particulate Filter
51	DZ123016	1	Temperature Sensor	LGTH = 730 mm, Selective Catalytic Reduction

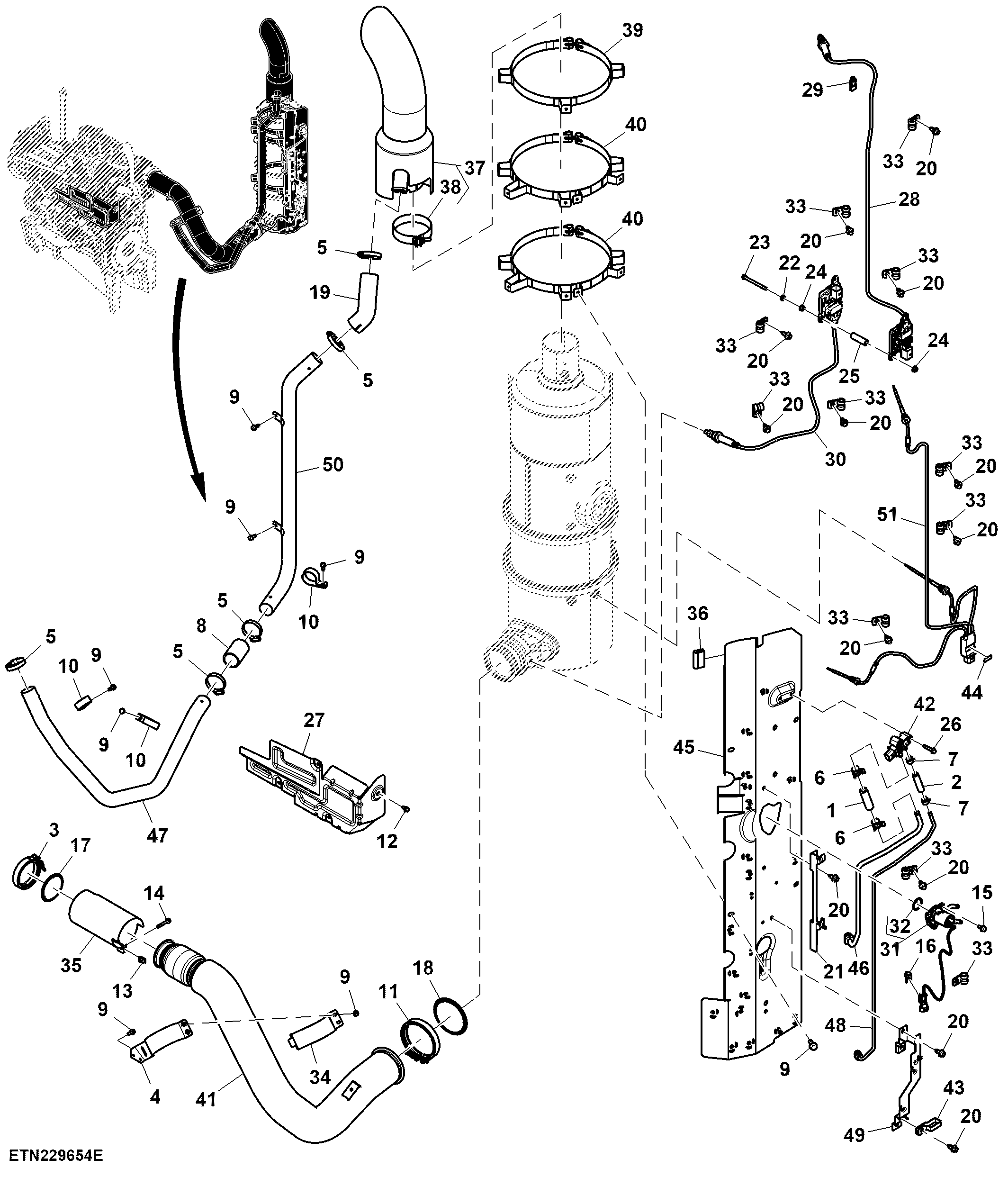

Exhaust Pipe, Exhaust System, FT4/ Stage 5 Engine (927001 - )
