Открытый узел

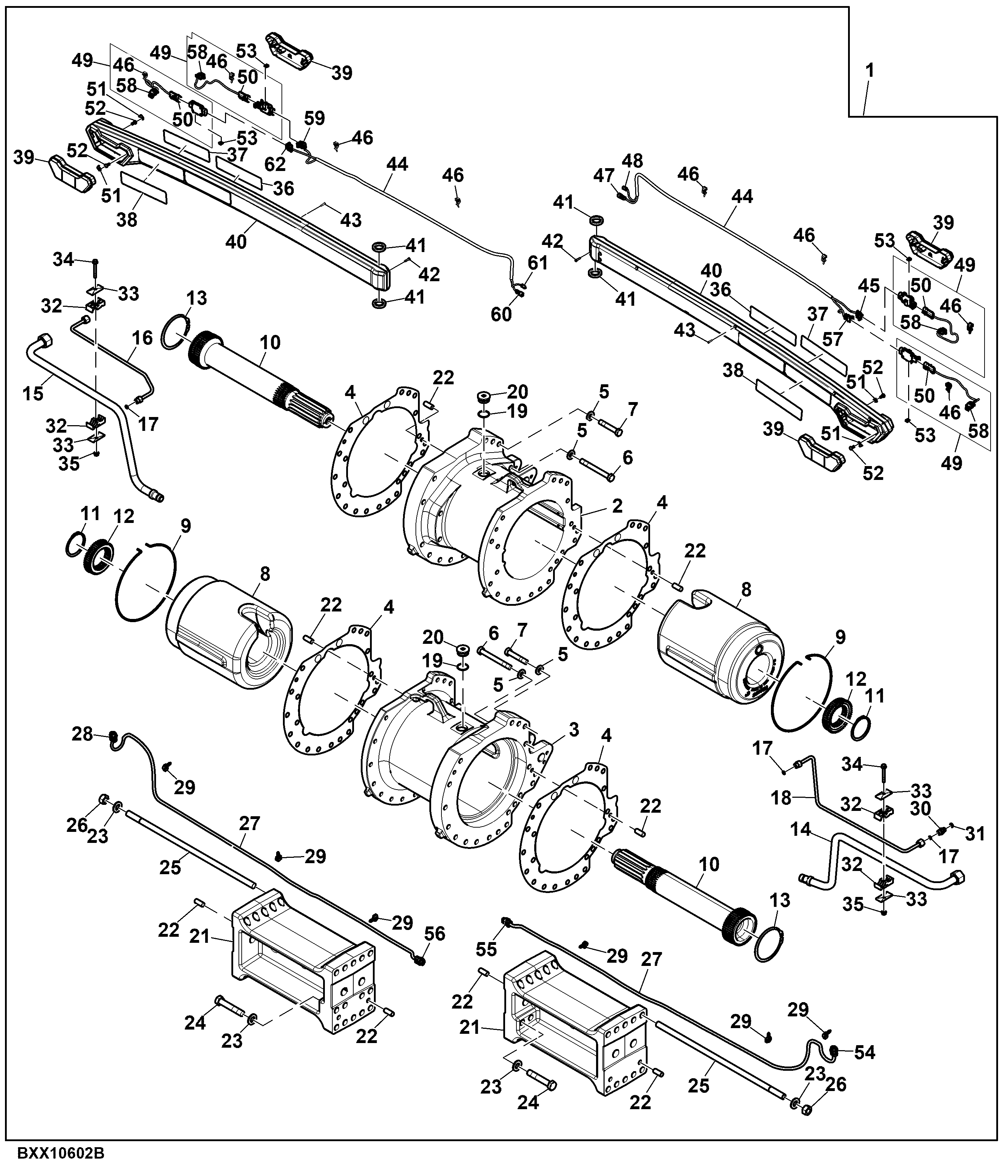

Attachment, Track Conversion Kit, 160” Axle

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BXX10602	1	Track Kit	-
2	R308474	1	Housing	LH
3	R308477	1	Housing	RH
4	RE566786	4	Gasket	-
5	24M7242	41	Washer	21.400 X 42 X 5 mm
6	19M9575	16	Cap Screw	M20 X 180
7	19M9413	25	Cap Screw	M20 X 110
8	RE308660	2	Tank	-
9	R309414	2	Snap Ring	-
10	R565096	2	Sun Gear	Z = 14
11	40M7273	2	Snap Ring	-
12	R315839	2	Hub	Z = 32
13	40M7125	2	Snap Ring	-
14	RE283826	1	Oil Line	EVAC LH Outer
15	RE283828	1	Oil Line	EVAC RH Outer
16	RE322910	1	Oil Line	Brake RH, INCLUDES T77613
17	T77613	3	O-Ring	-
18	RE322909	1	Oil Line	Brake LH, INCLUDES T77613
19	51M7063	2	O-Ring	44.600 X 2.900 mm
20	R163159	2	Drain Plug	-
21	R569059	2	Spacer	-
22	R54380	16	Dowel Pin	-
23	R283755	28	Washer	-
24	19M9136	8	Cap Screw	M20 X 110
25	R270526	20	Rod	-
26	R280636	20	Nut	-
27	RE593395	2	Sensor Wiring Harness	Tracks Tension Transducer, INCLUDES (8) 57M8903
28	57M9780	1	Elec. Connector Housing	Right Track Tension Sensor, B205
28	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
29	57M8903	16	Clip	-
30	38H5002	1	Adapter Fitting	INCLUDES 51M7041
31	51M7041	1	O-Ring	11.300 X 2.200 mm
32	R129325	8	Clamp	-
33	H112567	8	Plate	-
34	19M7802	4	Screw	M8 X 65
35	14M7298	4	Flange Nut	M8
36	JD5922	2	Reflector	Red-Orange
37	JD5920	2	Reflector	Red
38	JD5921	2	Reflector	Yellow
39	RE592939	4	Lamp	-
40	RE590495	2	Arm	-
41	R180671	4	Washer	-
42	21M7686	10	Screw	M5 X 20
43	37M7372	16	Screw	-
44	TA19464	2	Wiring Harness	Extremity Lights
44	RE595536	2	Wiring Harness	Extremity Lights, ORDER TA19464
45	57M7290	1	Elec. Connector Accessory	-
45	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
45	57M7255	1	Elec. Connector Housing	Light Turn Marker Extremity Rear Facing, E115
46	57M9229	12	Clip	-
47	57M7784	1	Electrical Connector Assy	Extremity In-Line 2, XX177-2
47	57M7723	1	Electrical Connector Assy	-
47	RWA11085	1	Repair Wire Assembly	Cavity A, B
48	57M7785	1	Elec. Connector Housing	Extremity In-Line 1, XX175-2
48	57M7724	1	Electrical Connector Assy	-
48	RWA11086	1	Repair Wire Assembly	Cavity A, B
49	RE592129	4	Sensor Kit	LED Light Dongle, ORDER TA19216
49	TA19216	4	Sensor Kit	LED Light Dongle
50	57M7257	4	Elec. Connector Housing	-
50	RWA11082	1	Repair Wire Assembly	Cavity A, B, C
51	R569996	12	Bracket	-
52	R263172	12	Screw	-
53	R566417	8	Clip	-
54	57M9780	1	Elec. Connector Housing	Left Track Tension Sensor, B204
54	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
55	57M9780	1	Elec. Connector Housing	Left Track Tension To Suspension Harness Interconnect, XX954-2
55	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
56	57M9780	1	Elec. Connector Housing	Right Track Tension To Suspension Harness Interconnect, XX955-2
56	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
57	57M7255	1	Elec. Connector Housing	Light Turn Marker Extremity Forward Facing, E116
57	57M7290	1	Elec. Connector Accessory	-
57	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
58	57M7255	4	Elec. Connector Housing	-
58	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
59	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
59	57M7290	1	Elec. Connector Accessory	-
59	57M7255	1	Elec. Connector Housing	Light Turn Marker Extremity Rear Facing, E117
60	57M7784	1	Electrical Connector Assy	Extremity In-Line 2, XX178-2
60	57M7723	1	Electrical Connector Assy	-
60	RWA11085	1	Repair Wire Assembly	Cavity A, B
61	57M7785	1	Elec. Connector Housing	Extremity In-Line 1, XX176-2
61	57M7724	1	Electrical Connector Assy	-
61	RWA11086	1	Repair Wire Assembly	Cavity A, B
62	57M7255	1	Elec. Connector Housing	Light Turn Marker Extremity Forward Facing, E118
62	57M7290	1	Elec. Connector Accessory	-
62	RWA11083	1	Repair Wire Assembly	Cavity A, B, C

Attachment, Track Conversion Kit, 160” Axle
