Wiring Harness Assembly, Engine / Alternator Cable, FT4 / Stage 5 Engine (927001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE598243	1	Chassis Wiring Harness	-
2	RE598157	1	Chassis Wiring Harness	-
3	RWA11130	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
3	57M9144	1	Elec. Connector Housing	Comp Inlet Humidity/Pressure/Temperature (CAN), B5500
4	57M9129	1	Elec. Connector Terminal	Engine Chassis/ATD Interconnect, XX003-1
4	57M8009	1	Elec.Connect Locking Device	-
4	RWA11058	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 10, 11, 12
5	57M11781	1	Elec. Connector Housing	Engine Chassis to Main Interconnect (DEF), XX184-1
5	RWA11137	1	Repair Wire Assembly	Cavity 2, 11, 12, 13, 14
5	RWA11145	1	Repair Wire Assembly	Cavity 3, 4, 5, 6, 7, 8, 9, 10, 15, 16, 17, 18, 19, 20, 21, 22
6	57M8873	1	Elec. Connector Terminal	Alternator, G301-2
7	57M8812	1	Elec. Connector Housing	Auto-Ether Solenoid, Y5018
7	RWA11076	1	Repair Wire Assembly	Cavity A, B
8	57M7306	1	Elec.Connect Locking Device	-
8	RWA11089	1	Repair Wire Assembly	Cavity A, B
8	57M7309	1	Elec. Connector Housing	A/C Comp Clutch, E5001
9	57M10298	1	Elec. Connector Housing	Engine Chassis to Main Interconnect, XX182-2
9	RWA11136	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14
10	57M9791	1	Elec. Connector Housing	Variable Speed Fan, Y5005
10	RWA11023	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
11	57M9776	1	Elec. Connector Housing	CAN Terminator, A912
11	RWA11023	1	Repair Wire Assembly	Cavity 1, 2
12	57M9780	1	Elec. Connector Housing	Start Aid Interconnect, XX5004-1
12	RWA11027	1	Repair Wire Assembly	Cavity 1, 3
13	57M9847	1	Elec. Connector Accessory	-
14	RWA11047	1	Repair Wire Assembly	Cavity 57, 58, 59, 60, 61, 62
14	57M15968	1	Elec. Connector Housing	Electronic Control Unit, A5505-3
14	RWA11044	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 7, 8, 11, 12, 13, 15, 16, 17, 18, 19, 20, 21, 23, 25, 27, 28, 29, 31, 32, 37, 38, 39, 43, 44, 46, 48, 51, 52, 53, 55
15	57M8738	1	Elec. Connector Accessory	-
16	57M9800	1	Elec. Connector Housing	JDPS Interconnect, XX5071-1
16	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 4, 5, 8, 9, 10, 12
17	57M14990	1	Elec. Connector Accessory	-
18	AH225363	1	Clip	-
19	RE258807	8	Tie Band	-
20	RE566207	1	Tie Band	-
21	57M9940	2	Elec. Connector Accessory	-
22	57M9841	1	Elec. Connector Accessory	-
23	57M10421	1	Elec. Connector Accessory	-
24	57M11799	1	Clip	-
25	R567146	25	Tie Band	-
26	RE596578	1	Battery Cable	-
27	57M9206	3	Clip	-
28	R568834	4	Block Clamp	-
29	R44302	2	Tie Band	-
30	R569884	8	Cap Screw	-
31	14M7375	1	Flange Nut	M5
32	14M7400	1	Lock Nut	M10
33	24M7106	1	Washer	10 X 18 X 2.500 mm
34	19M7862	1	Screw	M6 X 20
35	57M11134	1	Elec. Connector Housing	-
36	19M7866	2	Screw	M8 X 20
37	57M10362	1	Clamp	-
38	57M13296	2	Clamp	-
39	R568228	3	Clip	-

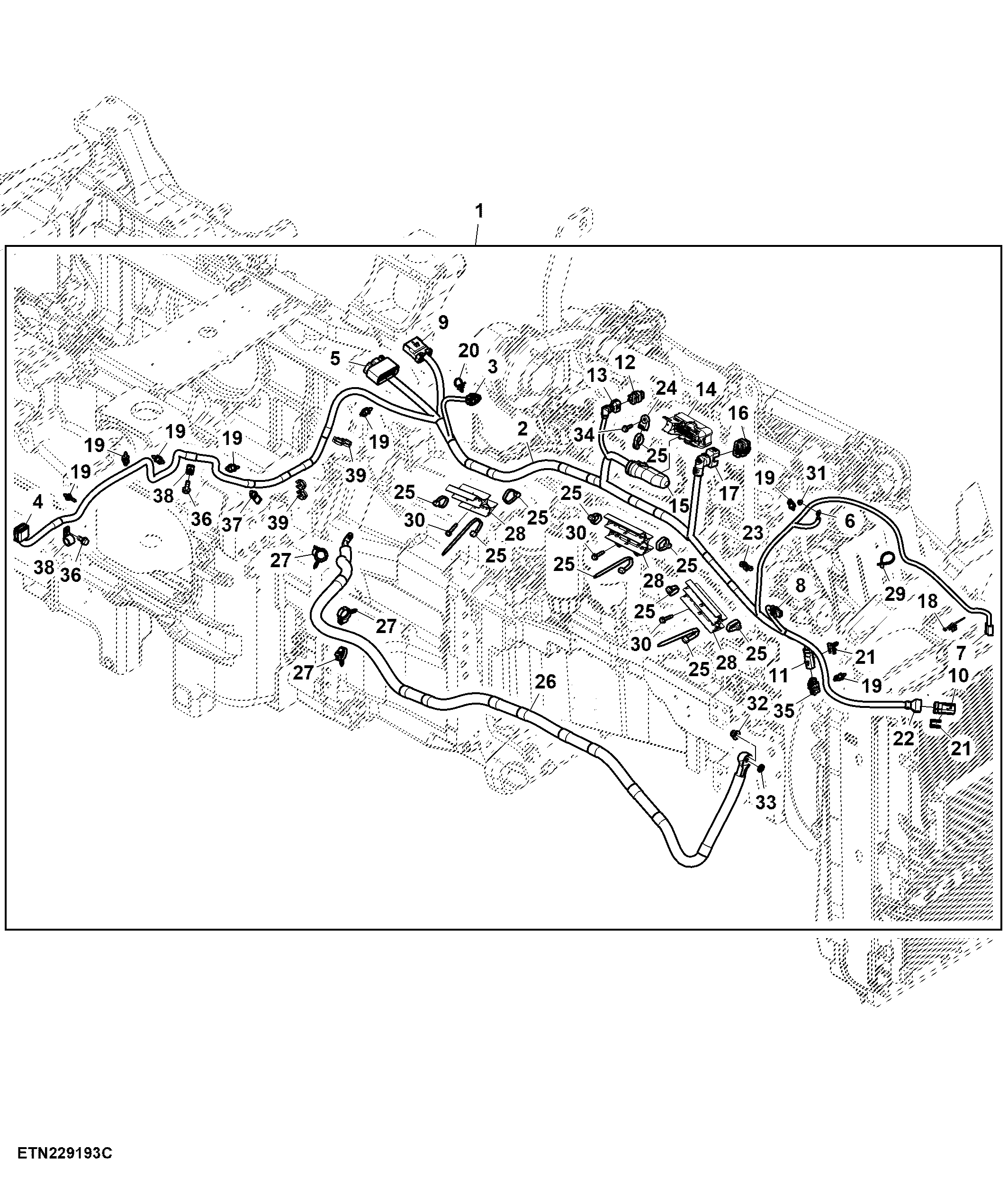

Wiring Harness Assembly, Engine / Alternator Cable, FT4 / Stage 5 Engine (927001 - )
