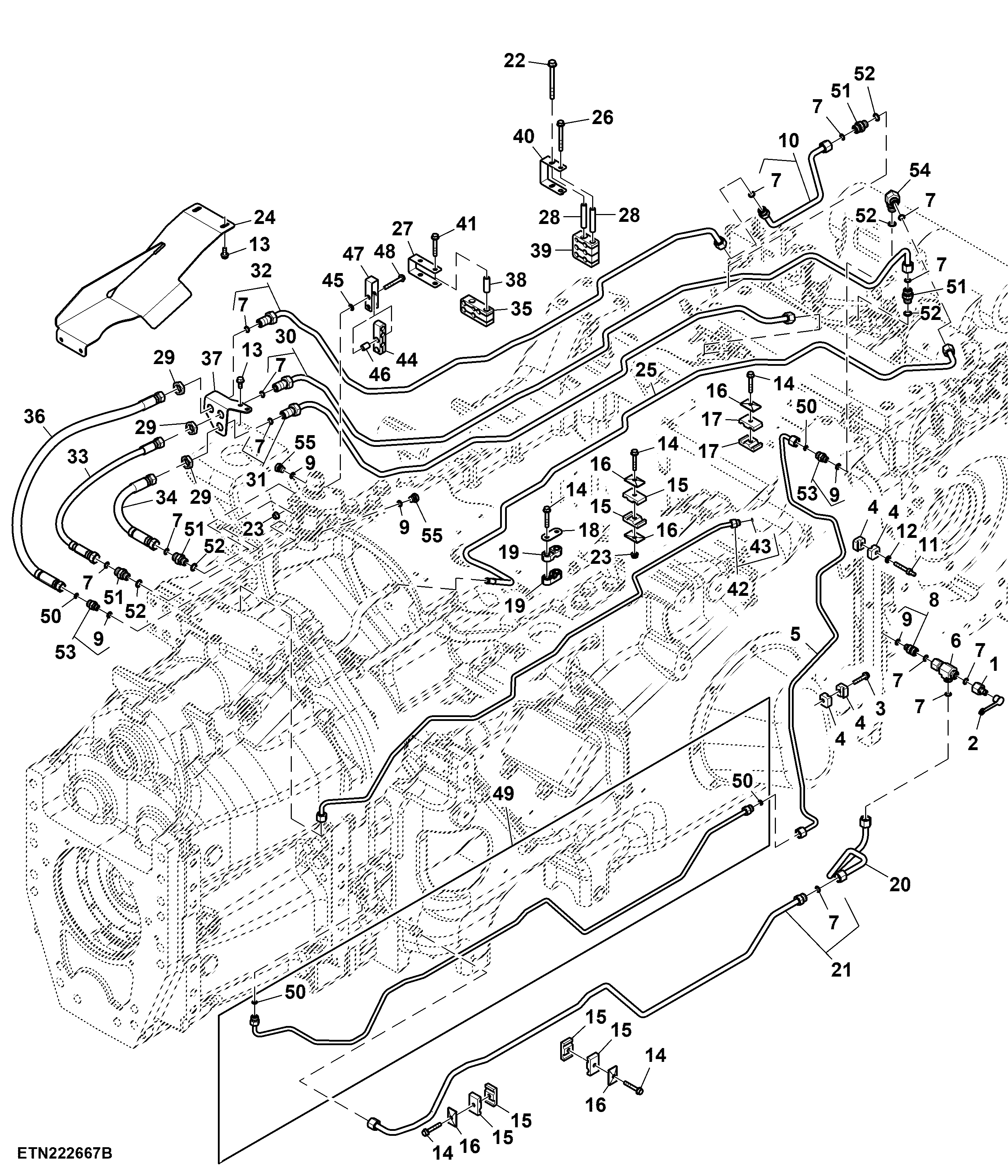

Oil Line, Rear Line Bundle (927001 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE43774	1	Diagnostic Coupling	-
2	R77175	1	Cover	-
3	19M7798	1	Screw	M8 X 40
4	H127589	4	Clamp	-
5	RE596329	1	Oil Line	Park Pump Off
6	38H5069	1	Tee Fitting	-
7	T77857	13	O-Ring	-
8	38H5009	1	Adapter Fitting	-
9	51M7041	5	O-Ring	11.300 X 2.200 mm
10	TA19261	1	Oil Line	Brake Work
11	R543476	1	Stud	-
12	24M7238	1	Washer	8.700 X 17 X 2 mm
13	19M7866	6	Screw	M8 X 20
14	19M7800	8	Screw	M8 X 50
15	H108291	10	Clamp	-
16	H121168	7	Plate	-
17	H135156	2	Clamp	-
18	R559986	1	Plate	-
19	R559987	2	Clamp	-
20	RE596330	1	Oil Line	PTO Supply
21	RE596327	1	Oil Line	PTO Supply
22	19M7913	1	Screw	M8 X 90
23	14M7298	3	Flange Nut	M8
24	R566819	1	Shield	-
25	RE594469	1	Oil Line	Vent
26	19M8039	1	Screw	M8 X 80
27	RE591572	1	Clamp	-
28	R565895	2	Bushing	-
29	38H5092	3	Nut	13/16"
30	RE591567	1	Oil Line	Brake Return
31	RE591568	1	Oil Line	Brake Supply
32	RE591570	1	Oil Line	Brake Work Line
33	RE586000	1	Hydraulic Hose	Brake Return
34	RE586005	1	Hydraulic Hose	Brake Supply
35	R566997	1	Block Clamp	-
36	RE586006	1	Hydraulic Hose	Brake Work Port
37	R566203	1	Bracket	-
38	R567003	2	Bushing	-
39	R565744	1	Block Clamp	-
40	RE590326	1	Clamp	-
41	19M7979	2	Screw	M8 X 55
42	RE597398	1	Line	Air Suspension Supply
43	T77814	1	O-Ring	-
44	R565894	1	Block Clamp	-
45	R280791	2	Push Nut	-
46	L153723	2	Spacer	-
47	R571997	1	Clamp	-
48	L219186	2	Screw	-
49	RE596328	1	Oil Line	Park Brake Pump Off
50	T77613	4	O-Ring	-
51	38H5003	4	Adapter Fitting	-
52	51M7043	5	O-Ring	15.300 X 2.200 mm
53	38H5002	2	Adapter Fitting	-
54	38H5017	1	Elbow Fitting	-
55	64M1003	2	Drain Plug	-
