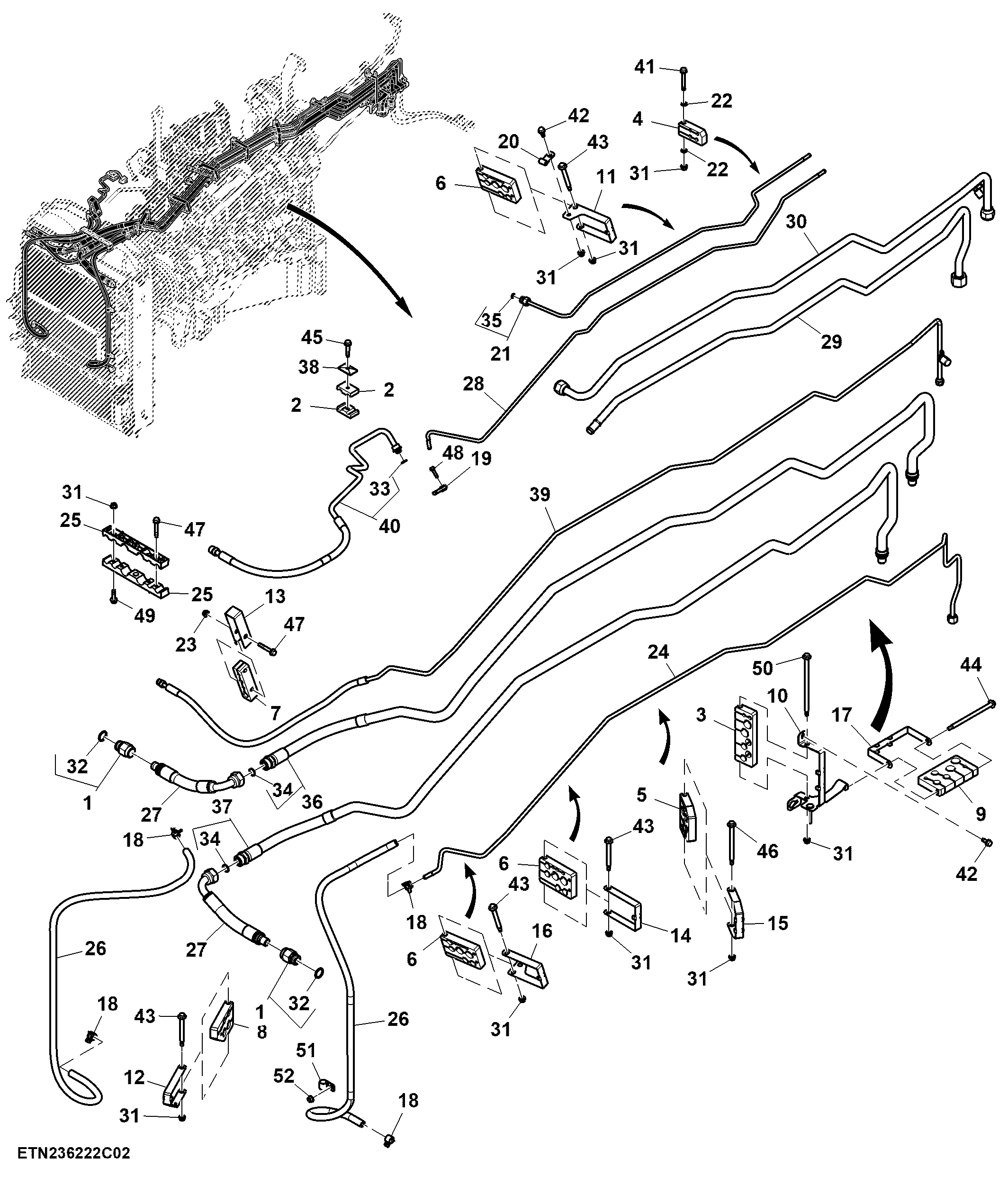

Line, Front Line Bundle, T2 Engine (2/2) (927001 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	62M1002	2	Adapter Fitting	-
2	H108291	2	Clamp	-
3	R562148	1	Block Clamp	-
4	R569570	1	Block Clamp	-
5	R571248	1	Block Clamp	-
6	R568949	3	Block Clamp	-
7	R569465	1	Block Clamp	-
8	R569463	1	Block Clamp	-
9	R570220	1	Block Clamp	-
10	RE598248	1	Bracket	-
11	R569484	1	Channel	-
12	R569464	1	Channel	-
13	R569467	1	Channel	-
14	R568951	1	Channel	-
15	R571249	1	Channel	-
16	R572810	1	Channel	-
17	R570219	1	Channel	-
18	R202160	4	Clamp	-
19	R295484	1	Clamp	-
20	R135106	1	Clamp	-
21	RE594076	1	Tube	Coolant Deaeration Line
22	24M7055	2	Washer	8.400 X 16 X 1.600 mm
23	14M7298	3	Flange Nut	M8
24	RE595652	1	Fuel Line	Fuel Return
25	R570861	2	Half Clamp	-
26	RE597853	2	Hose	Fuel Cooler Inlet
27	RE561613	2	Hydraulic Hose	Oil Cooler
28	RE596236	1	Line	Connects Radiator To Deaeration Line
29	RE597794	1	Line	Auxiliary Coolant Return
30	RE596726	1	Line	Cab Manifold To Compressor
31	14M7817	10	Lock Nut	M8
32	51M7047	2	O-Ring	23.600 X 2.900 mm
33	51M7089	1	O-Ring	10.800 X 2.400 mm
34	T77858	2	O-Ring	-
35	T77613	1	O-Ring	-
36	RE595854	1	Oil Line	Oil Cooler Return
37	RE594127	1	Oil Line	Oil Cooler Inlet
38	H121168	1	Plate	-
39	RE596391	1	Refrigerant Hose	A/C Dryer to Cab
40	RE588605	1	Refrigerant Hose	A/C Compressor To Condenser
41	19M7801	1	Screw	M8 X 60
42	19M7866	3	Screw	M8 X 20
43	R566314	4	Screw	-
44	R566316	1	Screw	-
45	19M8317	1	Screw	M8 X 40
46	R566315	1	Screw	-
47	19M7800	3	Screw	M8 X 50
48	19M7863	1	Screw	M6 X 25
49	19M7868	2	Screw	M8 X 30
50	R572666	1	Screw	-
51	N191985	2	Clip	-
52	14M7298	3	Flange Nut	M8

Line, Front Line Bundle, T2 Engine (2/2) (927001 - )
