Открытый узел

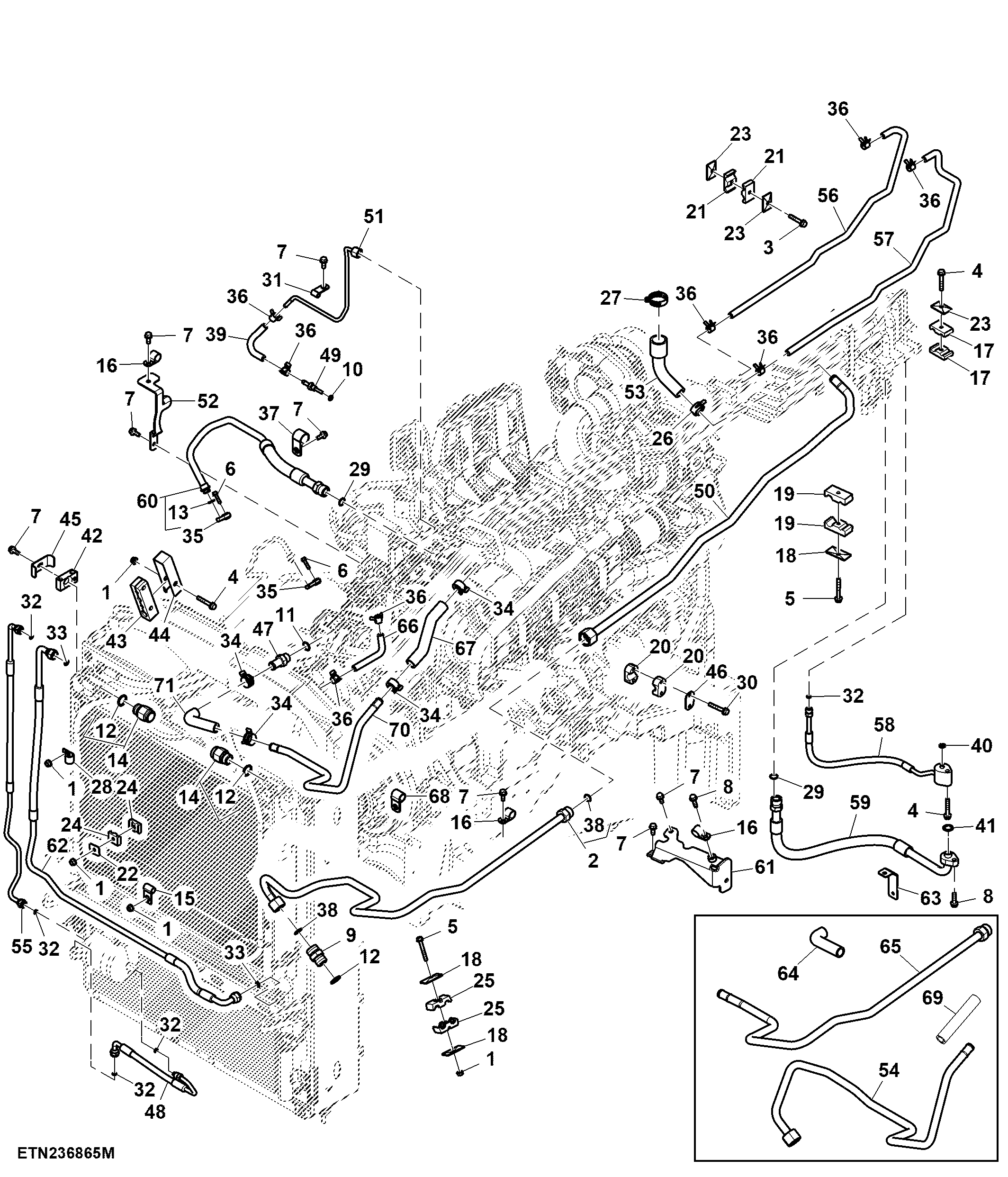

Line, Front Line Bundle, T2 Engine (2/2) ( - 927000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7298	9	Flange Nut	M8
2	TA19313	1	Line	Connects Rear Drain Line To Engine
3	19M7799	1	Screw	M8 X 45
4	19M7800	3	Screw	M8 X 50
5	19M7801	2	Screw	M8 X 60
6	19M7863	2	Screw	M6 X 25
7	19M7866	11	Screw	M8 X 20
8	19M7868	2	Screw	M8 X 30
9	38H5005	1	Adapter Fitting	INCLUDES 51M7047
10	51M7040	1	O-Ring	9.300 X 2.200 mm
11	51M7045	1	O-Ring	19.300 X 2.200 mm
12	51M7047	3	O-Ring	23.600 X 2.900 mm
13	51M7090	1	O-Ring	13.400 X 2.400 mm
14	62M1002	2	Adapter Fitting	-
15	AH107416	2	Clip	-
16	E53830	3	Clamp	-
17	H108291	2	Clamp	-
18	H112567	3	Plate	-
19	H114865	2	Clamp	-
20	H114876	4	Clamp	-
21	H120847	4	Clamp	-
22	H121163	1	Strap	-
23	H121168	4	Plate	-
24	H128515	2	Clamp	-
25	H135155	2	Clamp	-
26	H156922	1	Hose Clamp	-
27	TA19371	1	Clamp	SUB FOR APPL L154742
28	N191985	4	Clip	-
29	R183412	2	O-Ring	-
30	R106825	5	Screw	-
31	R135106	1	Clamp	-
32	R183409	5	O-Ring	-
33	R183410	2	O-Ring	-
34	R191781	4	Hose Clamp	-
35	R295484	2	Clamp	-
36	R320593	8	Hose Clamp	-
37	R46667	1	Clamp	-
38	T77858	2	O-Ring	-
39	R566273	1	Hose	Thermostat Deaeration
40	R567091	1	Sealing Washer	-
41	R567094	1	Sealing Washer	-
42	R568875	1	Clamp	-
43	R569465	1	Block Clamp	-
44	R569467	1	Channel	-
45	R571608	1	Plate	-
46	R572241	2	Plate	-
47	RE223627	1	Hose Fitting	INCLUDES 51M7045
48	RE561618	1	Refrigerant Hose	A/C Condensor Outlet To Dryer
49	RE574224	1	Fitting	INCLUDES 51M7040
50	RE586113	1	Line	Deaeration Bottle Return Line
51	RE586376	1	Tube	Thermostat Deaeration
52	RE588438	1	Bracket	ORDER TA20580
52	TA20580	1	Bracket	-
53	RE588524	1	Hose	Deaeration Bottle Molded HO
54	RE593919	1	Line	Cab Heater Return, ORDER TR118961
55	RE594011	1	Refrigerant Hose	A/C Dryer
56	RE594078	1	Hose	Deaeration Line Connector
57	RE594079	1	Hose	Deaeration Bottle Radiator
58	RE595838	1	Refrigerant Hose	A/C Drayer to Cab
59	TR121054	1	Refrigerant Hose	AC Suction To Compress, SUB FOR RE595839
60	RE595856	1	Refrigerant Hose	A/C Compressor Inlet, INCLUDES 51M7090
61	RE595859	1	Bracket	-
62	RE595866	1	Refrigerant Hose	A/C Condensor
63	RE596014	1	Bracket	-
64	RE596152	1	Hose	Connects Aux Drain Line To Fitting Using Tension Clamp, ORDER TR118982
65	RE596153	1	Line	Connects Rear Drain Line To Engine, ORDER TA19313
66	RE596237	1	Hose	Radiator to Deaeration Line
67	RE596727	1	Hose	Deaeration Drain
68	T64784	2	Clip	-
69	RE593915	1	Hose	Auxiliary Coolant Return, ORDER RE596727
70	TR118961	1	Line	Cab Heater Return
71	TR118982	1	Hose	Connects Aux Drain Line To Fitting Using Tension Clamp

Line, Front Line Bundle, T2 Engine (2/2) ( - 927000)
