Открытый узел

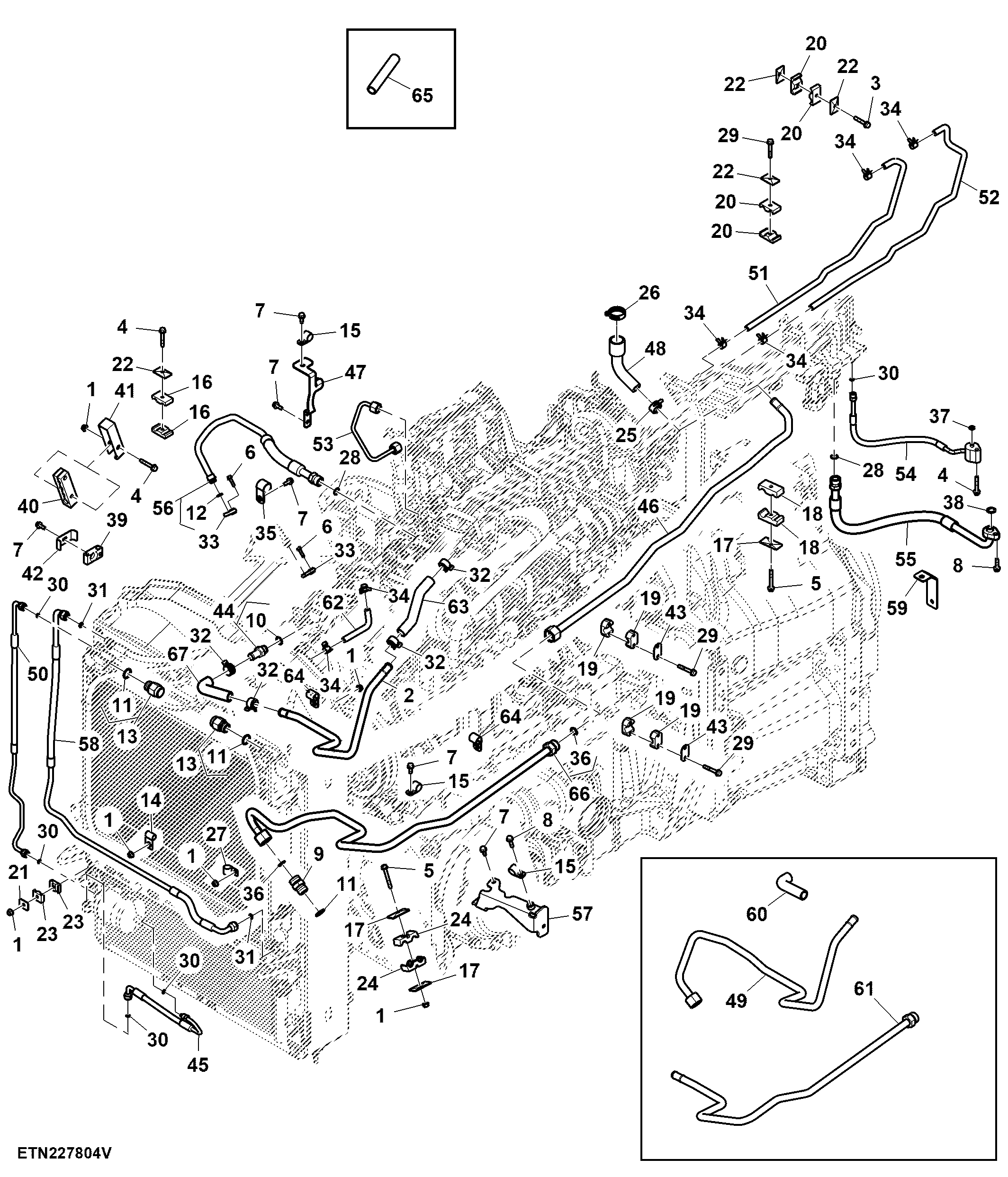

Line, Front Line Bundle, FT4/ Stage 5 Engine (2/2) ( - 927000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7298	9	Flange Nut	M8
2	TR118961	1	Line	Cab Heater Return
3	19M7799	1	Screw	M8 X 45
4	19M7800	3	Screw	M8 X 50
5	19M7801	2	Screw	M8 X 60
6	19M7863	2	Screw	M6 X 25
7	19M7866	10	Screw	M8 X 20
8	19M7868	2	Screw	M8 X 30
9	38H5005	1	Adapter Fitting	INCLUDES 51M7047
10	51M7045	1	O-Ring	19.300 X 2.200 mm
11	51M7047	3	O-Ring	23.600 X 2.900 mm
12	51M7090	1	O-Ring	13.400 X 2.400 mm
13	62M1002	2	Adapter Fitting	-
14	AH107416	2	Clip	-
15	E53830	3	Clamp	-
16	H108291	2	Clamp	-
17	H112567	3	Plate	-
18	H114865	2	Clamp	-
19	H114876	4	Clamp	-
20	H120847	4	Clamp	-
21	H121163	1	Strap	-
22	H121168	4	Plate	-
23	H128515	2	Clamp	-
24	H135155	2	Clamp	-
25	H156922	1	Hose Clamp	-
26	TA19371	1	Clamp	SUB FOR APPL L154742
27	N191985	4	Clip	-
28	R183412	2	O-Ring	-
29	R106825	5	Screw	-
30	R183409	5	O-Ring	-
31	R183410	2	O-Ring	-
32	R191781	4	Hose Clamp	-
33	R295484	2	Clamp	-
34	R320593	6	Hose Clamp	-
35	R46667	1	Clamp	-
36	T77858	2	O-Ring	-
37	R567091	1	Sealing Washer	-
38	R567094	1	Sealing Washer	-
39	R568875	1	Clamp	-
40	R569465	1	Block Clamp	-
41	R569467	1	Channel	-
42	R571608	1	Plate	-
43	R572241	2	Plate	-
44	RE223627	1	Hose Fitting	INCLUDES 51M7045
45	RE561618	1	Refrigerant Hose	A/C Condenser Outlet to Dryer
46	RE586113	1	Line	Deaeration Bottle Return
47	RE588438	1	Bracket	ORDER TA20580
47	TA20580	1	Bracket	-
48	RE588524	1	Hose	Connect Bottle to Drain Line
49	RE593919	1	Line	Cab Heater Return, ORDER TR118961
50	RE594011	1	Refrigerant Hose	Connects Bundle to Dryer Bottle
51	RE594078	1	Hose	-
52	RE594079	1	Hose	-
53	RE595147	1	Tube	-
54	RE595838	1	Refrigerant Hose	A/C Dryer to Cab
55	TR121054	1	Refrigerant Hose	SUB FOR RE595839
56	RE595856	1	Refrigerant Hose	A/C Compressor Inlet
57	RE595859	1	Bracket	-
58	RE595866	1	Refrigerant Hose	Connects Condensor to Bundle
59	RE596014	1	Bracket	-
60	RE596152	1	Hose	Connects Aux Drain Line To Fitting Using Tension Clamp, ORDER TR118982
61	RE596153	1	Line	Connects Rear Drain Line To Engine, ORDER TA19313
62	RE596237	1	Hose	Connect Radiator to Deaeration Line
63	RE596727	1	Hose	Deaeration Drain, Water Pump Inlet
64	T64784	2	Clip	-
65	RE593915	1	Hose	Auxiliary Coolant Return, ORDER RE596727
66	TA19313	1	Line	Connects Rear Drain Line To Engine
67	TR118982	1	Hose	Connects Aux Drain Line To Fitting Using Tension Clamp

Line, Front Line Bundle, FT4/ Stage 5 Engine (2/2) ( - 927000)

Нет текстового описания
