Fuel Line, W/ Water Separator, FT4/ Stage 5 Engine (927001 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H75541	1	Clamp	-
2	19M7950	2	Cap Screw	M20 X 45
3	R184863	6	Hose Clamp	-
4	24M7242	2	Washer	21.400 X 42 X 5 mm
5	14M7298	6	Flange Nut	M8
6	RE287835	1	Valve	Shut-Off Valve
7	R564101	2	Block Clamp	-
8	R221778	2	Plate	-
9	RE586231	1	Fuel Hose	Fuel Return
10	19M7800	6	Screw	M8 X 50
11	R318378	2	Half Clamp	-
12	RE588799	1	Fuel Line	Fuel Return
13	T77613	1	O-Ring	-
14	R561994	1	Fuel Hose	Fuel Supply
15	RE589922	1	Line	Fuel Supply Line to Rear Supply Line
16	Z81375	6	Block Clamp	-
17	H121168	3	Plate	-
18	RE594000	1	Line	Fuel Supply
19	H135156	2	Clamp	-
20	RE258807	2	Tie Band	-
21	H112567	2	Plate	-
22	R202160	2	Clamp	-
23	T43348	2	Clamp	-
24	AT387542	1	Filter	-
25	19M7868	2	Screw	M8 X 30
26	L41726	2	Pipe Plug	-
27	51M7042	4	O-Ring	13.300 X 2.200 mm
28	R561789	1	Hose	Filter Drain
29	RE584527	1	Pipe Plug	-
30	R558020	1	Fitting	-
31	RE210893	1	Plate	-
32	19M7865	1	Screw	M8 X 16
33	RE596247	1	Line	Fuel Supply, Rear
34	T77857	1	O-Ring	-
35	RE595242	2	Clamp	-
36	R571629	1	Bracket	-
37	R571650	1	Fuel Hose	Supply to and from Filter
38	R571651	1	Fuel Hose	Supply to Filter
39	RE596241	1	Bracket	-
40	14M7296	2	Flange Nut	M10
41	RE597572	1	Fuel Line	Fuel Cooler Supply
42	HXE21460	1	O-Ring	-
43	T324518	1	Elbow Fitting	-
44	RE595993	1	Fuel Line	Fuel Supply
45	T15712	1	O-Ring	-
46	RE597285	1	Bracket	-
47	L221449	2	Stud	-
48	AT365869	1	Filter Element	-
49	R501388	1	Packing	-
50	R525910	1	Packing	-
51	R501632	1	Packing	-
52	AT387545	1	Sediment Bowl	-
53	51M7097	1	O-Ring	18 X 2.500 mm

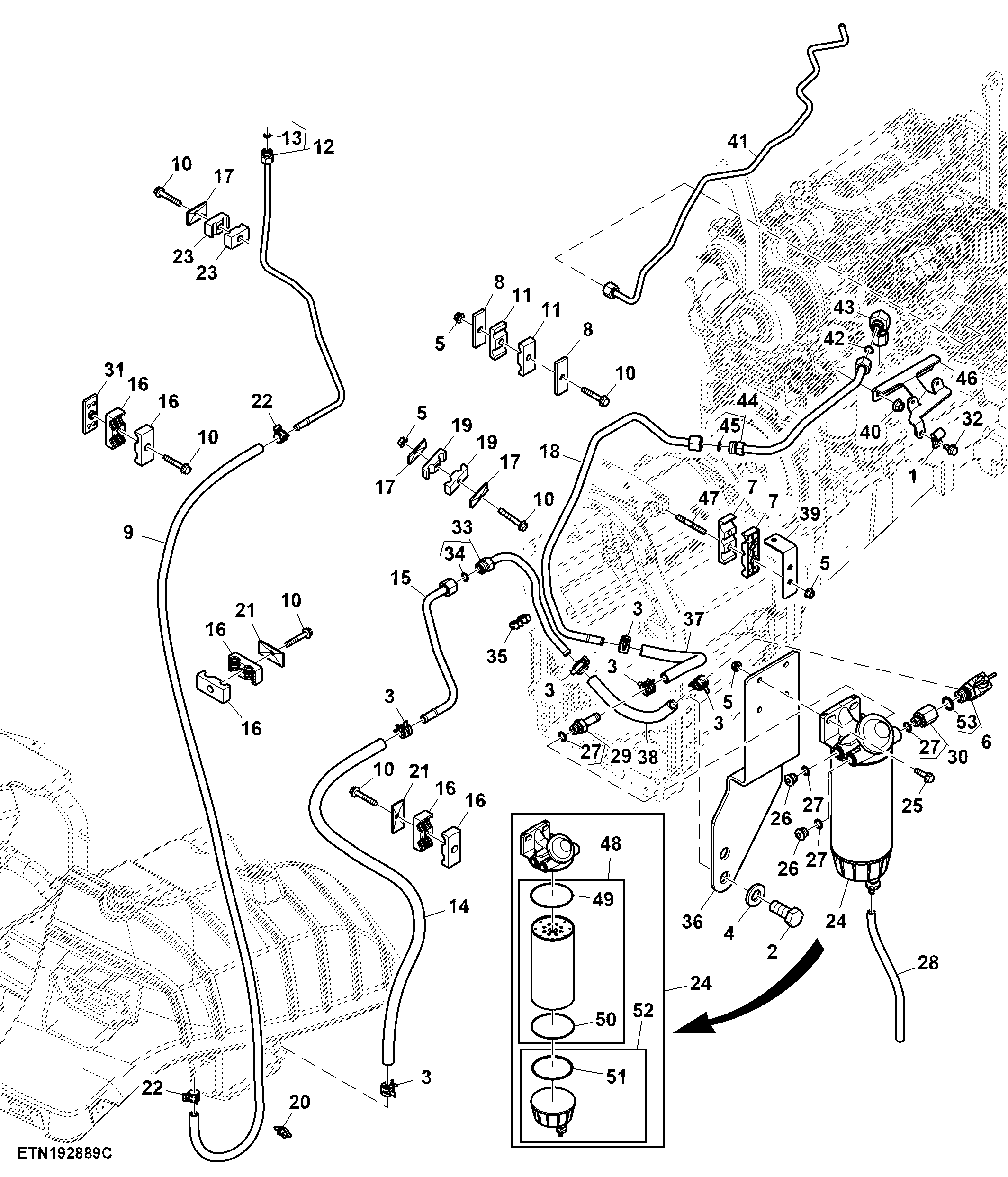

Fuel Line, W/ Water Separator, FT4/ Stage 5 Engine (927001 - )
