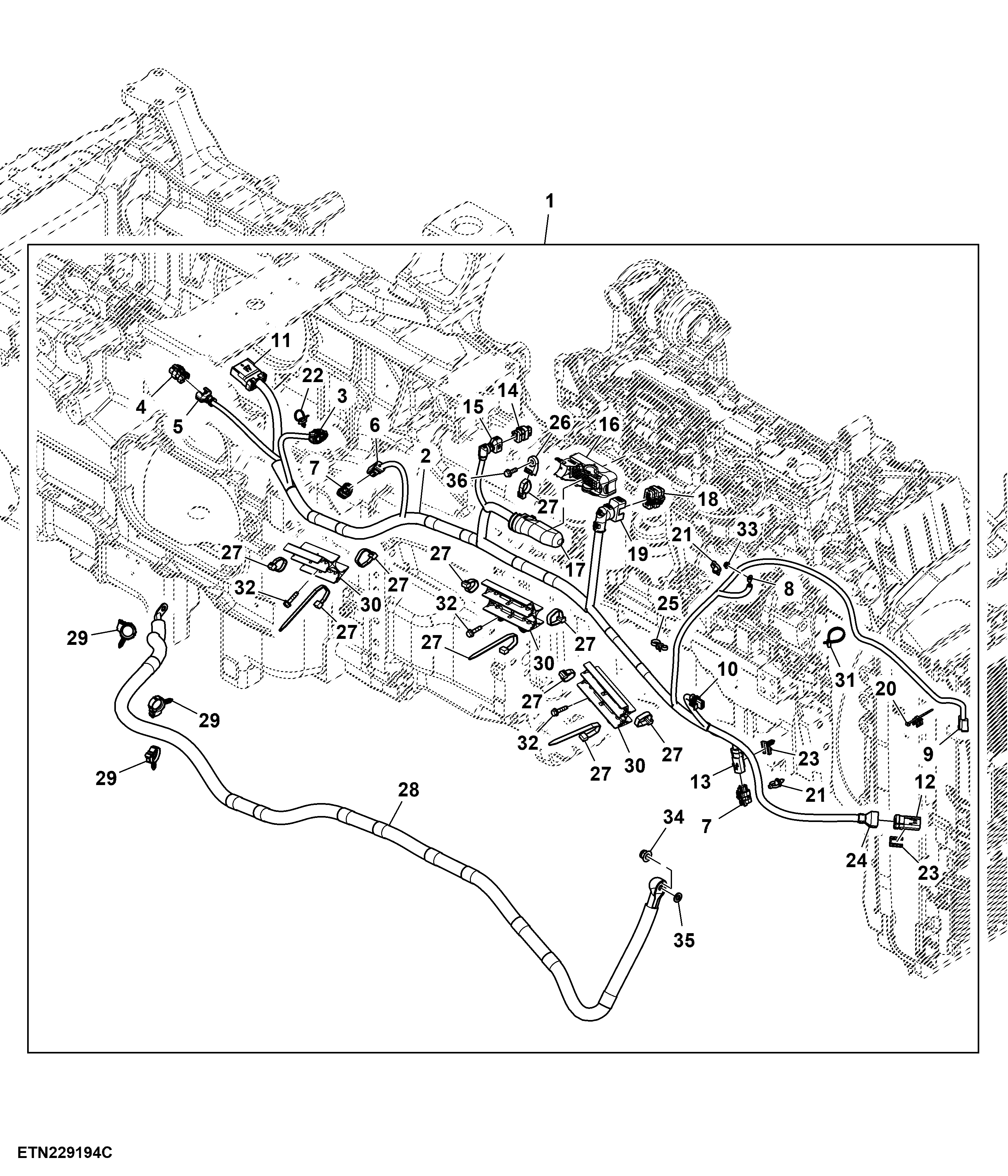

Wiring Harness Assembly, Engine / Alternator Cable, T2 / T3 Engine (927001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE598244	1	Chassis Wiring Harness	-
2	RE598158	1	Chassis Wiring Harness	-
3	RWA11130	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
3	57M9144	1	Elec. Connector Housing	Comp Inlet Humidity/Pressure/Temperature (CAN), B5500
4	57M9780	1	Elec. Connector Housing	Main / Engine Chassis (Ether) Interconnect, XX072-2
4	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
5	57M9838	1	Elec. Connector Accessory	ORDER 57M15917
5	57M15917	1	Elec. Connector Accessory	-
6	57M9776	1	Elec. Connector Housing	Engine CAN Terminator, A916
6	RWA11025	1	Repair Wire Assembly	Cavity 1, 2
7	57M11134	2	Elec. Connector Housing	-
8	57M8873	1	Elec. Connector Terminal	Alternator, G301-2
9	57M8812	1	Elec. Connector Housing	Auto-Ether Solenoid, Y5018
9	RWA11076	1	Repair Wire Assembly	Cavity A, B
10	57M7309	1	Elec. Connector Housing	A/C Comp Clutch, E5001
10	RWA11089	1	Repair Wire Assembly	Cavity A, B
10	57M7306	1	Elec.Connect Locking Device	-
11	57M10298	1	Elec. Connector Housing	Engine Chassis to Main Interconnect, XX182-2
11	RWA11136	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14
12	57M9791	1	Elec. Connector Housing	Variable Speed Fan, Y5005
12	RWA11023	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
13	57M9776	1	Elec. Connector Housing	CAN Terminator, A912
13	RWA11023	1	Repair Wire Assembly	Cavity 1, 2
14	57M9780	1	Elec. Connector Housing	Start Aid Interconnect, XX5004-1
14	RWA11027	1	Repair Wire Assembly	Cavity 1, 3
15	57M9847	1	Elec. Connector Accessory	-
16	RWA11044	1	Repair Wire Assembly	Cavity 3, 11, 15, 17, 18, 19, 20, 21, 25, 27, 29, 31, 44, 53, 55
16	RWA11047	1	Repair Wire Assembly	Cavity 57, 58, 59, 60, 61, 62
16	57M15968	1	Elec. Connector Housing	Electronic Control Unit, A5505-3
17	57M8738	1	Elec. Connector Accessory	-
18	57M9800	1	Elec. Connector Housing	JDPS Interconnect, XX5071-1
18	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 4, 5, 8, 9, 10, 12
19	57M14990	1	Elec. Connector Accessory	-
20	AH225363	1	Clip	-
21	RE258807	3	Tie Band	-
22	RE566207	1	Tie Band	-
23	57M9940	2	Elec. Connector Accessory	-
24	57M9841	1	Elec. Connector Accessory	-
25	57M10421	1	Elec. Connector Accessory	-
26	57M11799	1	Clip	-
27	R567146	25	Tie Band	-
28	RE596578	1	Battery Cable	-
29	57M9206	3	Clip	-
30	R568834	4	Block Clamp	-
31	R44302	2	Tie Band	-
32	R569884	8	Cap Screw	-
33	14M7375	1	Flange Nut	M5
34	14M7400	1	Lock Nut	M10
35	24M7106	1	Washer	10 X 18 X 2.500 mm
36	19M7862	1	Screw	M6 X 20

Wiring Harness Assembly, Engine / Alternator Cable, T2 / T3 Engine (927001 - )
