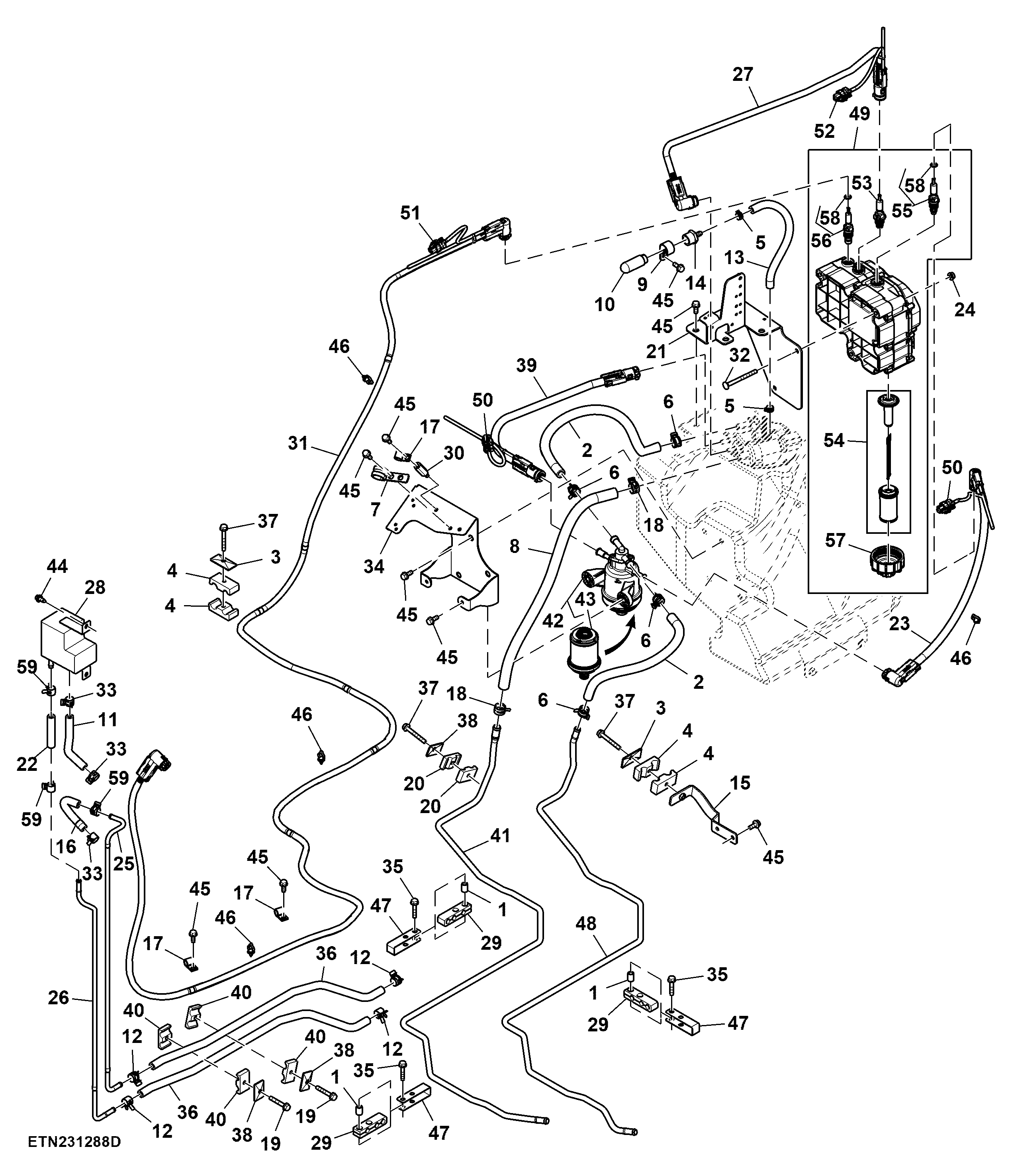

DEF Lines and Pump, Size 4, W/ EVT, FT4 / Stage 5 Engine (927001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L153723	6	Spacer	-
2	R562176	2	Hose	Coolant Return
3	H112567	2	Plate	-
4	H111730	4	Clamp	-
5	M164585	2	Hose Clamp	-
6	R184863	4	Hose Clamp	-
7	R556762	1	Clamp	-
8	R562173	1	Hose	Coolant Supply To Header
9	T27550	1	Clip	-
10	H216169	1	Breather	-
11	R568619	1	Hose	Doser to Coolant Bottle
12	R251581	4	Clamp	-
13	R562178	1	Hose	Coolant Return from DEF Tank
14	H216170	1	Fitting	-
15	RE590321	1	Bracket	-
16	R568618	1	Hose	DEF Doser Coolant Supply
17	R34557	4	Clamp	-
18	T184924	2	Hose Clamp	-
19	19M7800	3	Screw	M8 X 50
20	H135156	4	Clamp	-
21	RE590157	1	Bracket	-
22	R564906	1	Hose	DEF Doser Coolant Return
23	DZ113356	1	DEF Line	Suction Jumper, INCLUDES 57M9772
24	14M7298	3	Flange Nut	M8
25	R569127	1	Line	Doser Coolant Return
26	R569128	1	Line	Doser Coolant Supply
27	DZ114350	1	DEF Line	DEF Line, Backflow
28	RE594586	1	Reservoir	-
29	R565894	3	Block Clamp	-
30	R558578	1	Stud	-
31	DZ114349	1	DEF Line	DEF Line, Pressure, INCLUDES 57M9773
32	03M7295	3	Bolt	M8 X 90
33	R202160	3	Clamp	-
34	RE590158	1	Bracket	-
35	19M7798	6	Screw	M8 X 40
36	R562179	2	Hose	Coolant Jumper
37	19M7801	3	Screw	M8 X 60
38	H121168	4	Plate	-
39	DZ113355	1	DEF Line	Suction, INCLUDES 57M9772
40	H120847	4	Clamp	-
41	RE595690	1	Line	Coolant Supply To Header
42	DZ118548	1	Filter	DEF Inline Filter Assembly
42	DZ124402	1	Filter	SUB FOR DZ118548
43	DZ110513	1	Filter Kit	-
43	DZ124403	1	Filter Kit	SUB FOR DZ110513
44	19M10365	2	Screw	M8 X 20
45	19M7866	20	Screw	M8 X 20
46	RE258807	10	Tie Band	-
47	R571997	3	Clamp	-
48	RE597397	1	Line	Coolant Return From Header
49	DZ121774	1	DEF Dosing Unit Pump	-
50	57M9772	2	Elec. Connector Housing	-
51	57M9773	1	Elec. Connector Housing	-
52	57M9774	1	Elec. Connector Housing	-
53	DZ113071	1	Adapter Fitting	-
54	DZ114640	1	Filter Kit	DEF Supply Module Filter
55	RE549603	1	Adapter Fitting	-
56	RE549604	1	Adapter Fitting	-
57	RE555351	1	Cap	-
58	51M7040	2	O-Ring	9.300 X 2.200 mm
59	KK15513	3	Clamp	-

DEF Lines and Pump, Size 4, W/ EVT, FT4 / Stage 5 Engine (927001 - )
