Открытый узел

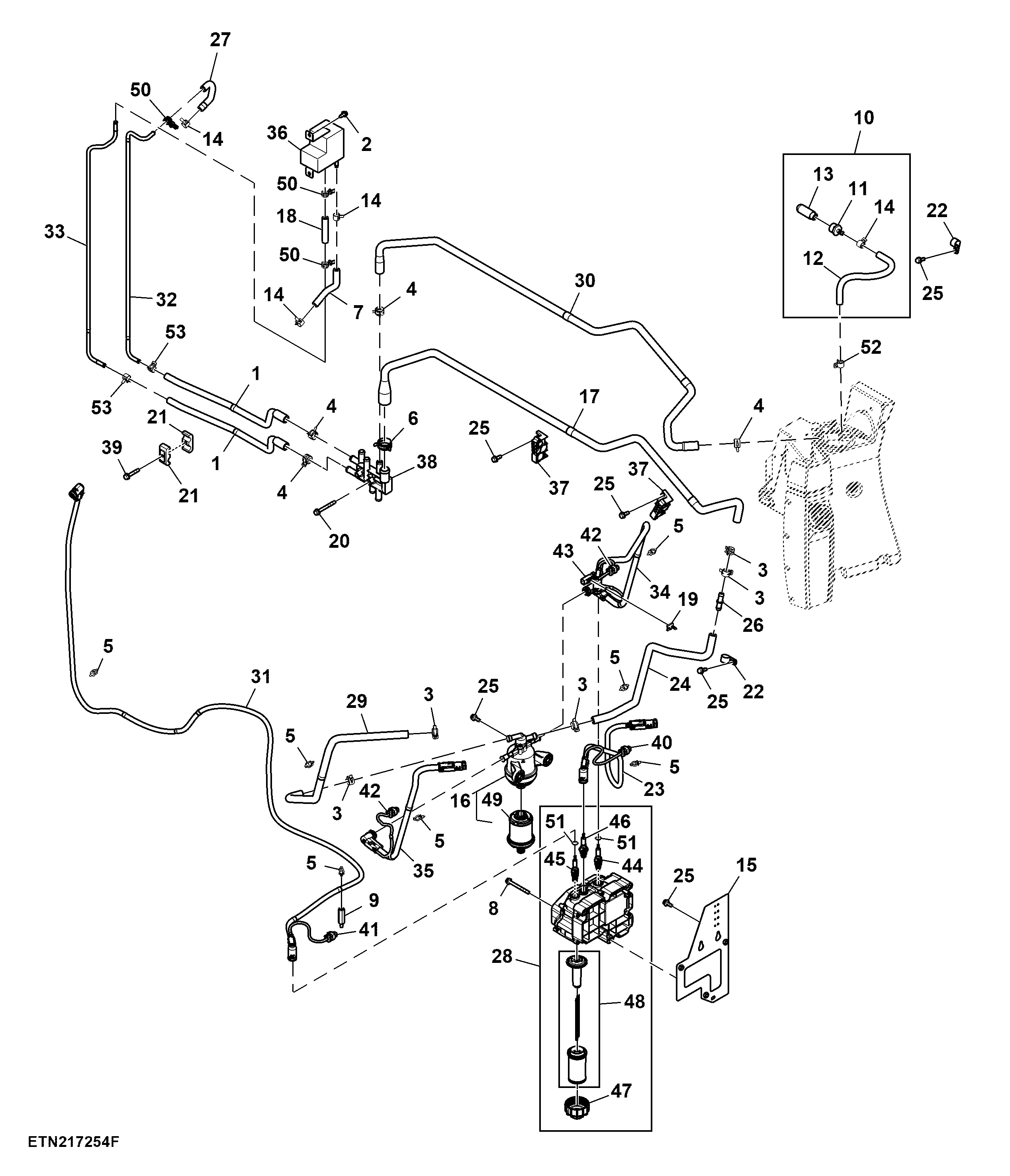

DEF Lines and Pump, Size 5, FT4/ Stage 5 Engine

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R565543	2	Hose	Doser Coolant Return
2	19M10365	2	Screw	M8 X 20
3	R184863	5	Hose Clamp	-
4	T184924	4	Hose Clamp	-
5	RE258807	18	Tie Band	-
6	R132609	1	Clamp	-
7	R568619	1	Hose	Doser To Coolant Bottle
8	19M8039	3	Screw	M8 X 80
9	R545422	1	Stud	-
10	RE595088	1	Filter	DEF Vent
11	H216170	1	Fitting	-
12	R570506	1	Hose	DEF Vent
13	H216169	1	Breather	-
14	R202160	4	Clamp	USE WITH DZ104778
14	R202160	7	Clamp	USE WITH DZ121774
15	TA22760	1	Bracket	SUB FOR RE592572
16	DZ118548	1	Filter	DEF Inline Filter Assembly
16	DZ124402	1	Filter	SUB FOR DZ118548
17	R565541	1	Hose	DEF Tank Coolant Return
18	R564906	1	Hose	DEF Doser Coolant Return
19	57M9940	1	Elec. Connector Accessory	-
20	19M7803	2	Screw	M8 X 70
21	W40935	2	Clamp	-
22	57M9856	2	Clamp	-
23	DZ113353	1	DEF Line	Backflow, INCLUDES 57M9774
24	R566187	1	Hose	DEF Tank Coolant
25	19M7866	17	Screw	M8 X 20
26	L211142	1	Coupling	-
27	R568618	1	Hose	DEF Doser Coolant Supply
28	DZ121774	1	DEF Dosing Unit Pump	SUB FOR DZ104778
29	R562141	1	Hose	Inline Filter To Header
30	R565540	1	Hose	DEF Tank Coolant Supply
31	DZ113354	1	DEF Line	DEF Line, Pressure, INCLUDES 57M9773
32	R569126	1	Line	Doser Coolant Supply Under Aftertreatment Device Shielding
33	R569122	1	Line	Doser Coolant Return Under Aftertreatment Device Shielding
34	DZ116874	1	DEF Line	Inline Filter To Dosing Unit Pump, INCLUDES 57M9772 AND 57M9776
35	DZ116873	1	DEF Line	DEF Tank To Inline Filter, INCLUDES 57M9772
36	RE594586	1	Reservoir	-
37	R569234	5	Clamp	-
38	R570128	1	Coolant Manifold	-
39	19M8318	1	Screw	M8 X 45
40	57M9774	1	Elec. Connector Housing	-
41	57M9773	1	Elec. Connector Housing	-
42	57M9772	2	Elec. Connector Housing	-
43	57M9776	1	Elec. Connector Housing	-
44	RE549603	1	Adapter Fitting	INCLUDES 51M7040
45	RE549604	1	Adapter Fitting	INCLUDES 51M7040
46	DZ113071	1	Adapter Fitting	-
47	RE555351	1	Cap	-
48	DZ114640	1	Filter Kit	DEF Supply Module Filter
49	DZ110513	1	Filter Kit	DEF Inline Filter
49	DZ124403	1	Filter Kit	SUB FOR DZ110513
50	KK15513	3	Clamp	USE WITH DZ121774
51	51M7040	2	O-Ring	9.300 X 2.200 mm
52	M164585	1	Hose Clamp	-
53	R251581	2	Clamp	-

DEF Lines and Pump, Size 5, FT4/ Stage 5 Engine

Нет текстового описания
