Открытый узел

Wiring Harness, Selective Control Valve, 6 Rear SCV, W/ Hitch ( - 071000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE596055	1	Chassis Wiring Harness	-
1	RE595509	1	Chassis Wiring Harness	ORDER RE596055
2	19M7866	5	Screw	M8 X 20
3	57M10092	5	Elec. Connector Accessory	-
4	57M10229	1	Elec. Connector Accessory	-
5	57M10299	1	Elec. Connector Housing	XX016-1, Trailer Lighting Conn
5	RWA11137	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8
6	57M10530	1	Elec. Connector Housing	A914, Breakway ISO Bus
6	57M8016	1	Elec.Connect Locking Device	-
6	RWA11058	1	Repair Wire Assembly	Cavity 2, 4
7	57M10638	1	Elec. Connector Accessory	-
8	57M11334	4	Elec. Connector Accessory	USE WITH RE596055
8	57M11334	3	Elec. Connector Accessory	USE WITH RE595509
9	57M11338	1	Elec. Connector Accessory	-
10	57M11354	1	Elec. Connector Housing	A704_CAP, Cap
11	57M11897	7	Elec. Connector Accessory	-
12	57M12129	1	Clamp	-
13	57M13605	1	Elec. Connector Housing	XX183-2, Rear To Main
13	RWA11126	1	Repair Wire Assembly	Cavity B2, B3, B4, B5, B6, B8, B11, C1, C2, C3, C4, C7, C8, C9, C10, C11, C12, D1, D2, D3, D4, D5, D6, D7, D8, D9, D10, E1, E2, E10, E11, E12, F7, F10, F11, F12
13	RWA11128	1	Repair Wire Assembly	Cavity G1, G2, G3
14	57M8593	2	Elec. Connector Terminal	Cavity 2, 4
14	57M13652	1	Elec. Connector Housing	X221, Implement Connector
14	57M7614	2	Elec. Connector Terminal	Cavity 1, 3
15	57M13948	1	Elec. Connector Accessory	-
16	57M7254	1	Elec. Connector Housing	XX014_CAP, Backup Alarm Cap
17	57M7256	1	Elec. Connector Housing	XX014-1, Back-Up Alarm
17	RWA11082	1	Repair Wire Assembly	Cavity A, B
18	57M7567	1	Elec. Connector Terminal	XGND4, IBBC Ground
19	57M7760	1	Electrical Connector Assy	XX186-2, Rear To Main Implement Power
19	57M7614	1	Elec. Connector Terminal	Cavity 1
20	57M8924	1	Elec. Connector Housing	Y666, Solenoid Diff Lock Rear
20	RWA11097	1	Repair Wire Assembly	Cavity A, B
21	57M9222	1	Elec. Connector Housing	Y499_CAP, Cap
22	57M9498	1	Elec. Connector Housing	A701, SCV 1 Valve
22	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
23	57M9556	1	Elec. Connector Accessory	-
24	57M9780	1	Elec. Connector Housing	B517, Sensor Wheel Speed Primary
24	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
25	57M9786	1	Elec. Connector Housing	B698, Rockshaft Pos
25	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
26	57M9800	1	Elec. Connector Housing	XX185-1, Air Brake Interconnect
26	RWA11029	1	Repair Wire Assembly	Cavity 1, 3, 4, 5, 6, 7, 8, 9, 10, 11
27	57M9838	1	Elec. Connector Accessory	-
28	57M9844	1	Elec. Connector Accessory	-
29	57M9847	3	Elec. Connector Accessory	-
30	R568227	3	Clip	-
32	R78053	1	Electrical Connector Assy	S549_CAP, Dust Cap
33	RE258807	9	Tie Band	-
34	57M9780	1	Elec. Connector Housing	B516, Sensor Wheel Speed Secondary
34	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
35	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
35	57M9780	1	Elec. Connector Housing	XX721-1, Draft Sensor
36	57M9780	1	Elec. Connector Housing	B696, Rear PTO Speed
36	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
37	57M8924	1	Elec. Connector Housing	Y499, Rear PTO Two Speed
37	57M11380	1	Elec. Connector Accessory	-
37	RWA11097	1	Repair Wire Assembly	Cavity A, B
38	RE12363	1	Electrical Connector Assy	S549, Implement Switch
38	RWA11147	1	Repair Wire Assembly	Cavity A, B
39	57M9498	1	Elec. Connector Housing	A702, SCV 2 Valve
39	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
40	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
40	57M9498	1	Elec. Connector Housing	A703, SCV 3 Valve
41	57M9498	1	Elec. Connector Housing	A800, Hitch Valve
41	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
42	57M9498	1	Elec. Connector Housing	A704, SCV 4 Valve
42	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
43	57M9498	1	Elec. Connector Housing	A705, SCV 5 Valve
43	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
44	57M9498	1	Elec. Connector Housing	A706, SCV 6 Valve
44	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
45	57M11354	1	Elec. Connector Housing	A705_CAP, Dust Cap
46	57M11354	1	Elec. Connector Housing	A706_CAP, Dust Cap
47	57M12137	1	Clamp	-
48	57M9780	1	Elec. Connector Housing	HYD Trailer Control Pressure, USE WITH RE596055; B257
48	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
49	RWA11083	1	Repair Wire Assembly	Cavity A, B
49	57M7254	1	Elec. Connector Housing	HYD Trailer Brake Leak Detection Solenoid, USE WITH RE596055; Y722
50	57M7256	1	Elec. Connector Housing	Cap, USE WITH RE596055; Y722
51	57M10308	1	Elec. Connector Accessory	USE WITH RE596055
52	57M9838	1	Elec. Connector Accessory	USE WITH RE596055
53	57M9940	1	Elec. Connector Accessory	USE WITH RE596055
31A	R568838	1	Bracket	ORDER R571566
31B	R571566	1	Bracket	-

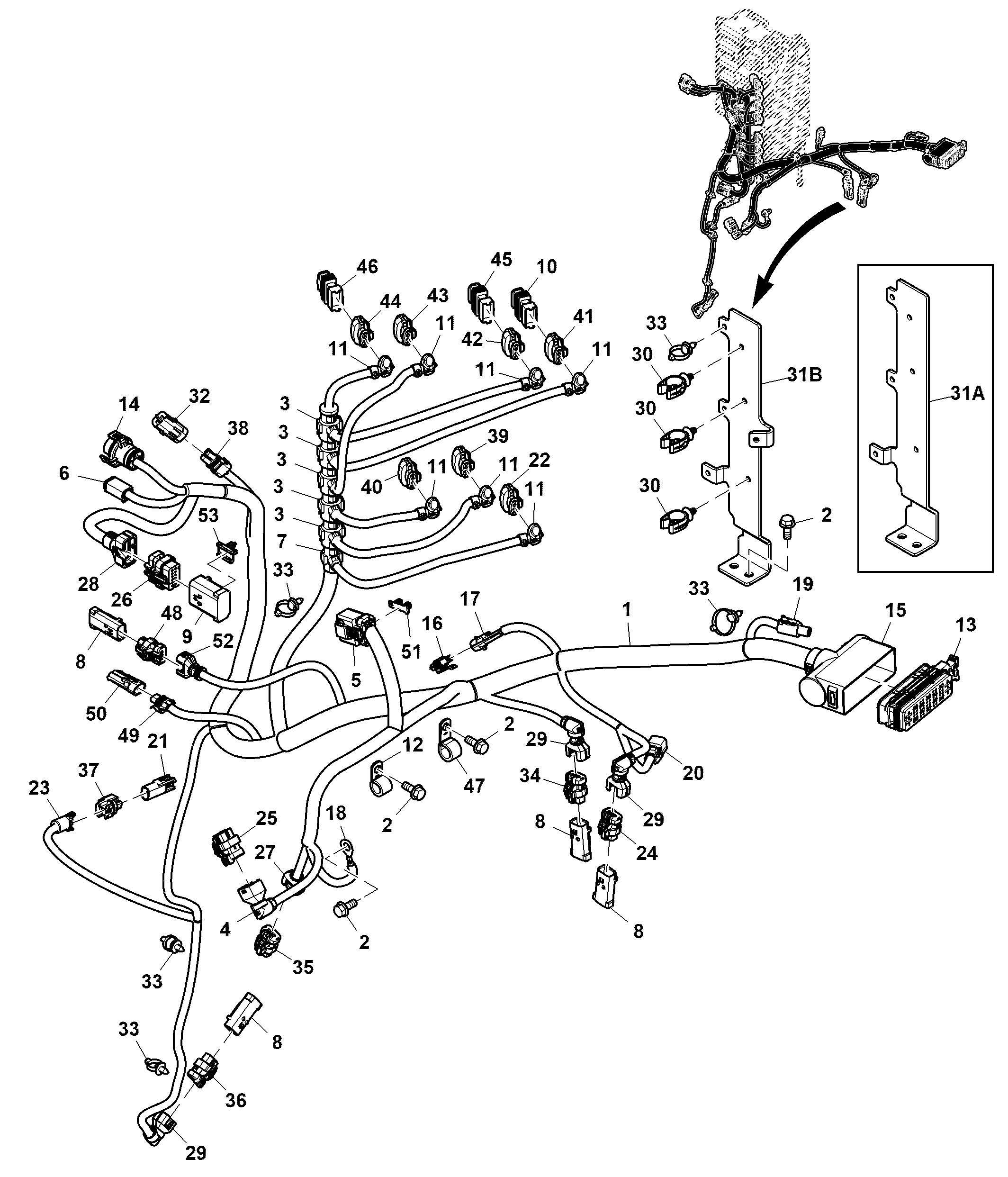

Wiring Harness, Selective Control Valve, 6 Rear SCV, W/ Hitch ( - 071000)
