Wiring Harness, Wheel Angle Sensor, ILS™ ( - 200000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE585548	2	Chassis Wiring Harness	-
2	57M9796	1	Elec. Connector Housing	Chassis Interconnect, XX006B/XX005B
2	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7
3	57M9843	1	Elec. Connector Accessory	-
4	57M9940	2	Elec. Connector Accessory	-
5	57M9750	1	Elec. Connector Housing	SFA Position Sensor, B304/B305
5	RWA11029	1	Repair Wire Assembly	Cavity 4, 5, 6
6	57M10229	1	Elec. Connector Accessory	-
7	57M8919	1	Elec. Connector Housing	Right Wheel Angle Sensor, B264
7	RWA11097	1	Repair Wire Assembly	Cavity A, B, C, D, E, F
8	R561528	2	Shield	-
9	19M7866	12	Screw	M8 X 20
10	57M13296	4	Clamp	-
11	57M9796	1	Elec. Connector Housing	Chassis Interconnect, XX006B/XX005B
11	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7
12	57M9843	1	Elec. Connector Accessory	-
13	57M9750	1	Elec. Connector Housing	SFA Position Sensor, B304/B305
13	RWA11029	1	Repair Wire Assembly	Cavity 4, 5, 6
14	57M10229	1	Elec. Connector Accessory	-
15	57M8919	1	Elec. Connector Housing	Left Wheel Angle Sensor, B252
15	RWA11097	1	Repair Wire Assembly	Cavity A, B, C, D, E, F
16	57M9682	4	Clip	-

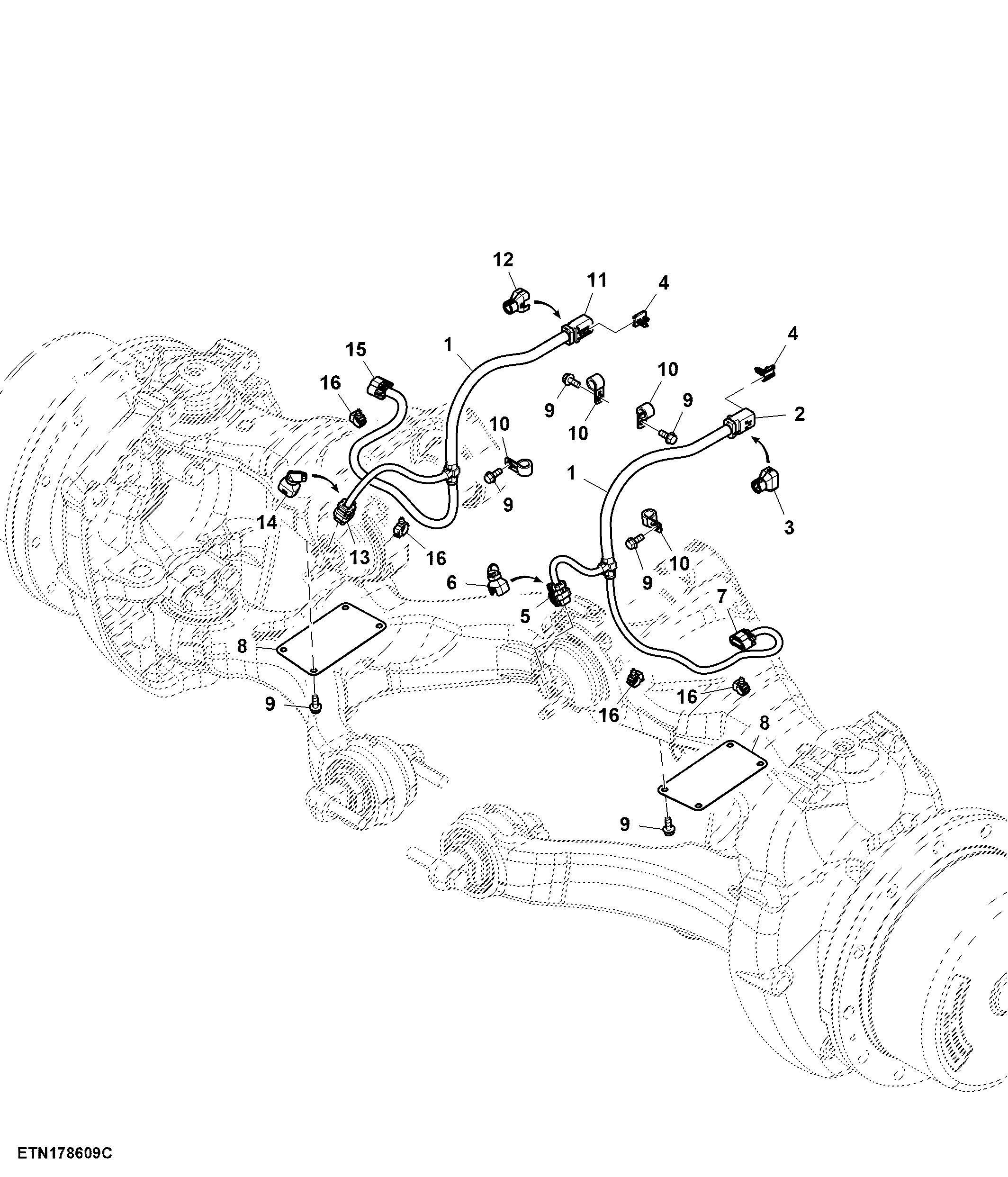

Wiring Harness, Wheel Angle Sensor, ILS™ ( - 200000)

Нет текстового описания
