Открытый узел

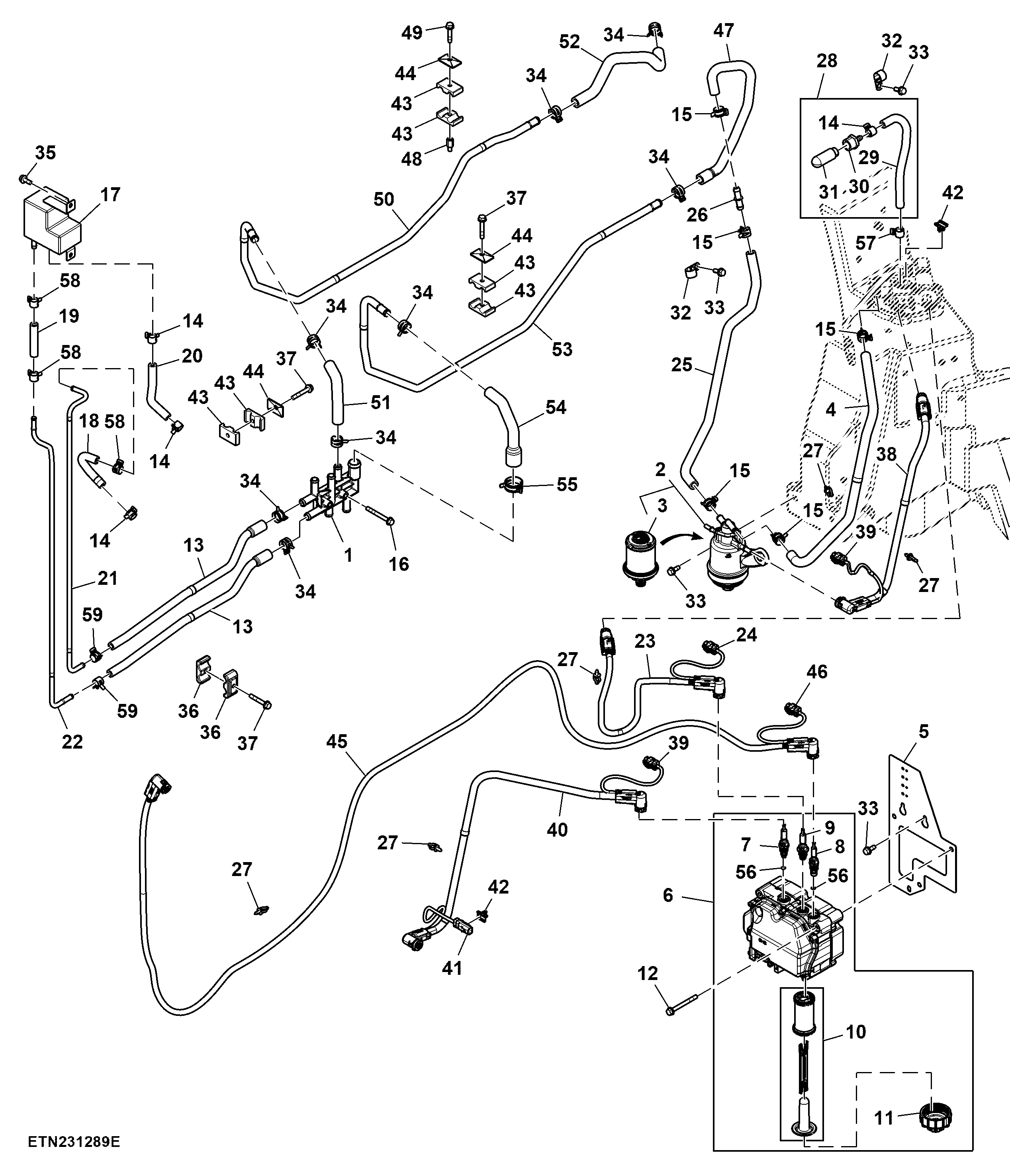

DEF Lines and Pump, Size 4, FT4/ Stage 5 Engine (200001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R570128	1	Coolant Manifold	-
2	DZ118548	1	Filter	DEF Inline Filter Assembly
2	DZ124402	1	Filter	SUB FOR DZ118548
3	DZ110513	1	Filter Kit	-
3	DZ124403	1	Filter Kit	SUB FOR DZ110513
4	R562141	1	Hose	DEF Tank Coolant
5	TA22760	1	Bracket	-
6	DZ121774	1	DEF Dosing Unit Pump	-
7	RE549603	1	Adapter Fitting	INCLUDES 51M7040
8	RE549604	1	Adapter Fitting	INCLUDES 51M7040
9	DZ113071	1	Adapter Fitting	-
10	DZ114640	1	Filter Kit	-
11	RE555351	1	Cap	-
12	19M8039	3	Screw	M8 X 80
13	R565543	2	Hose	-
14	R202160	4	Clamp	-
15	R184863	5	Hose Clamp	-
16	19M7803	2	Screw	M8 X 70
17	RE594586	1	Reservoir	-
18	R568618	1	Hose	DEF Doser Coolant Supply
19	R564906	1	Hose	DEF Doser Coolant Return
20	R568619	1	Hose	Doser To Coolant Bottle
21	R569127	1	Line	Doser Coolant Return
22	R569128	1	Line	Doser Coolant Supply
23	DZ113353	1	DEF Line	Backflow, INCLUDES 57M9774
24	57M9774	1	Elec. Connector Housing	-
25	R566187	1	Hose	DEF Tank Coolant
26	L211142	1	Coupling	-
27	RE258807	23	Tie Band	-
28	RE595088	1	Filter	-
29	R570506	1	Hose	DEF Vent
30	H216170	1	Fitting	-
31	H216169	1	Breather	-
32	57M9856	2	Clamp	-
33	19M7866	7	Screw	M8 X 20
34	T184924	8	Hose Clamp	-
35	19M10365	2	Screw	M8 X 20
36	W40935	2	Clamp	-
37	19M7800	3	Screw	M8 X 50
38	DZ116873	1	DEF Line	Suction, INCLUDES 57M9772
39	57M9772	2	Elec. Connector Housing	-
40	DZ116874	1	DEF Line	Suction Jumper, INCLUDES 57M9772 AND 57M9776
41	57M9776	1	Elec. Connector Housing	-
42	57M9940	1	Elec. Connector Accessory	-
43	H120847	6	Clamp	-
44	H121168	3	Plate	-
45	DZ122799	1	DEF Line	Pressure, INCLUDES 57M9773
46	57M9773	1	Elec. Connector Housing	-
47	R570600	1	Hose	DEF Tank Coolant Return
48	R545634	1	Stud	-
49	19M7798	1	Screw	M8 X 40
50	R572830	1	Line	DEF Tank Coolant Supply
51	R570601	1	Hose	DEF Tank Coolant Supply
52	R570602	1	Hose	DEF Tank Coolant Supply
53	R572831	1	Line	DEF Tank Coolant Return
54	R570599	1	Hose	DEF Tank Coolant Return
55	R132609	1	Clamp	-
56	51M7040	2	O-Ring	9.300 X 2.200 mm
57	M164585	1	Hose Clamp	-
58	KK15513	3	Clamp	-
59	R251581	2	Clamp	-

DEF Lines and Pump, Size 4, FT4/ Stage 5 Engine (200001 - )

Нет текстового описания
