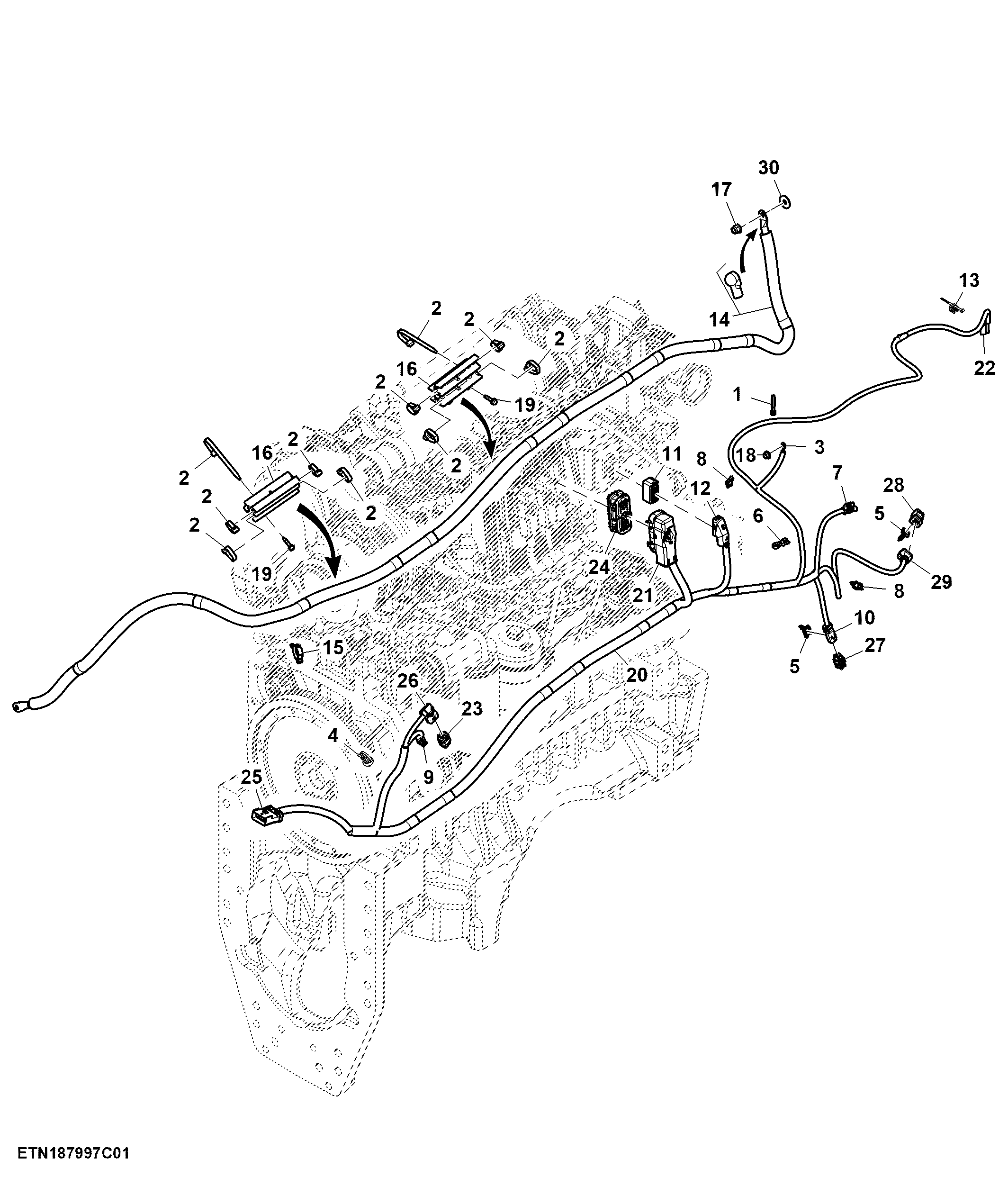

Chassis Wiring Harness, T2/ T3 Engine ( - 072000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R44302	2	Tie Band	-
2	R567146	24	Tie Band	-
3	57M8873	1	Elec. Connector Terminal	Alternator, G301–2
4	RE566207	1	Tie Band	-
5	57M9940	2	Elec. Connector Accessory	-
6	57M10421	1	Elec. Connector Accessory	-
7	57M7309	1	Elec. Connector Housing	A/C Compressor Clutch, S501
7	RWA11089	1	Repair Wire Assembly	Cavity B, A
8	RE258807	3	Tie Band	-
9	57M7850	1	Elec. Connector Housing	Compressor Inlet Temperature Sensor, B5214
9	RWA11084	1	Repair Wire Assembly	Cavity A, B
10	57M9776	1	Elec. Connector Housing	Terminator Vehicle CAN Chassis, A912
10	RWA11023	1	Repair Wire Assembly	Cavity 1, 2
11	57M11866	1	Elec. Connector Housing	Engine Harness Interconnect, XX5098-1
11	RWA11045	1	Repair Wire Assembly	Cavity 2, 4, 6, 5, 3, 1
11	RWA11042	1	Repair Wire Assembly	Cavity 7
12	57M11864	1	Elec. Connector Accessory	-
13	AH225363	1	Clip	-
14	RE596531	1	Battery Cable	-
15	57M9206	2	Clip	-
16	R568834	4	Block Clamp	-
17	14M7400	1	Lock Nut	M10
18	14M7375	1	Flange Nut	M5
19	R569884	8	Cap Screw	-
20	RE596053	1	Chassis Wiring Harness	ORDER TA19334
20	TA19334	1	Chassis Wiring Harness	-
21	R528122	1	Elec. Connector Accessory	-
22	57M8812	1	Elec. Connector Housing	Auto-Ether Solenoid, Y5018
22	RWA11076	1	Repair Wire Assembly	Cavity A, B
23	57M9783	1	Elec. Connector Housing	Air Intake Pressure Sensor, B5112
23	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
24	RE538505	1	Elec. Connector Accessory	Engine Control Unit, A5505-3
24	RWA11027	1	Repair Wire Assembly	Cavity 3, 1, 2, 15, 18, 7, 33, 49, 34, 25, 22, 28, 30, 29
25	57M10298	1	Elec. Connector Housing	Engine Chassis to Main Interconnect, XX182-2
25	RWA11136	1	Repair Wire Assembly	Cavity 1, 2, 3, 5, 7, 8, 10, 13,
26	57M9850	1	Elec. Connector Accessory	-
27	57M11134	1	Elec. Connector Housing	-
28	57M9791	1	Elec. Connector Housing	Variable Speed Fan, Y5005
28	RWA11023	1	Repair Wire Assembly	Cavity 1, 3, 5
29	57M9841	1	Elec. Connector Accessory	-
30	24M7106	1	Washer	10 X 18 X 2.500 mm

Chassis Wiring Harness, T2/ T3 Engine ( - 072000)

Нет текстового описания
