Открытый узел

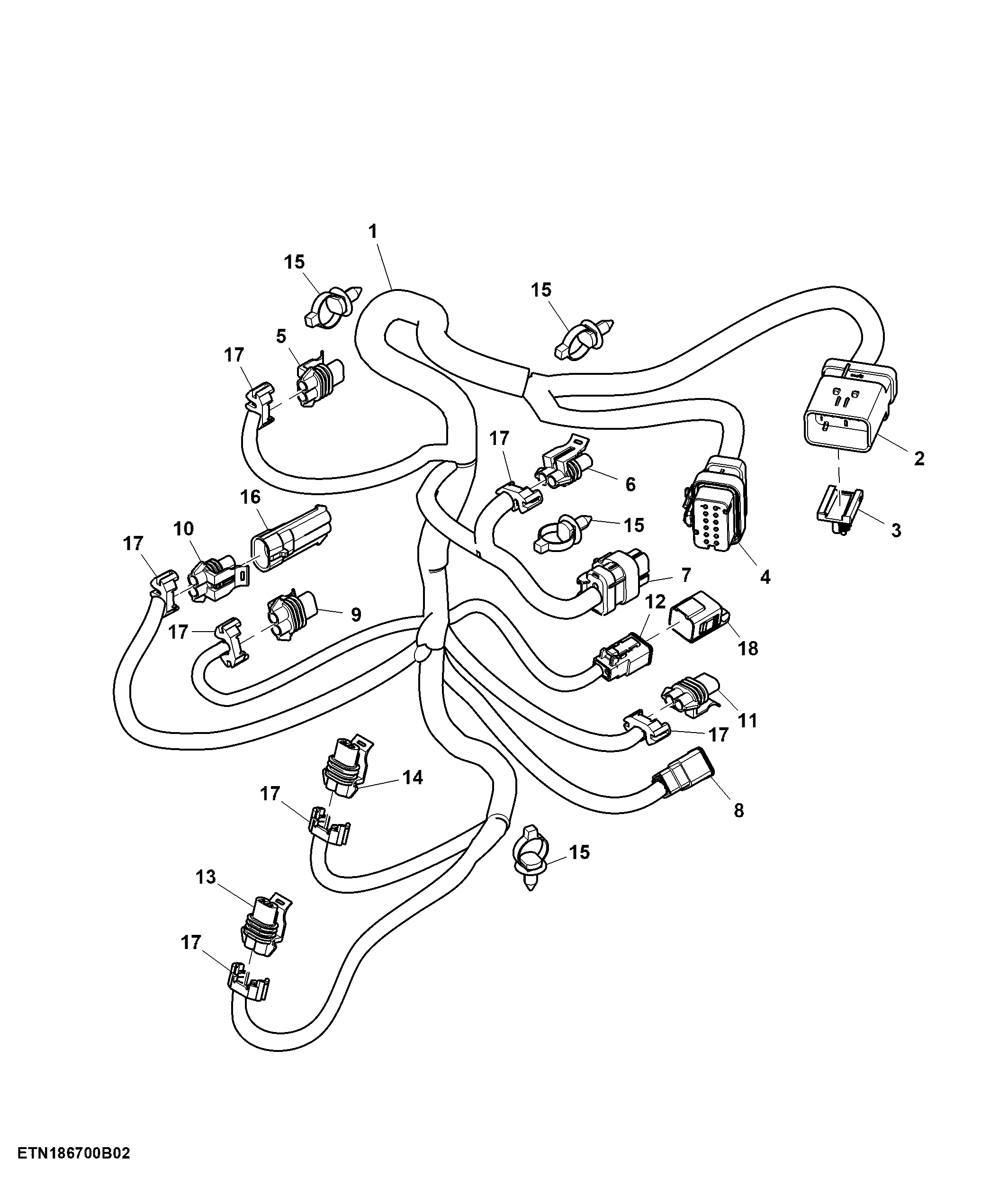

Wiring Harness, ILS™ Manifold, W/ Front Brake, W/ Front PTO

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE593637	1	Chassis Wiring Harness	-
2	57M9804	1	Elec. Connector Housing	SFA Harness To Front Hitch Interconnect 2, X0026-2
2	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 7, 8, 9, 11
3	57M9940	1	Elec. Connector Accessory	-
4	57M9800	1	Elec. Connector Housing	SFA Harness To Front Hitch Interconnect 1, XX025-2
4	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
5	57M7254	1	Elec. Connector Housing	SFA Lower, Y507
5	57M7218	1	Elec. Connector Terminal	-
5	RWA11083	1	Repair Wire Assembly	Cavity A, B
6	57M7254	1	Elec. Connector Housing	SFA Decrease Stiffness, Y509
6	57M7218	1	Elec. Connector Terminal	-
6	RWA11083	1	Repair Wire Assembly	Cavity A, B
7	57M9780	1	Elec. Connector Housing	SFA Pressure Sensor, B306
7	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
8	57M10517	1	Elec. Connector Housing	Front Differential Lock Solenoid, Y683
8	57M8022	1	Elec.Connect Locking Device	-
8	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
9	RWA11083	1	Repair Wire Assembly	Cavity A, B
9	57M7254	1	Elec. Connector Housing	SFA Raise, Y506
9	57M7218	1	Elec. Connector Terminal	-
10	57M7254	1	Elec. Connector Housing	Front Brake Off - Solenoid, Y706
10	57M7218	1	Elec. Connector Terminal	-
10	RWA11083	1	Repair Wire Assembly	Cavity A, B
11	57M7254	1	Elec. Connector Housing	SFA Increase Stiffness, Y508
11	57M7218	1	Elec. Connector Terminal	-
11	RWA11083	1	Repair Wire Assembly	Cavity A, B
12	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
12	57M8022	1	Elec.Connect Locking Device	-
12	57M10517	1	Elec. Connector Housing	Front Brake Solenoid, Y705
13	57M7254	1	Elec. Connector Housing	SFA Damping A, Y510
13	57M7218	1	Elec. Connector Terminal	-
13	RWA11083	1	Repair Wire Assembly	Cavity A, B
14	57M7254	1	Elec. Connector Housing	SFA Damping B, Y511
14	57M7218	1	Elec. Connector Terminal	-
14	RWA11083	1	Repair Wire Assembly	Cavity A, B
15	RE258807	5	Tie Band	-
16	57M7256	1	Elec. Connector Housing	-
17	57M7289	7	Elec.Connect Locking Device	-
18	57M11230	1	Elec. Connector Accessory	-

Wiring Harness, ILS™ Manifold, W/ Front Brake, W/ Front PTO

Нет текстового описания
