Открытый узел

Oil Line, 2 SCV W/ Motor Return, W/ Front PTO

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE307714	4	Hyd. Quick-Connect Coupler	-
2	R120797	8	Snap Ring	-
3	RE567295	1	Cover	Coupler, Extend XIV
4	RE567296	1	Cover	Coupler, Retract XIV
5	RE567297	1	Cover	Coupler, Extend XV
6	RE567298	1	Cover	Coupler, Retract XV
7	38H5004	5	Adapter Fitting	-
8	T77932	13	O-Ring	-
9	51M7045	8	O-Ring	19.300 X 2.200 mm
10	38H5146	2	Elbow Fitting	-
11	38H5002	1	Adapter Fitting	-
12	T77613	4	O-Ring	-
13	51M7041	2	O-Ring	11.300 X 2.200 mm
14	38H5123	1	Tee Fitting	-
15	38H5124	1	Tee Fitting	-
16	RE343347	1	Oil Line	Front SCV to "A" Coupler
17	RE343348	1	Oil Line	Front SCV to "B" Coupler
18	RE561586	1	Oil Line	Front SCV Stack to Pressure Line
19	RE561587	1	Oil Line	Front SCV Stack to Return Line
20	RE570011	1	Oil Line	Front SCV Stack to Load Sense Line
21	RE561592	1	Oil Line	Pressure Supply Line
22	51M7048	1	O-Ring	29.600 X 2.900 mm
23	RE572804	1	Oil Line	Return Line
24	RE561594	1	Oil Line	Load Sense Line
25	38H5006	1	Adapter Fitting	-
26	H120847	2	Clamp	-
27	H121168	1	Plate	-
28	R551146	1	Bracket	-
29	19M7913	1	Screw	M8 X 90
30	R129325	4	Clamp	-
31	H112567	2	Plate	-
32	14M7298	1	Flange Nut	M8
33	19M7865	8	Screw	M8 X 16
34	RE561577	1	Oil Line	SCV 1 Front Extend Line
35	RE561578	1	Oil Line	SCV 1 Front Retract Line
36	RE572814	1	Oil Line	SCV 1 Rear Extend Line
37	RE572815	1	Oil Line	SCV 1 Rear Retract Line
38	R542278	1	Bracket	-
39	R542285	1	Bracket	-
40	19M7784	4	Screw	M10 X 20
41	19M7785	2	Screw	M10 X 25
42	RE557956	1	Hyd. Quick-Connect Coupler	-
43	R196768	1	Plug	-
44	R343080	1	Bracket	-
45	RE346505	1	Oil Line	Motor Return, Front Line
46	RE595450	1	Hydraulic Hose	Motor Return, INCLUDES T76938
47	T76938	4	O-Ring	-
48	RE346504	1	Oil Line	Motor Return, Mid Line
49	19M7801	1	Screw	M8 X 60
50	RE337296	1	Bracket	-
51	RE595441	1	Oil Line	Motor Return, Rear Line
52	24M7242	1	Washer	21.400 X 42 X 5 mm
53	19M7866	2	Screw	M8 X 20
54	19M9133	1	Cap Screw	M20 X 70

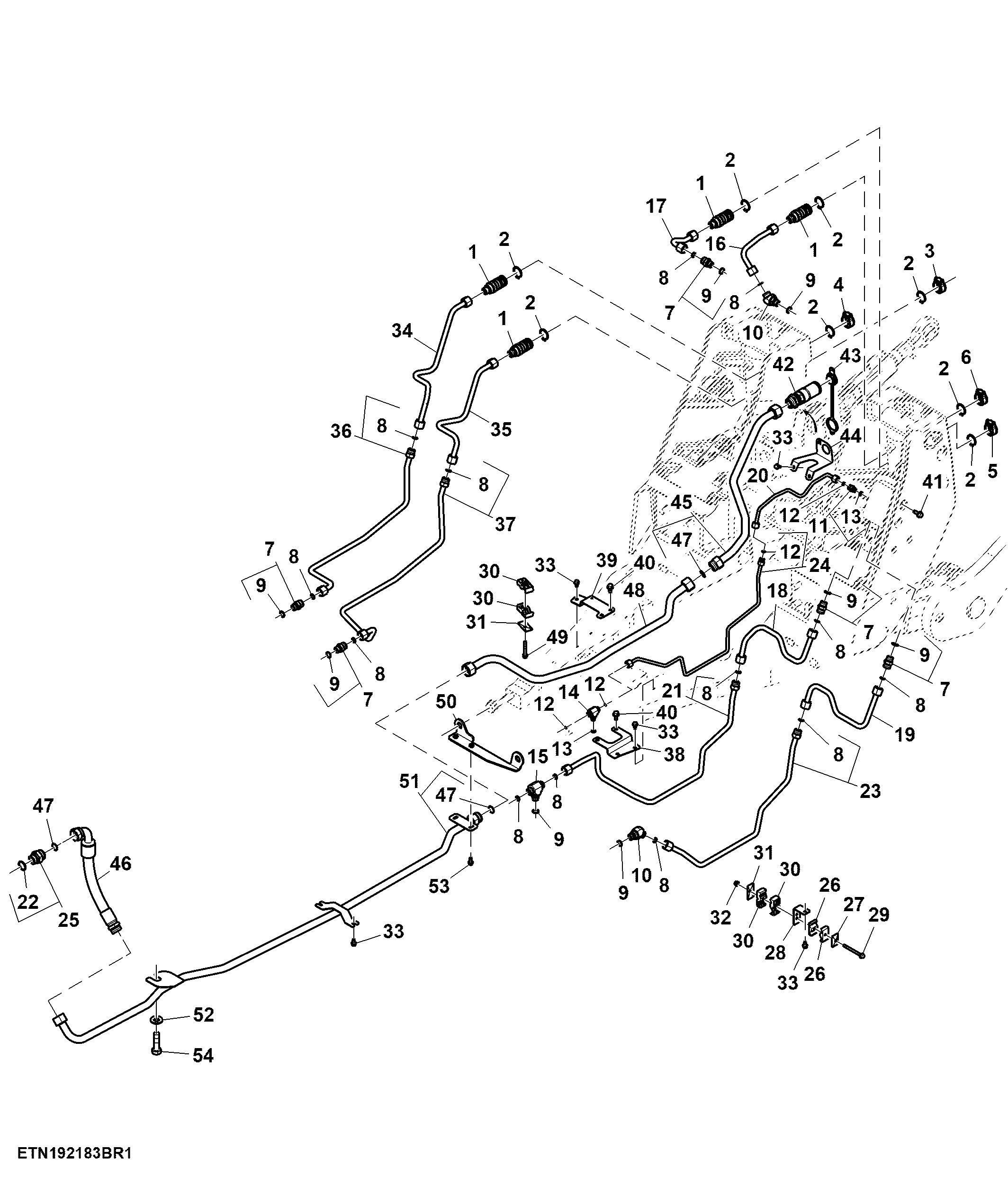

Oil Line, 2 SCV W/ Motor Return, W/ Front PTO
