Wiring Harness, Chassis, W/ AutoTrac™, MFWD, T2 / T3 Engine (2/4) (080001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE598193	1	Chassis Wiring Harness	-
2	RE258807	4	Tie Band	-
3	-	1	Part 3	ORDER RE598193
4	-	1	Part 4	ORDER RE598193
5	R44302	11	Tie Band	-
6	AL156697	1	Relay	-
7	57M9940	5	Elec. Connector Accessory	-
8	57M9825	1	Elec. Connector Housing	Right Rear Fender Interconnect 2, XX108-1
8	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10, 11, 12
9	57M9825	1	Elec. Connector Housing	Left Rear Fender Interconnect 2, XX109-1
9	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10, 11, 12
10	57M9821	1	Elec. Connector Housing	Front Camera, XX141-2
10	RWA11023	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
11	57M9804	1	Elec. Connector Housing	Right Fender Interconnect 1, XX118-1
11	57M9939	1	Elec. Connector Accessory	-
11	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
12	57M9804	1	Elec. Connector Housing	Left Rear Fender Light Interconnect, XX119-1
12	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
13	57M9213	1	Elec. Connector Housing	Cap, X116A
14	57M8910	1	Clip	-
15	57M8738	1	Elec. Connector Accessory	-
16	57M8730	1	Elec. Connector Housing	Chassis to Cab Interconnect, XX500-1
16	RWA11042	1	Repair Wire Assembly	Cavity 14, 34, 35, 56, 30, 12, 27, 26, 29, 28, 38, 39, 41, 8, 11, 3, 2, 1, 7, 5, 4
16	RWA11045	1	Repair Wire Assembly	Cavity 61
17	57M8233	1	Electrical Connector Assy	Implement Power Relay, KE100
17	57M10210	1	Elec. Connector Terminal	Cavity 3
17	57M10213	1	Elec. Connector Cable Seal	Cavity 3
17	RWA11174	1	Repair Wire Assembly	Cavity 2, 1
18	57M7555	1	Elec. Connector Housing	Implement ECU Relay, KE1
18	RWA11166	1	Repair Wire Assembly	Cavity 1, 4
18	RWA11093	1	Repair Wire Assembly	Cavity 2, 5
19	57M7262	1	Elec. Connector Housing	Implement Accessory, X116
19	RWA11083	1	Repair Wire Assembly	Cavity G, E, D, F, A, B, C, J, K, H
20	RWA11076	1	Repair Wire Assembly	Cavity A, B
20	R77476	1	Electrical Connector Assy	Front Washer Pump, M01
21	R77476	1	Electrical Connector Assy	Rear Washer Pump, M02
21	RWA11076	1	Repair Wire Assembly	Cavity A, B
22	R77476	1	Electrical Connector Assy	Right Washer Pump, M03
22	RWA11076	1	Repair Wire Assembly	Cavity A, B
23	57M13343	1	Elec. Connector Accessory	-
24	57M13340	1	Elec. Connector Housing	Chassis to Cab Interconnect 2, XX501-1
24	RWA11045	1	Repair Wire Assembly	Cavity 26, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25
24	RWA11042	1	Repair Wire Assembly	Cavity 3, 4, 5, 6, 7, 8, 11, 12, 13, 14
25	TCA51227	1	Relay	SUB FOR 57M12655
26	57M10747	3	Elec. Connector Accessory	-
27	57M10615	1	Elec. Connector Housing	Cab Controller J1, A107-1
27	RWA11030	1	Repair Wire Assembly	Cavity A1, H3, C3, F3, H4, B1, G1, J3, J4, D4, D2, F4, G4, E2, E3, C2, E4, E1, G3
27	RWA11032	1	Repair Wire Assembly	Cavity L2, M2, M3, M4, M1
28	57M10614	1	Elec. Connector Housing	Steering Control J2, A980-2
28	RWA11030	1	Repair Wire Assembly	Cavity A1, F1, C3, F2, H4, J1, C4, B2, B1, G1, G2, J3, J4, D3, A4, F4, J2, B4, G4, H1, K2, K3, E2, E3, H2, E1, G3, K1
28	RWA11032	1	Repair Wire Assembly	Cavity L1, L2, L3, L4, M2, M3, M4, M1
29	57M10613	2	Elec. Connector Housing	-
30	RWA11030	1	Repair Wire Assembly	Cavity C3, C4, D3, F2
30	RWA11032	1	Repair Wire Assembly	Cavity G4
30	57M10611	1	Elec. Connector Housing	Steering Control J3, A980-3
31	57M10605	1	Elec. Connector Housing	Steering Control J1, A980-1
31	RWA11030	1	Repair Wire Assembly	Cavity A1, A2, A4, B1, B2, B4, C4, D4, E2, E4, F2, F4
31	RWA11032	1	Repair Wire Assembly	Cavity G1, G2, G4, H3, H4
32	57M10604	2	Elec. Connector Housing	-
33	57M10401	1	Elec. Connector Accessory	-
34	57M10329	1	Elec. Connector Housing	Cab Controller J3, A107-3
34	RWA11030	1	Repair Wire Assembly	Cavity 10, 11, 15, 36, 43
34	RWA11032	1	Repair Wire Assembly	Cavity 6, 17, 18, 29, 30, 41, 42, 53
34	RWA11034	1	Repair Wire Assembly	Cavity 2, 3, 4
35	57M10308	1	Elec. Connector Accessory	-
36	57M10304	1	Elec. Connector Housing	XX208-1 Cap, XX208A
37	57M10303	1	Elec. Connector Housing	Trailer ABS, XX208-1
37	RWA11137	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
38	21M7400	2	Screw	M6 X 10

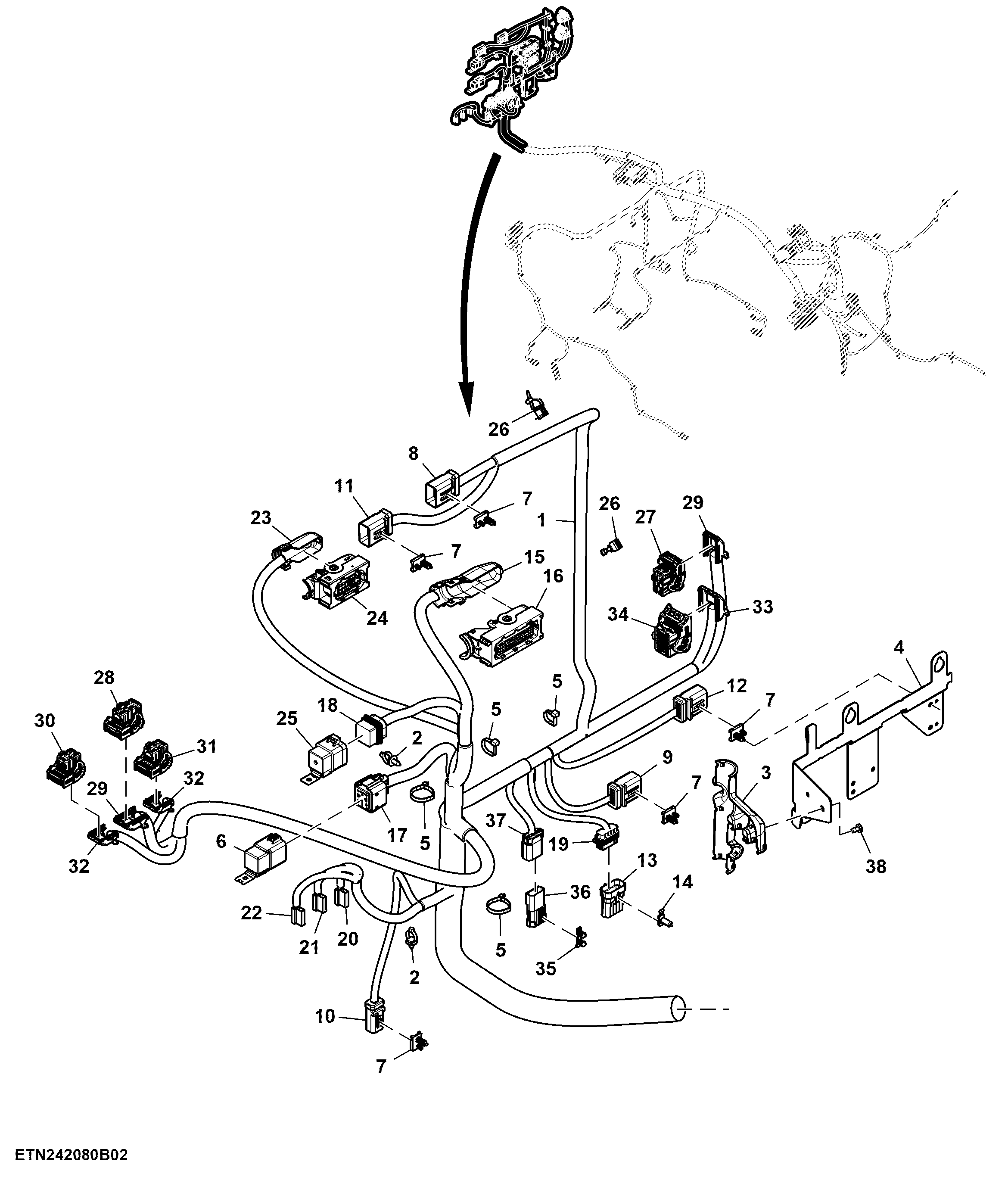

Wiring Harness, Chassis, W/ AutoTrac™, MFWD, T2 / T3 Engine (2/4) (080001 - )
