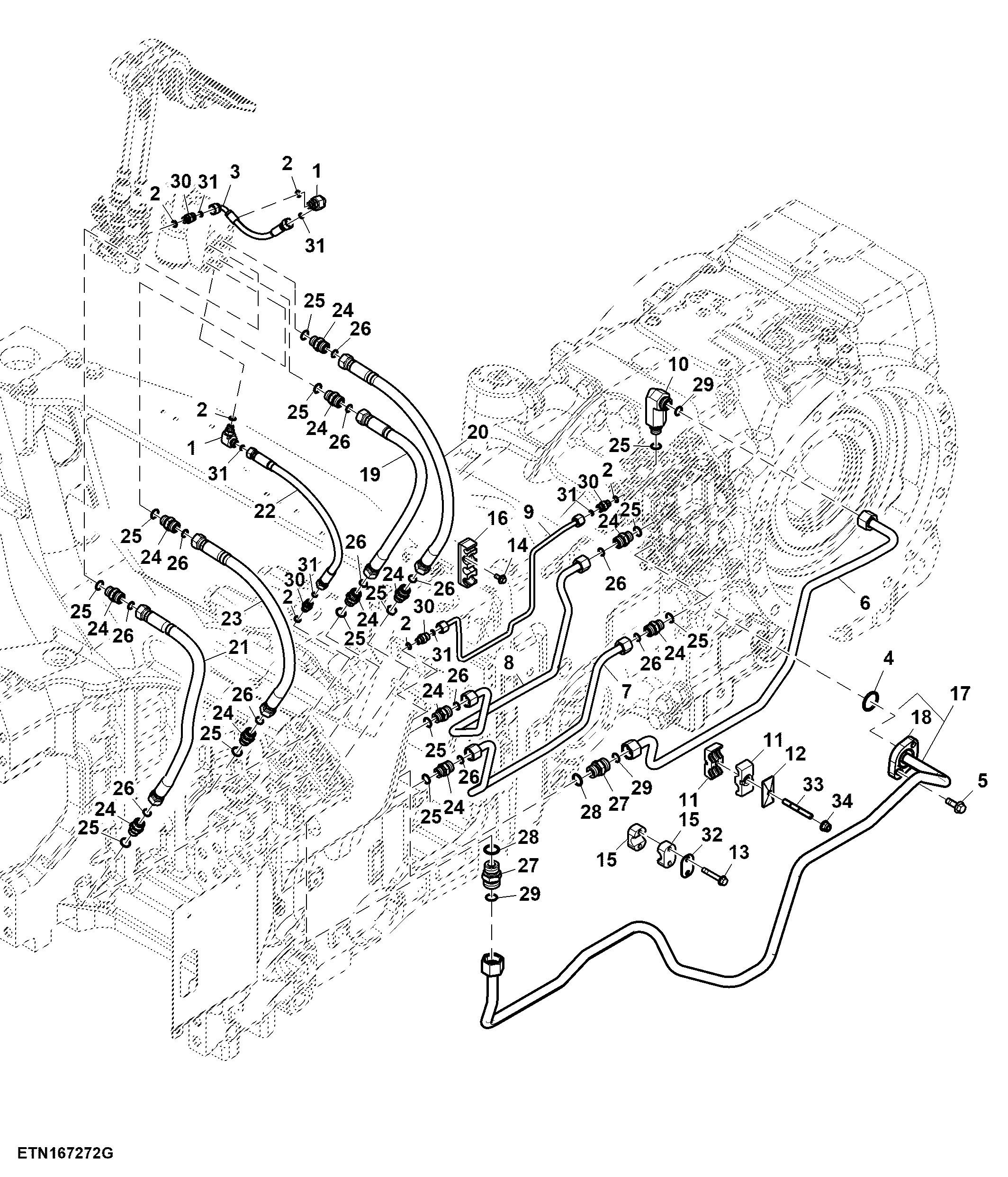

Oil Lines, Steering System, W/ AutoTrac™

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H5016	2	Elbow Fitting	INCLUDES 51M7041
2	51M7041	6	O-Ring	11.300 X 2.200 mm
3	RE584162	1	Hydraulic Hose	Brake Valve to Steering Valve
4	T78313	1	O-Ring	-
5	19M7786	2	Screw	M10 X 30
6	RE584156	1	Oil Line	Steering Supply
7	RE584144	1	Oil Line	Steering Line B, Rear
8	RE584143	1	Oil Line	Steering Line A, Rear
9	RE584155	1	Oil Line	Steering Load Sense
10	38H5390	1	Adapter Fitting	-
11	H135155	2	Clamp	-
12	H112567	1	Plate	-
13	19M7800	2	Screw	M8 X 50
14	R314966	4	Bolt	-
15	H114876	2	Clamp	ALSO ORDER R572241
16	R572004	2	Block Clamp	-
17	TA20227	1	Oil Line	Steering Return
18	R554635	1	Flange Fitting	-
19	RE594286	1	Hydraulic Hose	Steering B
20	RE594285	1	Hydraulic Hose	Steering A
21	RE594283	1	Hydraulic Hose	Steering Return
22	RE594422	1	Hydraulic Hose	Brake/ Steering Load Sense
23	RE594282	1	Hydraulic Hose	Steering Supply
24	38H5004	12	Adapter Fitting	INCLUDES 51M7045
25	51M7045	13	O-Ring	19.300 X 2.200 mm
26	T77932	12	O-Ring	-
27	38H5005	2	Adapter Fitting	INCLUDES 51M7047
28	51M7047	2	O-Ring	23.600 X 2.900 mm
29	T77858	3	O-Ring	-
30	38H5002	4	Adapter Fitting	INCLUDES 51M7041
31	T77613	6	O-Ring	-
32	R572241	1	Plate	-
33	14M7396	1	Lock Nut	M8
34	L221449	1	Stud	-

Oil Lines, Steering System, W/ AutoTrac™
