Открытый узел

Hydraulic Reservoir, W/ Additional Oil Takeout, Kit

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BRE10372	1	Reservoir Kit	-
2	R563862	1	Support	LH
3	R551429	2	Hydraulic Hose	LH and RH Auxiliary Tank To Differential Case
4	19M7789	4	Screw	M12 X 30
5	R566398	1	Bracket	LH
6	R566399	1	Bracket	RH
7	R346493	4	Block Clamp	-
8	19M7785	2	Screw	M10 X 25
9	RE52702	4	Clamp	-
10	H156922	6	Hose Clamp	-
11	R305041	4	Cover	-
12	R561583	1	Hydraulic Reservoir	Auxiliary Hydraulic Oil Reservoir, RH
13	R561585	1	Hydraulic Reservoir	Auxiliary Hydraulic Oil Reservoir, LH
14	RE566125	2	Breather	-
15	19M7798	4	Screw	M8 X 40
16	19M7792	4	Screw	M16 X 30
17	RE560433	2	Flange Fitting	-
18	R26863	4	O-Ring	-
19	19M8291	4	Screw	M8 X 35
20	R551430	2	Hose Guard	-
21	R339908	2	Hydraulic Hose	Vent Hose From Tank To Vent Line
22	R551434	2	Flange Fitting	-
23	RE255802	2	Clamp	-
24	R339907	1	Hydraulic Hose	RH Vent Hose From Tank To Tank
25	RE595442	1	Oil Line	Breather, Auxiliary Tank, LH
26	RE595424	1	Oil Line	Breather, Auxiliary Tank, RH
27	R563863	1	Support	RH
28	51M7045	2	O-Ring	19.300 X 2.200 mm

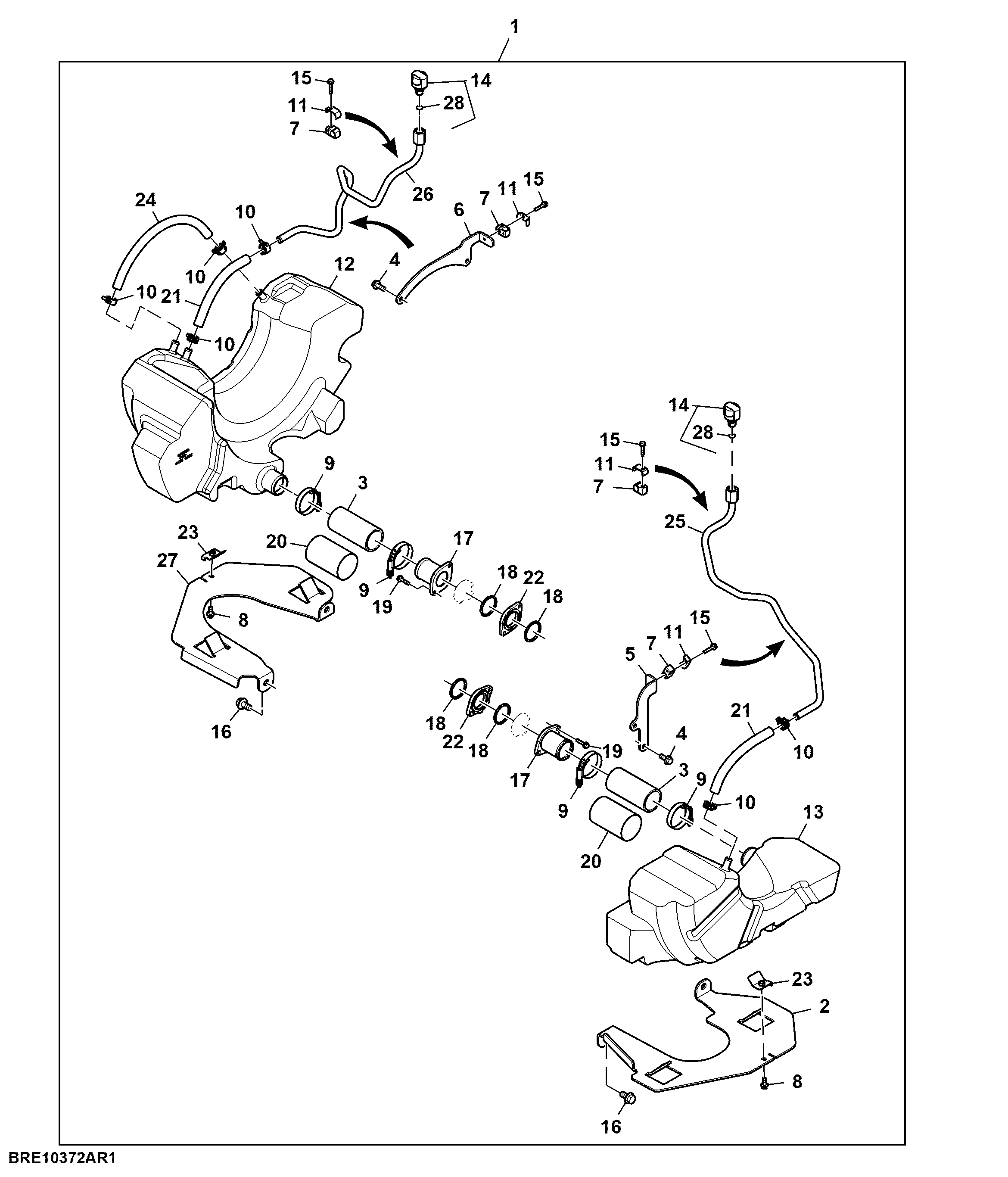

Hydraulic Reservoir, W/ Additional Oil Takeout, Kit

Нет текстового описания
