Открытый узел

Seat Suspension, Passive Seat

Seat Suspension, Passive Seat

Seat Suspension, Passive Seat

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

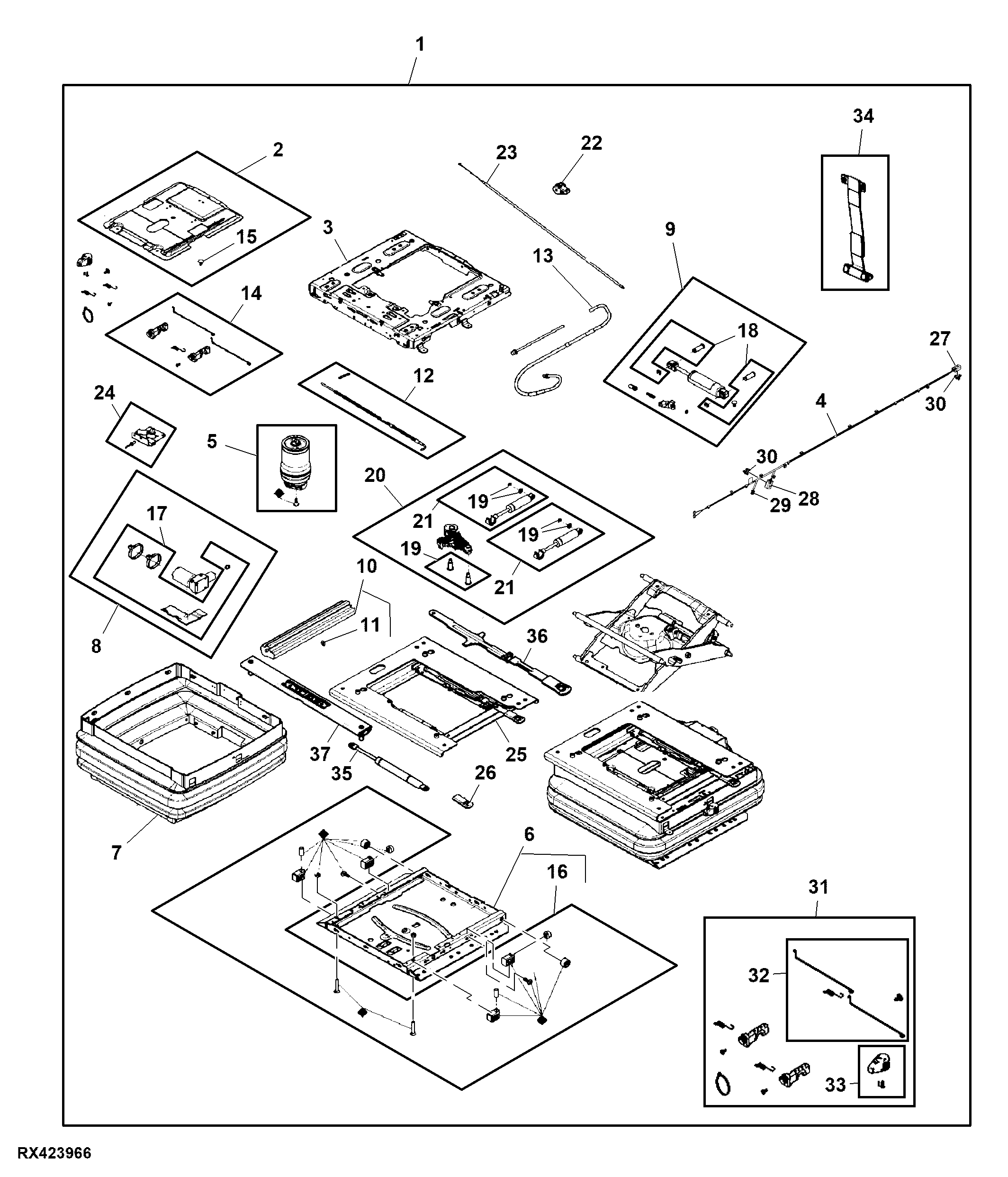

Seat Suspension, Passive Seat

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TA19562	1	Seat Suspension	-
1	RE595210	1	Seat Suspension	-
1	57M9796	1	Elec. Connector Housing	Armrest and Seat Top Outlet
1	57M9809	1	Elec. Connector Terminal	Armrest and Seat Top Outlet
1	57M9800	1	Elec. Connector Housing	Armrest and Seat Top Outlet
1	57M9939	2	Elec. Connector Accessory	Armrest and Seat Top and Air Seat Supply Outlet
1	57M9813	5	Elec. Connector Terminal	Armrest and Seat Top and Air Seat Supply Outlet
1	AL210891	1	Repair Kit	-
1	57M9804	1	Elec. Connector Housing	Armrest and Seat Top Outlet
2	RE592545	1	Cover Kit	-
3	AL224574	1	Seat Suspension	-
3	RE592560	1	Handle Kit	-
4	RE592551	1	Wiring Harness	-
5	AL210889	1	Spring	-
6	RE592552	1	Plate Kit	-
7	RE592553	1	Seat Suspension Boot Kit	-
8	AL210503	1	Compressor Kit	-
9	RE592554	1	Seat Shock Absorber Kit	-
10	AL226333	1	Reservoir	-
11	AL210900	1	Package Of Parts	Additional Air Reservoir
12	RE592555	1	Air Spring Seat Kit	Air Hose to Relief Valve
13	RE592558	1	Air Spring Seat Kit	Air Hose to External Reservoir
14	AL210899	1	Package Of Parts	-
15	RE592559	1	Cover Kit	-
16	AL210897	1	Package Of Parts	Suspension Lower Part
17	AL210894	1	Package Of Parts	Compressor
18	AL210892	1	Package Of Parts	Shock Absorber
19	AL210543	1	Package Of Parts	Longitudinal Suspension
20	AL224580	1	Shock Absorber	Fore/ AFT Isolator
21	AL210505	2	Shock Absorber	Longitudinal Suspension
22	RE592561	1	Handle Kit	Adjustable Damper
23	RE592562	1	Cable Kit	-
24	RE592563	1	Compressor Valve Kit	-
25	RE592564	1	Seat Attenuator Spring Kit	-
26	RE592565	1	Handle Kit	Lateral Suspension
27	57M9796	1	Elec. Connector Housing	XX930-2
27	RWA11023	1	Repair Wire Assembly	Cavity 1, 2, 7
27	RWA11025	1	Repair Wire Assembly	Cavity 3, 6
28	57M9804	1	Elec. Connector Housing	XX933-1
28	RWA11025	1	Repair Wire Assembly	Cavity 3, 9, 12
28	RWA11023	1	Repair Wire Assembly	Cavity 1, 7, 10
29	57M10452	1	Elec. Connector Housing	STVB1
29	57M14597	2	Elec. Connector Terminal	Cavity 1, 3
30	57M9940	1	Elec. Connector Accessory	USE WITH TA19562
31	TA19565	1	Seat Attenuator Spring Kit	Seat Actuation Spring kit, USE WITH TA19562
32	AL210898	1	Package Of Parts	Longitudnal Seat, USE WITH TA19562
33	TA19566	1	Seat Attenuator Spring Kit	Attenuation Spring/ Roller, Fore/ Aft Lockout System, USE WITH TA19562
34	TA17993	1	Seat Belt	Construction Tether, USE WITH TA19562
35	RE595648	1	Gas Operated Cylinder	Isolator, USE WITH TA19562
36	TA20373	1	Lever Kit	Lateral Attenuation Lockout Lever, USE WITH TA19562
37	RE595390	1	Rail	Attenuation Spring/ Roller Assembly, USE WITH TA19562
