Открытый узел

Battery Cables, W/ Battery Disconnect ( - 072000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE585729	1	Ground Cable	Length = 200 mm
2	RE596802	1	Chassis Wiring Harness	SUB FOR RE585727
3	19M7866	9	Screw	M8 X 20
4	R570344	2	Block Clamp	-
5	57M12140	1	Clamp	-
6	R96066	1	Cover	-
7	R135871	1	Elec. Connector Terminal	-
8	14M7298	5	Flange Nut	M8
9	R567104	1	Grommet	-
10	19M7798	2	Screw	M8 X 40
11	R187365	2	Nut	-
12	14M7400	1	Lock Nut	M10
13	RE593427	1	Battery Cable	Length = 2660 mm, INCLUDES (11) 57M8902
14	57M8902	21	Clip	-
15	RE593423	1	Battery Cable	Length = 2595 mm, INCLUDES (9) 57M8902, (2) RE566207, 57M12547
16	RE566207	2	Tie Band	-
17	57M12547	1	Elec. Connector Terminal	-
18	RE594411	1	Battery Cable	Length = 645 mm, INCLUDES RE258807
19	RE593450	1	Battery Cable	Length = 645 mm
20	RE593420	1	Battery Cable	Length = 2765 mm, INCLUDES (4) 57M14529, (6) 57M12014, (5) RE258807 AND 57M10421
21	RE258807	7	Tie Band	-
22	57M13298	1	Clamp	-
23	57M14529	4	Elec. Connector Accessory	-
24	57M12014	6	Elec. Connector Accessory	-
25	57M10421	1	Elec. Connector Accessory	-
26	RE593419	1	Battery Cable	Length = 1770 mm, INCLUDES 57M8902
26	TA22473	1	Battery Cable	Length = 1770 mm, INCLUDES 57M8902
27	RE593425	1	Battery Cable	Length = 380 mm, INCLUDES RE258807
28	57M12126	5	Clamp	-
29	R213663	1	Clamp	-

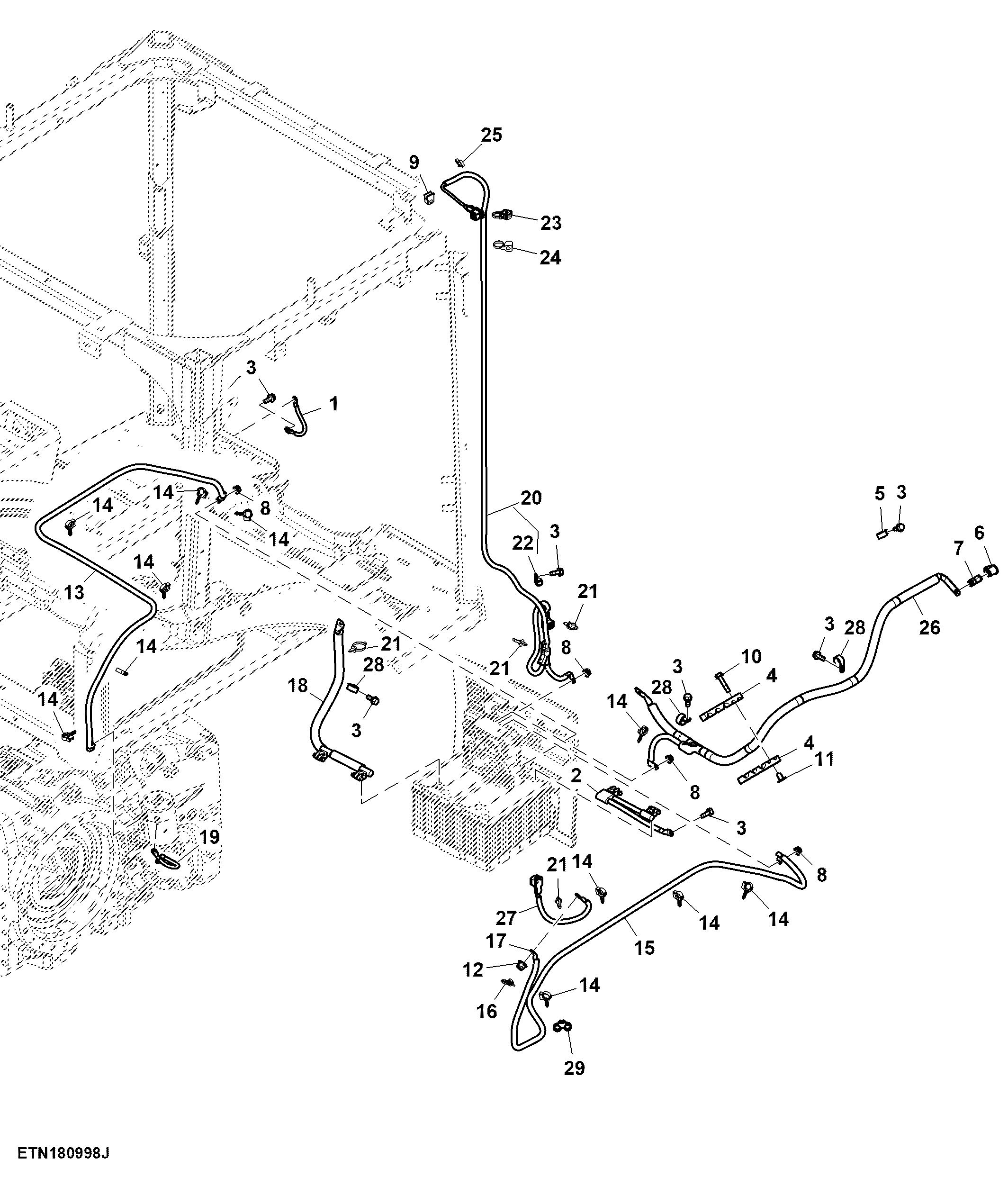

Battery Cables, W/ Battery Disconnect ( - 072000)

Нет текстового описания
