Открытый узел

Selective Control Valve, Front SCV 2, Attachment

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BRE10165	1	Selective Control Valve	-
2	R564727	1	Manifold	-
3	L173495	3	Stud	-
4	AL229870	1	Selective Control Valve	W/O Stepper Motor, SUB FOR AL213976
5	AL218230	1	Motor	-
6	19M8705	3	Screw	M6 X 65
7	AL231434	1	Valve Cover	SUB FOR AL206035
8	14M7273	3	Nut	M8
9	19M7785	2	Screw	M10 X 25
10	RE307714	2	Hyd. Quick-Connect Coupler	-
11	R120797	4	Snap Ring	-
12	RE567297	1	Cover	-
13	RE567298	1	Cover	-
14	38H5004	4	Adapter Fitting	-
15	T77932	12	O-Ring	-
16	51M7045	7	O-Ring	19.300 X 2.200 mm
17	38H5146	2	Elbow Fitting	-
18	38H5002	1	Adapter Fitting	-
19	T77613	5	O-Ring	-
20	51M7041	5	O-Ring	11.300 X 2.200 mm
21	38H5123	1	Tee Fitting	-
22	38H5124	1	Tee Fitting	-
23	RE343347	1	Oil Line	Front SCV to "A" Coupler
24	RE343348	1	Oil Line	Front SCV to "B" Coupler
25	RE561586	1	Oil Line	Front SCV Stack to Pressure Line
26	RE561587	1	Oil Line	Front SCV Stack to Return Line
27	RE570011	1	Oil Line	Load Sense Line
28	RE561592	1	Oil Line	Pressure Supply Line (W/ Front PTO), INCLUDES T77932
29	RE572804	1	Oil Line	Return Line (W/ Front PTO), INCLUDES T77932
30	RE561594	1	Oil Line	Load Sense Line (W/ Front PTO), INCLUDES T77613
31	RE564035	1	Oil Line	Pressure Supply Line (W/O Front PTO), INCLUDES T77932
32	RE564036	1	Oil Line	Load Sense Line (W/O Front PTO), INCLUDES T77613
33	RE564037	1	Oil Line	Return Line (W/O Front PTO), INCLUDES T77932
34	H120847	2	Clamp	-
35	H121168	1	Plate	-
36	R551146	1	Bracket	-
37	19M7913	1	Screw	M8 X 90
38	R129325	2	Clamp	-
39	H112567	1	Plate	-
40	14M7298	1	Flange Nut	M8
41	19M7865	1	Screw	M8 X 16
42	64M1017	3	Drain Plug	-
43	AL172968	1	Cap	-
44	AL172974	3	Fitting Plug	-
45	AL180447	2	Check Valve	Low Leak Ball Version
46	AL203292	2	Seal Kit	-
47	AL205619	1	Valve Kit	LS Shuttle, USE WITH AL213976
47	AL231130	1	Valve Kit	LS Shuttle, USE WITH AL229870
48	L205093	1	Clip	-
49	AL207509	1	Seal Kit	USE WITH AL206035 AND AL231434
49	AL207509	1	Seal Kit	USE WITH AL213976
49	AL231108	1	Seal Kit	USE WITH AL229870
50	AL209465	1	Valve Spool	Pressure Compensator
51	AL209466	1	Fitting Plug	-
52	AL214530	2	Spool Kit	-
53	L209245	1	Compression Spring	-
54	AL209467	1	Seal Kit	USE WITH AL213976
54	AL231435	1	Seal Kit	USE WITH AL229870
55	AL207508	1	Seal Kit	USE WITH AL206035

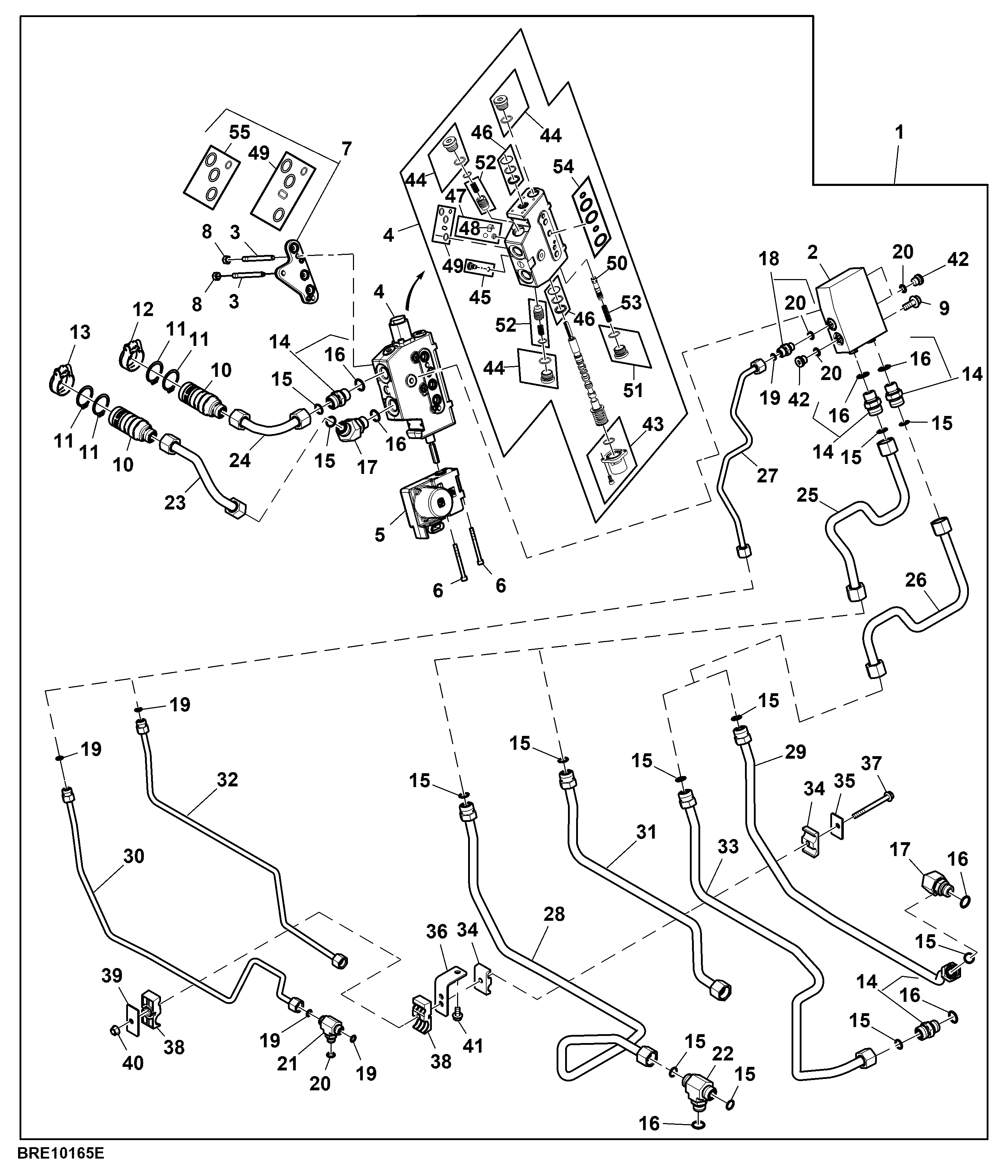

Selective Control Valve, Front SCV 2, Attachment
