Открытый узел

Wiring Harness, Selective Control Valve, 6 Rear SCV, W/ Hitch (072001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R571566	1	Bracket	-
2	19M7866	5	Screw	M8 X 20
3	RE598154	1	Chassis Wiring Harness	-
4	57M13605	1	Elec. Connector Housing	Main to Rear Chassis Interconnect, XX183-2
4	RWA11126	1	Repair Wire Assembly	Cavity B11, B2, B3, B4, B5, B6, B8, C1, C10, C11, C12, C2, C3, C4, C7, C8, C9, D1, D10, D11, D2, D3, D4, D5, D6, D7, D8, D9, E1, E10, E11, E12, E2, E3, E4, E5, E6, F10, F11, F12, F7
4	RWA11128	1	Repair Wire Assembly	Cavity A1, A2, G1, G2, G3
5	57M15378	1	Elec. Connector Accessory	-
6	57M7760	1	Electrical Connector Assy	Rear to Main Interconnect (IBBC PWR), XX186-2
6	57M7614	1	Elec. Connector Terminal	Cavity 1
7	57M7256	1	Elec. Connector Housing	Chassis to Backup Alarm Harness Interconnect, XX014-1
7	57M7259	1	Elec. Connector Seal	-
7	RWA11082	1	Repair Wire Assembly	Cavity A, B
8	R78053	1	Electrical Connector Assy	-
9	57M7254	1	Elec. Connector Housing	-
10	57M8924	1	Elec. Connector Housing	Solenoid Rear Diff Lock, Y666
10	RWA11097	1	Repair Wire Assembly	Cavity A, B
11	57M9780	1	Elec. Connector Housing	Sensor Speed Wheel Primary, B517
11	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
12	57M9847	3	Elec. Connector Accessory	-
13	57M11334	5	Elec. Connector Accessory	-
14	57M9780	1	Elec. Connector Housing	Rear Chassis to Draft Sensor Extension Harness Interconnect, XX721-1
14	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
15	57M15917	2	Elec. Connector Accessory	-
16	57M7567	1	Elec. Connector Terminal	GND Chassis Rear, XGND4
17	57M9792	1	Elec. Connector Housing	Rear Chassis to Air Brake Interconnect, XX185-1
17	RWA11029	1	Repair Wire Assembly	Cavity 1, 3, 4, 5, 6, 7, 8
18	57M15921	1	Elec. Connector Accessory	-
19	57M11337	1	Elec. Connector Accessory	-
20	57M9780	1	Elec. Connector Housing	Sensor Pressure Hydraulic Trailer Control, B257
20	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
21	57M9786	1	Elec. Connector Housing	Sensor Position Rockshaft, B698
21	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
22	57M10229	1	Elec. Connector Accessory	-
23	57M10299	1	Elec. Connector Housing	Chassis to Rear Trailer Light Extension Harness Interconnect, XX016-1
23	RWA11137	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8
24	57M11374	1	Elec. Connector Accessory	-
25	57M9780	1	Elec. Connector Housing	Sensor Speed Wheel Secondary, B516
25	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
26	57M9780	1	Elec. Connector Housing	Sensor Pressure Yellow Coupler, B770
26	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
27	57M10156	1	Elec. Connector Accessory	-
28	57M7614	2	Elec. Connector Terminal	Cavity 1, 3
28	57M16249	1	Elec. Connector Housing	Connector Implement IBBC Rear, X221
28	RWA11118	1	Repair Wire Assembly	Cavity 2, 4
29	57M8016	1	Elec.Connect Locking Device	-
29	RWA11058	1	Repair Wire Assembly	Cavity 2, 4
29	57M10530	1	Elec. Connector Housing	Terminator Implement CAN Active, A914
30	57M7254	1	Elec. Connector Housing	Solenoid Hyd Trailer Brake Leak Detection, Y722
30	57M7259	1	Elec. Connector Seal	-
30	RWA11083	1	Repair Wire Assembly	Cavity A, B
31	57M7256	1	Elec. Connector Housing	-
32	RE12363	1	Electrical Connector Assy	Switch Implement NC, S549
32	RWA11147	1	Repair Wire Assembly	Cavity A, B
33	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
33	57M9780	1	Elec. Connector Housing	Sensor Speed Rear PTO, B696
34	57M8924	1	Elec. Connector Housing	Solenoid Two Speed RPTO, Y499
34	57M9446	1	Elec. Connector Seal	-
34	57M11380	1	Elec. Connector Accessory	-
34	RWA11097	1	Repair Wire Assembly	Cavity A, B
35	57M9556	1	Elec. Connector Accessory	-
36	57M9222	1	Elec. Connector Housing	-
37	57M9498	1	Elec. Connector Housing	SCV 1, A701
37	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
38	57M11897	7	Elec. Connector Accessory	-
39	57M9498	1	Elec. Connector Housing	SCV 3, A703
39	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
40	57M9498	1	Elec. Connector Housing	SCV 4, A704
40	57M7401	1	Elec. Connector Cavity Plug	-
40	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
41	57M11354	3	Elec. Connector Housing	-
42	57M9498	1	Elec. Connector Housing	SCV 6, A706
42	57M7401	1	Elec. Connector Cavity Plug	-
42	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
43	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
43	57M7401	1	Elec. Connector Cavity Plug	-
43	57M9498	1	Elec. Connector Housing	SCV 5, A705
44	57M9498	1	Elec. Connector Housing	Valve Rear Hitch, A800
44	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
45	57M9498	1	Elec. Connector Housing	SCV 2, A702
45	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
46	RE258807	6	Tie Band	-
47	57M12124	1	Clamp	-
48	57M12123	1	Clamp	-
49	57M10092	6	Elec. Connector Accessory	-
50	R568227	3	Clip	-
51	57M8633	1	Elec. Connector Accessory	-

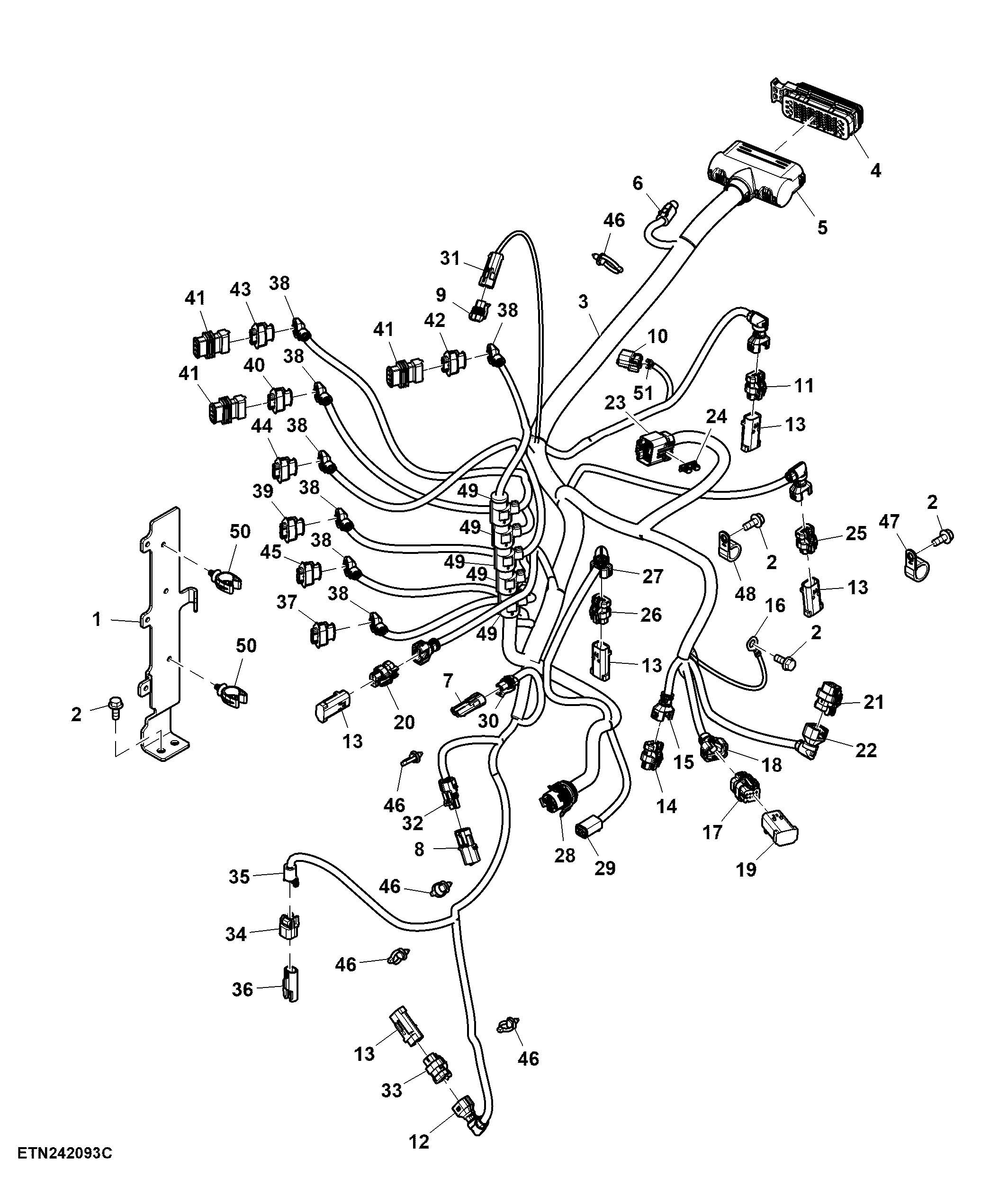

Wiring Harness, Selective Control Valve, 6 Rear SCV, W/ Hitch (072001 - )
