Открытый узел

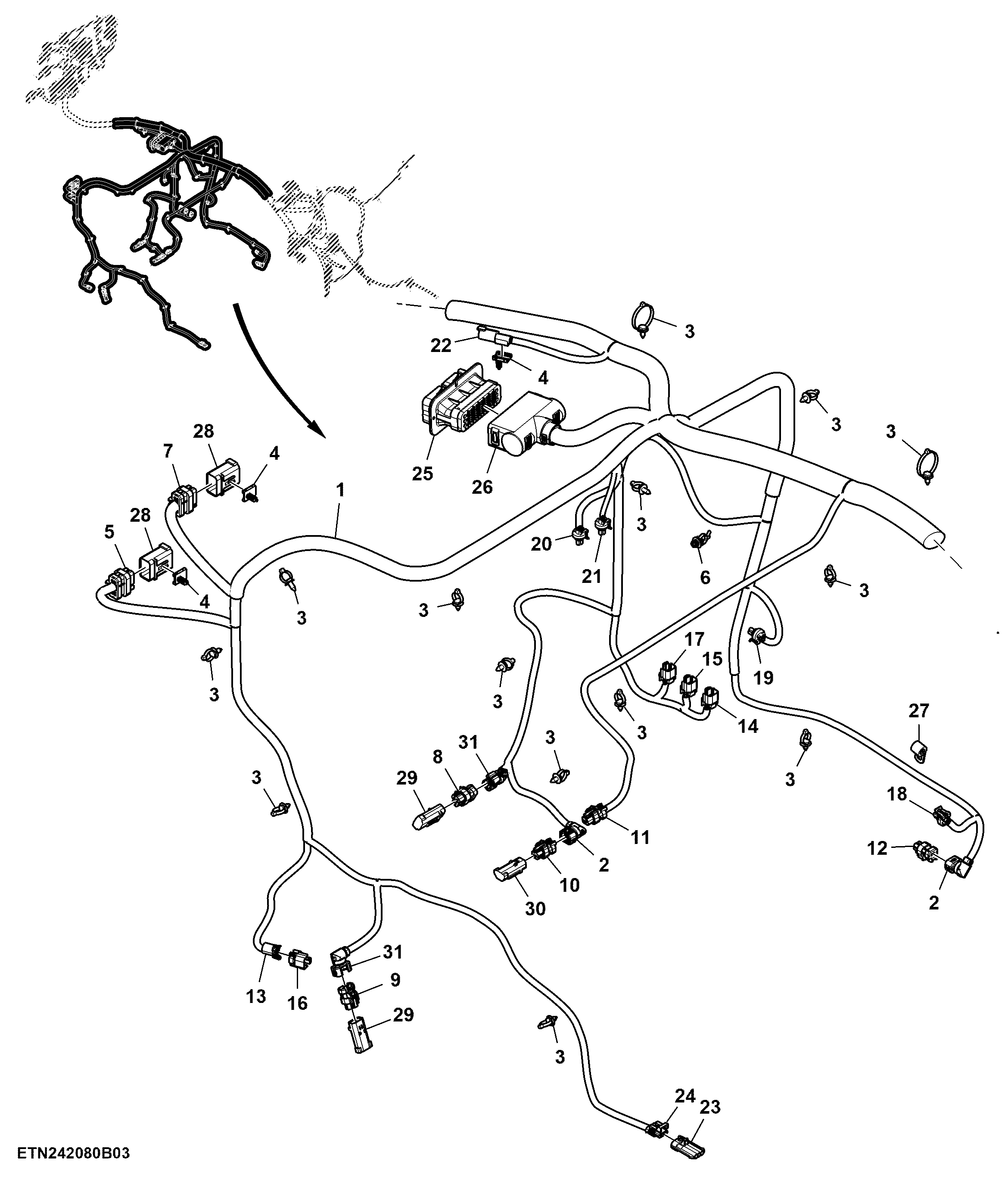

Wiring Harness, Chassis, W/ AutoTrac™, MFWD, T2 / T3 Engine (3/4) (072001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE598193	1	Chassis Wiring Harness	-
2	57M10155	2	Elec. Connector Accessory	-
3	RE258807	36	Tie Band	-
4	57M9939	3	Elec. Connector Accessory	-
5	57M9802	1	Elec. Connector Housing	Interconnect 2 Combo Valve, XX059-1
5	RWA11029	1	Repair Wire Assembly	Cavity 4, 11, 12
6	57M13016	1	Elec. Connector Accessory	-
7	57M9800	1	Elec. Connector Housing	Combo Valve Interconnect, XX058-1
7	RWA11029	1	Repair Wire Assembly	Cavity 2, 4, 5, 6, 9, 10, 11
8	57M9780	1	Elec. Connector Housing	Diff Case Oil Presence, B555
9	57M9780	1	Elec. Connector Housing	Hydraulic Charge Pressure, B717
9	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
10	57M9775	1	Elec. Connector Housing	Rear PTO Speed 1000, B696
10	RWA11027	1	Repair Wire Assembly	Cavity 1
11	RWA11027	1	Repair Wire Assembly	Cavity 1, 2
11	57M9772	1	Elec. Connector Housing	Fuel Level, B692
12	57M9773	1	Elec. Connector Housing	Hydraulic Oil Temp, B694
12	RWA11027	1	Repair Wire Assembly	Cavity 1, 2
13	57M9556	1	Elec. Connector Accessory	-
14	57M9210	1	Elec. Connector Housing	Steer 1 Left, Y748
14	57M8633	1	Elec. Connector Accessory	-
14	RWA11097	1	Repair Wire Assembly	Cavity A, B
15	57M9210	1	Elec. Connector Housing	Steer 1 Right, Y749
15	57M8633	1	Elec. Connector Accessory	-
15	RWA11097	1	Repair Wire Assembly	Cavity A, B
16	57M8924	1	Elec. Connector Housing	Rear PTO Solenoid, Y500
16	57M8633	1	Elec. Connector Accessory	-
16	RWA11097	1	Repair Wire Assembly	Cavity A, B
17	57M8924	1	Elec. Connector Housing	Steer 1 Off, Y747
17	RWA11097	1	Repair Wire Assembly	Cavity A, B
17	57M8633	1	Elec. Connector Accessory	-
18	57M8625	1	Elec. Connector Housing	Hydraulic Oil Filter Restriction Sensor, B552
18	57M8624	1	Elec.Connect Locking Device	-
18	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
19	57M8625	1	Elec. Connector Housing	Backup Pump Pressure, B263_AT
19	57M8624	1	Elec.Connect Locking Device	-
19	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
20	57M8625	1	Elec. Connector Housing	Main Hydraulic Pump Pressure 1, B261_AT
20	57M8624	1	Elec.Connect Locking Device	-
20	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
21	57M8625	1	Elec. Connector Housing	Main Hydraulic Pump Pressure 2, B262
21	57M8624	1	Elec.Connect Locking Device	-
22	57M7761	1	Elec. Connector Housing	IBBC Power, XX186-1
23	57M7257	1	Elec. Connector Housing	RADAR Cap, XX201A
23	57M7290	1	Elec. Connector Accessory	-
24	57M7255	1	Elec. Connector Housing	Radar Interconnect, XX201-1
24	57M7290	1	Elec. Connector Accessory	-
24	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
25	57M14781	1	Elec. Connector Housing	Main to Rear Interconnect, XX183-1
25	RWA11129	1	Repair Wire Assembly	Cavity G3, G2, A2, A1
25	RWA11127	1	Repair Wire Assembly	Cavity F11, F10, F7, E12, E11, E10, E4, E3, E2, E1, D11, D10, D9, D5, D4, C10, C9, C8, C7, D2, D1, C3, C2, C12, D8, C1, B11, D7, D6, B8, B6, B5, B4, B3, B2
26	57M13948	1	Elec. Connector Accessory	-
27	57M12128	1	Clamp	-
28	57M11338	2	Elec. Connector Accessory	-
29	57M11334	2	Elec. Connector Accessory	-
30	57M11333	1	Elec. Connector Accessory	-
31	57M10156	2	Elec. Connector Accessory	-

Wiring Harness, Chassis, W/ AutoTrac™, MFWD, T2 / T3 Engine (3/4) (072001 - )

Нет текстового описания
