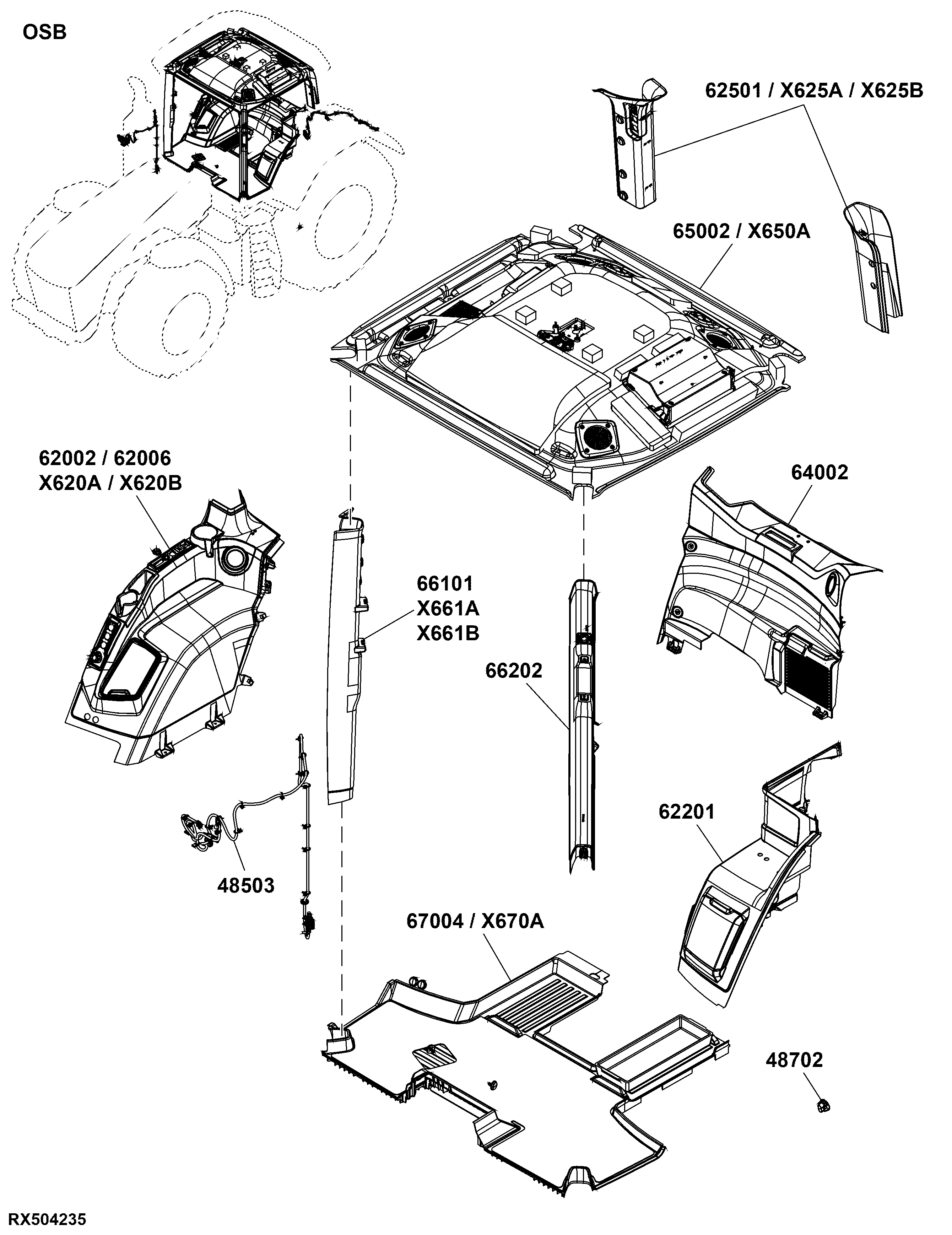

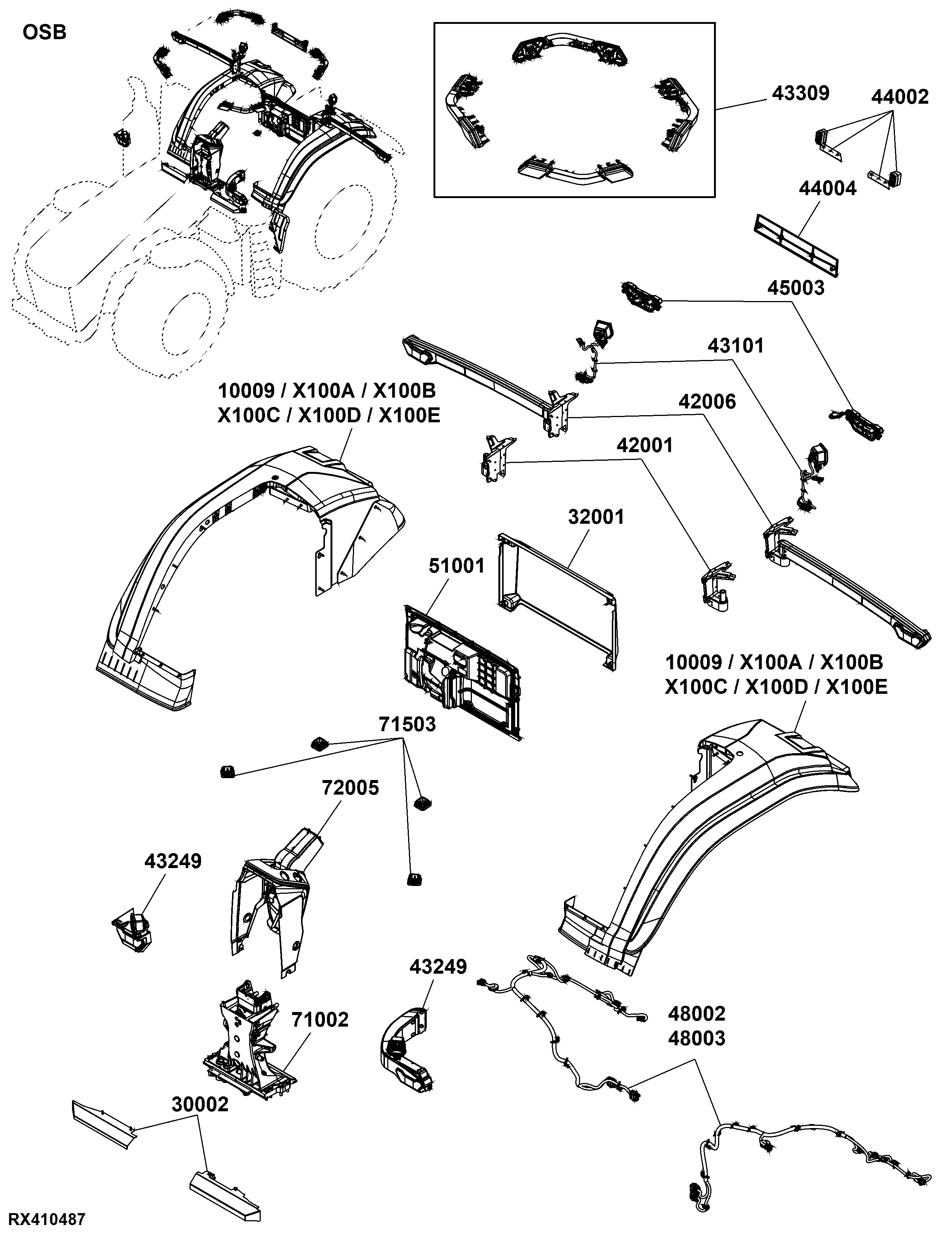

OSB Operator Station Attaching Parts

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Rear Fender, Short Wrap Extension, 2250 mm (LH Illustrated)	-
-	-	1	Lamp, Roof Work Lights, Halogen (For Europe, CIS, North Africa, Near and Middle East)	-
-	-	1	Mounting Parts, W/O License Plate	-
-	-	1	Panel, Cab Riser	-
-	-	1	Pipe Plug, ROPS Post	-
-	-	1	Plug, W/O External Service Light	-
-	-	1	Rear Cab Panel	-
-	-	1	Rear Fender Extension, 2250 mm, Attachment	-
-	-	1	Rear Fender Extensions, 3 m, Kit	-
-	-	1	Rear Fender Work Lights, 2 Halogen, LH Illustrated	-
-	-	1	Rear Fender, Long Wrap Extension, 2550 mm, Attachment	-
-	-	1	Lamp, License Plate	-
-	-	1	Self Leveling Cup Holder, Attachment	-
-	-	1	Single Display Mounting Bracket, Attachment	-
-	-	1	Support, Extremity Lights	-
-	-	1	Support, Front Control	-
-	-	1	Tablet Mounting Bracket W/ 1.5” Ball, Attachment	-
-	-	1	Tail lamp, Rear Fender	-
-	-	1	Wiring Harness, Midbody Flood Lights, 2 Halogen/ 2 LED/ 4 LED, W/ Midbody Marker Lights, 9L T2/ T3 Engine	-
-	-	1	Wiring Harness, Standard/ Extended Fender Light, Rear Fender Extension 2100 mm ( - 072000)	-
-	-	1	Wiring Harness, Standard/ Extended Fender Light, Rear Fender Extension 2550 mm, 2750 mm (072001 - )	-
-	-	1	Attachment, Rear Fender, Short Wrap Extension, 2750 mm	-
-	-	1	Acoustical Upholstery, A-Post, W/O Tweeter, LH	-
-	-	1	Acoustical Upholstery, A-Post, W/O Tweeter, RH	-
-	-	1	Acoustical Upholstery, C-Post	-
-	-	1	Acoustical Upholstery, LH	-
-	-	1	Acoustical Upholstery, Rear Panel	-
-	-	1	Acoustical Upholstery, W/O Pickup Hitch, Manual Wagon Hitch, RH	-
-	-	1	Acoustical Upholstery, W/O Pickup Hitch, W/O Radio (072001 - )	-
-	-	1	Adapter Fitting, Convenience Outlet, Attachment (For North America)	-
-	-	1	Attachment, Rear Fender, Long Wrap Extension, 2750 mm	-
-	-	1	Accessory Mounting Bracket Kit, Short RH Front or Rear	-
-	-	1	Bracket, Cell Phone Mounting, Attachment	-
-	-	1	CommandARM™ Bracket, Attachment	-
-	-	1	Cover, Rear Cab Panel	-
-	-	1	Cowl	-
-	-	1	Floormat, W/O Footrest ( - 125002)	-
-	-	1	Footrest, Kit	-
-	-	1	Front Midbody Flood Lights, 2 Halogen, W/ Midbody Marker Lights (For EAEU)	-
-	-	1	Headliner	-
-	-	1	Lamp, Extremity Lights, Medium Arms, LH Illustrated (For Europe, CIS, North Africa, Near and Middle East)	-

OSB Operator Station Attaching Parts

Нет текстового описания
