Открытый узел

Manifold, PST, W/ MFWD

Manifold, PST, W/ MFWD

Manifold, PST, W/ MFWD

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

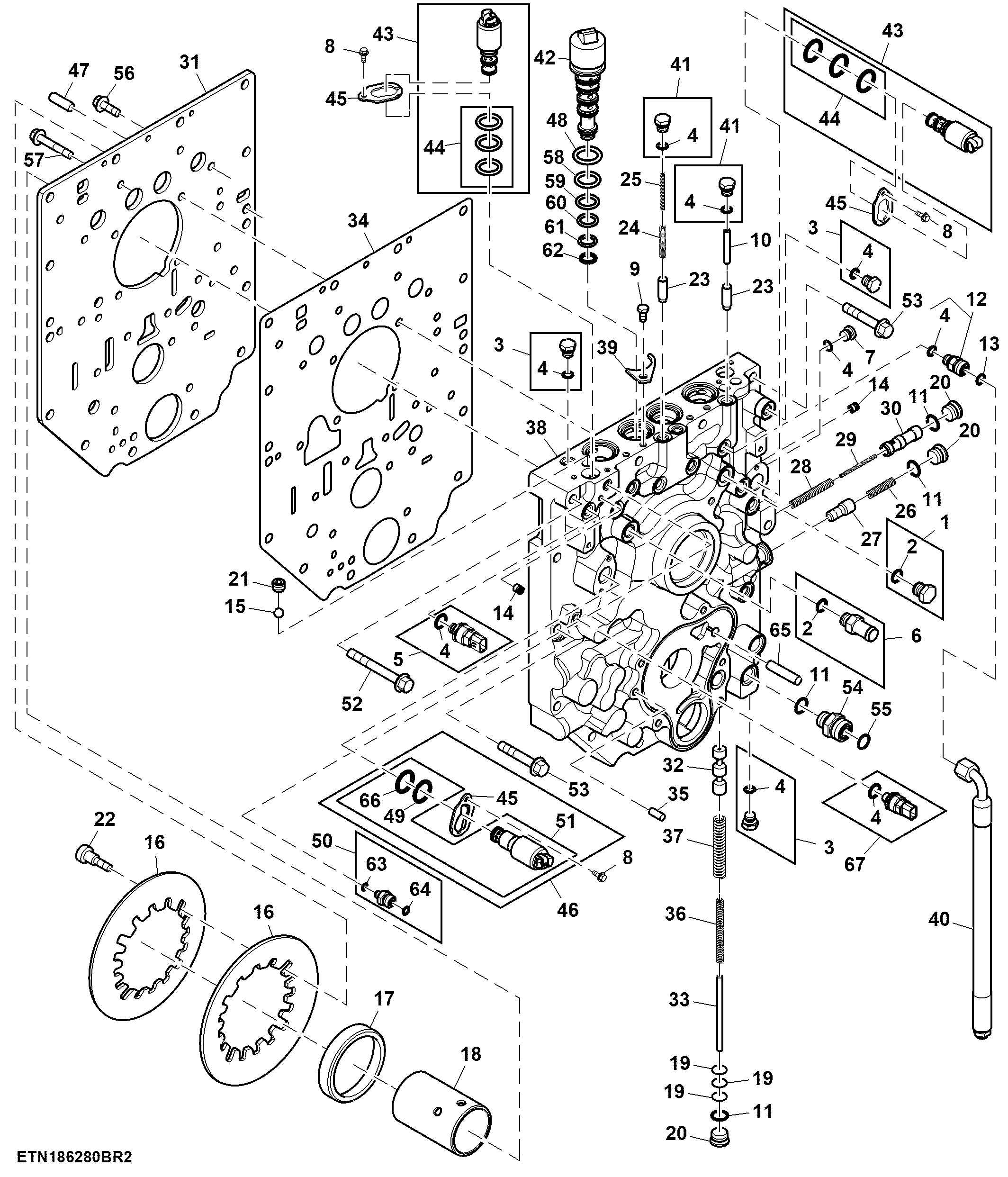

Manifold, PST, W/ MFWD

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE46685	1	Fitting Plug	-
2	51M7043	2	O-Ring	15.300 X 2.200 mm
3	RE46684	10	Fitting Plug	-
4	51M7041	15	O-Ring	11.300 X 2.200 mm
5	RE584415	1	Pressure Sensor	Park Brake Pressure, B707
6	RE223628	1	Fitting	-
7	15M7076	1	Drain Plug	-
8	19M7775	8	Screw	M6 X 16
9	19M7932	4	Cap Screw	M8 X 16
10	34M7050	1	Spring Pin	8 X 55 mm
11	51M7045	5	O-Ring	19.300 X 2.200 mm
12	38H5009	1	Adapter Fitting	-
13	T77857	1	O-Ring	-
14	AT107510	2	Plug	-
15	D2361R	1	Ball	-
16	R105833	2	Disk Spring	-
17	R108547	1	Bearing Cup	-
18	R108576	1	Sleeve	-
19	R115504	1	Solid Shim	TK = 0.76 mm
20	R116115	3	Fitting	-
21	R125064	3	Pipe Plug	-
22	R125379	4	Self-Locking Screw	-
23	R155963	3	Valve	-
24	R155964	2	Compression Spring	-
25	R156765	2	Compression Spring	-
26	R160833	1	Compression Spring	-
27	R160835	1	Valve Spool	Hydraulic Oil Cooler Relief Valve, V640
28	R163320	1	Compression Spring	-
29	R163321	1	Compression Spring	-
30	R170181	1	Pressure Relief Valve	Lube Pressure Relief Valve, V721
31	R343090	1	End Plate	-
32	R176681	1	Valve	Transmission Pressure Regulating Valve, V12
33	R186745	1	Pin	-
34	R343089	1	Gasket	-
35	R28671	2	Dowel Pin	-
36	R307869	1	Spring	-
37	R307871	1	Spring	-
38	RE573265	1	Manifold Kit	INCLUDES (2) R28671, (2) T26565, R115233, (2) AT107510, R108547 AND R108576
39	R95045	4	Clamp	-
40	RE154411	1	Hose	Flexible Oil Line
41	RE157055	3	Fitting Plug	-
42	RE177539	1	Valve	A Brake (AB) Solenoid, INCLUDES R106663, U11326, R62070, R27928 AND R151701, ALSO ORDER U41966 ; Y689
42	RE177539	1	Valve	B Clutch (BC) Solenoid, INCLUDES R106663, U11326, R62070, R27928 AND R151701, ALSO ORDER U41966 ; Y690
42	RE177539	1	Valve	C Clutch (CC) Solenoid, INCLUDES R106663, U11326, R62070, R27928 AND R151701, ALSO ORDER U41966 ; Y691
42	RE177539	1	Valve	D Clutch (DC) Solenoid, INCLUDES R106663, U11326, R62070, R27928 AND R151701, ALSO ORDER U41966 ; Y693
43	RE211157	1	Solenoid Valve	Park Brake Supply Solenoid, Y633
43	RE211157	1	Solenoid Valve	MFWD Solenoid, Y665
43	RE211157	1	Solenoid Valve	Park Sump Block Solenoid, Y695
44	RE47392	3	O-Ring Kit	-
45	R211082	4	Clamp	-
46	RE577637	1	Solenoid Valve	Park Sump Block Solenoid, Y670
47	T26565	2	Dowel Pin	-
48	U41966	4	O-Ring	-
49	51M7085	1	O-Ring	19 X 2 mm
50	RE524399	1	Adapter Fitting	-
51	RE577638	1	Solenoid Valve	-
52	R546148	4	Screw	-
53	R546150	10	Screw	-
54	38H5121	2	Adapter Fitting	-
55	T77858	2	O-Ring	-
56	19M9214	12	Screw	M10 X 30
57	R546146	2	Screw	-
58	R106663	4	O-Ring	-
59	U11326	4	O-Ring	-
60	R62070	4	Ring	-
61	R27928	4	O-Ring	-
62	R151701	4	O-Ring	-
63	51M7039	1	O-Ring	8.100 X 1.600 mm
64	T77613	1	O-Ring	-
65	R115233	1	Shaft	-
66	-	1	Part 71	ORDER RE47392
67	RE584415	1	Pressure Sensor	Transmission System 2 Pressure, B727
