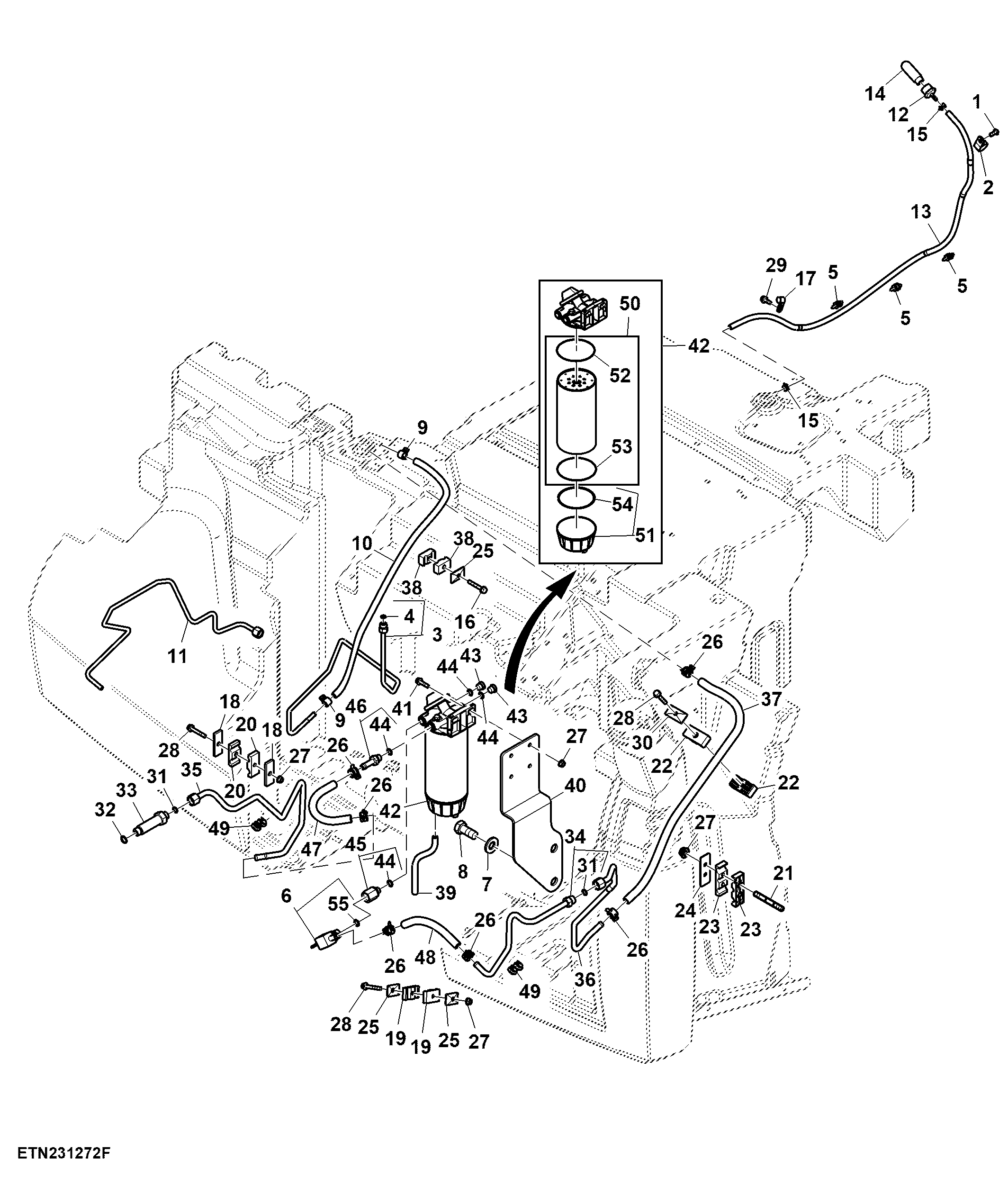

Fuel Line, W/ Water Separator, T2/T3 Engine ( - 072000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R216838	1	Screw	-
2	T27550	1	Clip	-
3	RE583076	1	Line	Fuel Return to Tank
4	T77613	1	O-Ring	-
5	RE258807	3	Tie Band	-
6	RE287835	1	Valve	Shut-Off Valve
7	24M7242	2	Washer	21.400 X 42 X 5 mm
8	19M7950	2	Cap Screw	M20 X 45
9	R202160	2	Clamp	-
10	R562711	1	Hose	Fuel Return
11	RE596177	1	Line	Fuel Cooler Supply
12	H217849	1	Fitting	-
13	R565558	1	Fuel Hose	Vent
14	H216169	1	Breather	-
15	R56101	2	Clip	-
16	R106825	1	Screw	M8 X 50
17	57M9860	1	Clamp	-
18	R221778	2	Plate	-
19	H135156	2	Clamp	-
20	R318378	2	Half Clamp	-
21	L221449	2	Stud	-
22	Z81375	4	Block Clamp	-
23	R564101	2	Block Clamp	-
24	RE596241	1	Bracket	-
25	H121168	3	Plate	-
26	R184863	6	Hose Clamp	-
27	14M7298	6	Flange Nut	M8
28	19M7800	4	Screw	M8 X 50
29	19M7866	1	Screw	M8 X 20
30	H112567	2	Plate	-
31	T77857	2	O-Ring	-
32	51M7043	1	O-Ring	15.300 X 2.200 mm
33	R566866	1	Adapter Fitting	-
34	RE596247	1	Line	Rear, W/ Water Separator
35	RE594002	1	Line	Front, W/ Water Separator
36	RE594128	1	Line	Fuel Supply, Rear
37	R569658	1	Hose	Fuel Supply
38	T43348	2	Clamp	-
39	R561789	1	Hose	Drain
40	R571629	1	Bracket	-
41	19M7868	2	Screw	M8 X 30
42	AT387542	1	Filter	Fuel Filter Assembly
43	L41726	2	Pipe Plug	-
44	51M7042	4	O-Ring	13.300 X 2.200 mm
45	R558020	1	Fitting	-
46	RE584527	1	Pipe Plug	-
47	R571650	1	Fuel Hose	Filter Supply and Return
48	R571651	1	Fuel Hose	Supply to Filter
49	RE595242	3	Clamp	-
50	AT365869	1	Filter Element	-
51	AT387545	1	Sediment Bowl	-
52	R501388	1	Packing	-
53	R525910	1	Packing	-
54	R501632	1	Packing	-
55	51M7097	1	O-Ring	18 X 2.500 mm

Fuel Line, W/ Water Separator, T2/T3 Engine ( - 072000)
