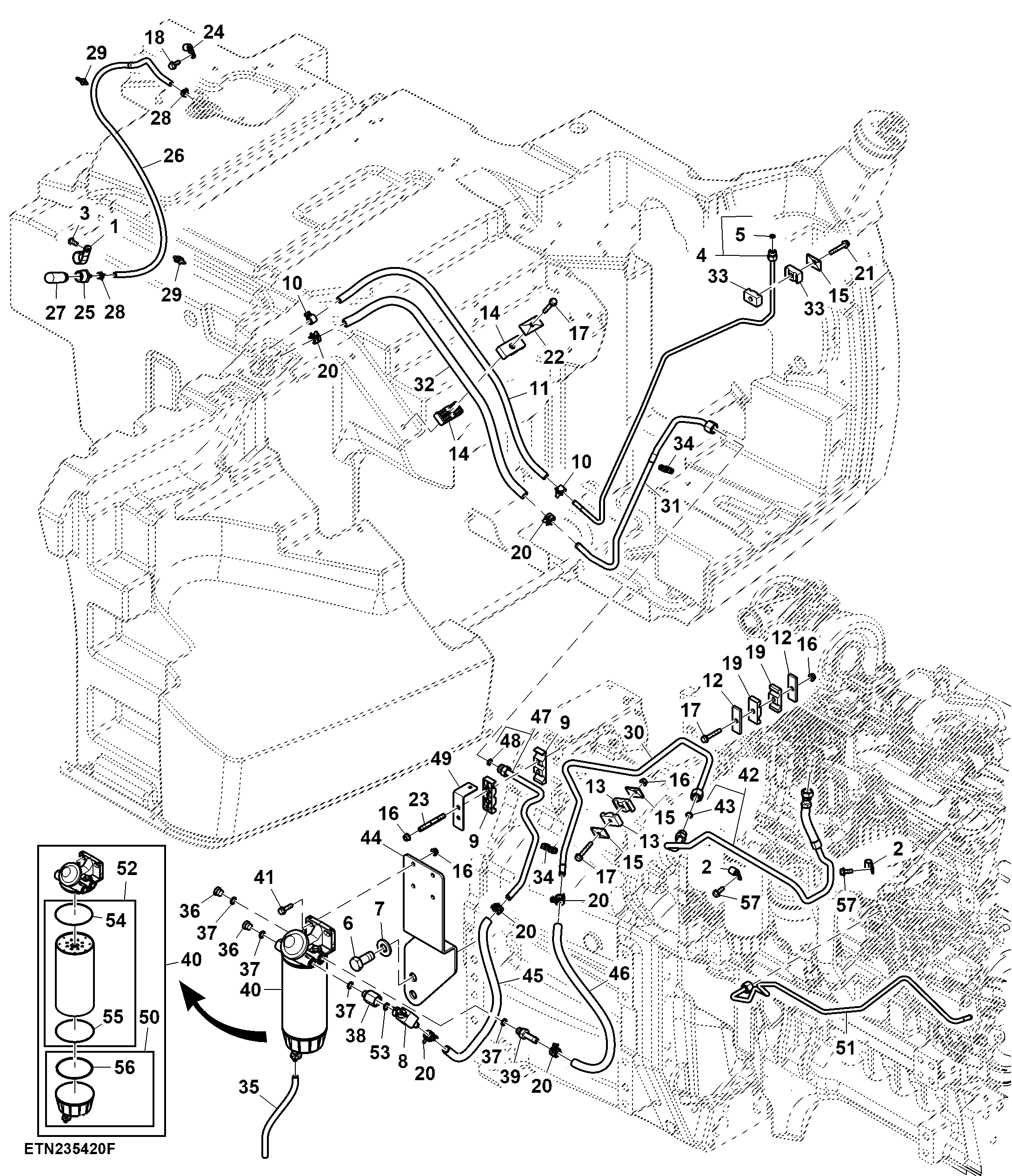

Fuel Line, W/ Water Separator, FT4/ Stage 5 Engine

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T27550	1	Clip	-
2	H75541	2	Clamp	-
3	R216838	1	Screw	-
4	RE583076	1	Line	Fuel Return to Tank, Rear
5	T77613	1	O-Ring	-
6	19M7950	2	Cap Screw	M20 X 45
7	24M7242	2	Washer	21.400 X 42 X 5 mm
8	RE287835	1	Valve	Shut-Off Valve, INCLUDES 51M7097
9	R564101	2	Block Clamp	-
10	R202160	2	Clamp	-
11	R562711	1	Hose	Fuel Return
12	R221778	2	Plate	-
13	H135156	2	Clamp	-
14	Z81375	4	Block Clamp	-
15	H121168	3	Plate	-
16	14M7298	6	Flange Nut	M8
17	19M7800	4	Screw	M8 X 50
18	19M7866	1	Screw	M8 X 20
19	R318378	2	Half Clamp	-
20	R184863	6	Hose Clamp	-
21	R106825	1	Screw	M8 X 50
22	H112567	2	Plate	-
23	L221449	2	Stud	-
24	57M9860	1	Clamp	-
25	H217849	1	Fitting	-
26	R565558	1	Fuel Hose	Vent
27	H216169	1	Breather	-
28	R56101	2	Clip	-
29	RE258807	2	Tie Band	-
30	RE594000	1	Line	Front Supply
31	RE594128	1	Line	Fuel Supply, Rear
32	R569658	1	Hose	Fuel Supply
33	T43348	2	Clamp	-
34	RE595242	3	Clamp	-
35	R561789	1	Hose	Filter, Drain
36	L41726	2	Pipe Plug	-
37	51M7042	4	O-Ring	13.300 X 2.200 mm
38	R558020	1	Fitting	INCLUDES 51M7042
39	RE584527	1	Pipe Plug	INCLUDES 51M7042
40	AT387542	1	Filter	Fuel Filter Assembly
41	19M7868	2	Screw	M8 X 30
42	RE595357	1	Fuel Line	Fuel Supply
43	T15712	1	O-Ring	-
44	R571629	1	Bracket	-
45	R571651	1	Fuel Hose	Supply to Filter
46	R571650	1	Fuel Hose	Supply to and from Filter
47	RE596247	1	Line	Fuel Supply, Rear
48	T77857	1	O-Ring	-
49	RE596241	1	Bracket	-
50	AT387545	1	Sediment Bowl	-
51	RE596176	1	Line	Fuel Cooler Supply
52	AT365869	1	Filter Element	-
53	51M7097	1	O-Ring	18 X 2.500 mm
54	R501388	1	Packing	-
55	R525910	1	Packing	-
56	R501632	1	Packing	-
57	19M7865	2	Screw	M8 X 16
