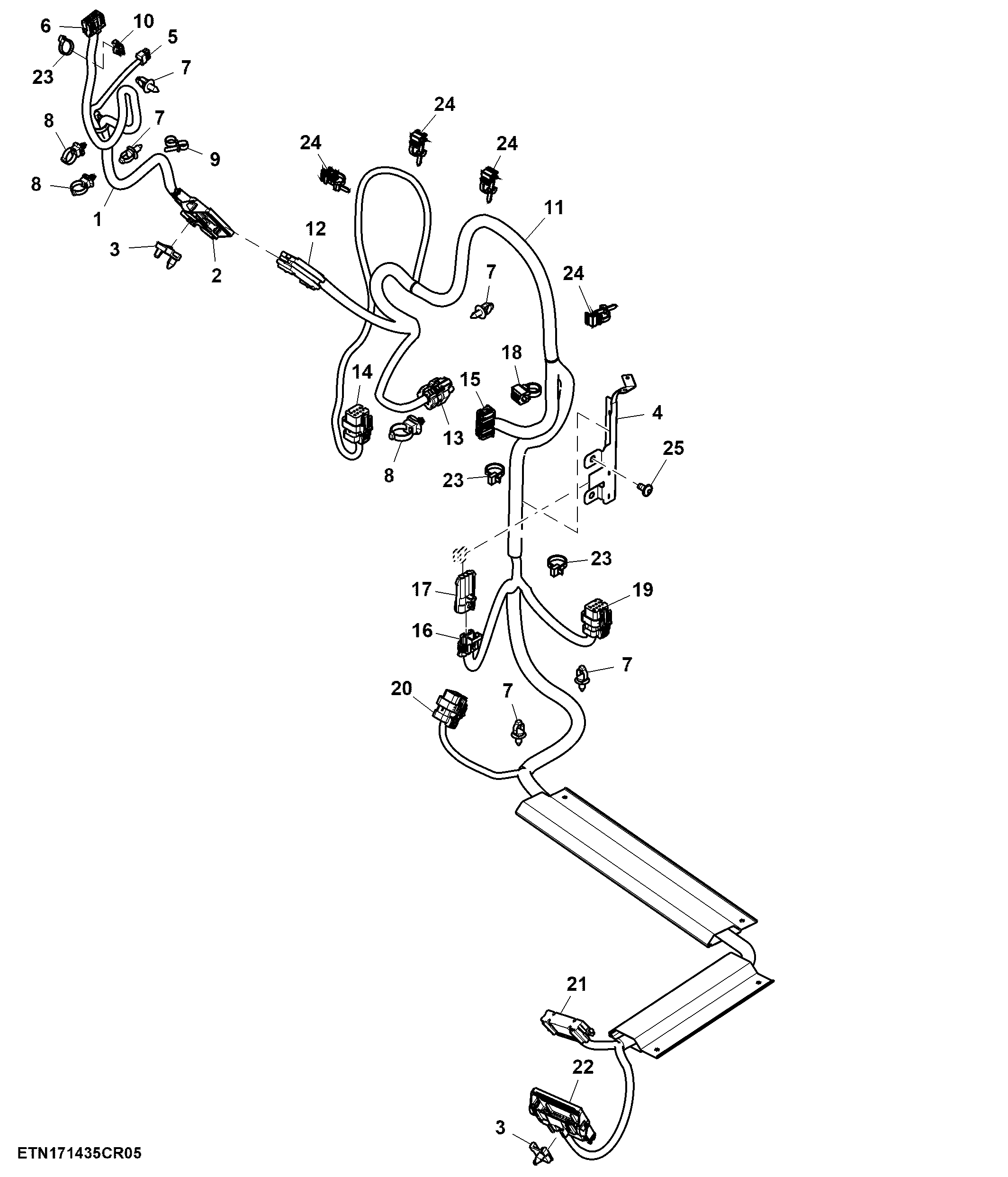

Cab Wiring Harness, Front Control Support, AutoTrac™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE593492	1	Wiring Harness	INCLUDES (2) 57M11231, (2) RE258807, (2) R44302, L205558, 57M10421, 57M11364
2	57M11348	1	Elec. Connector Housing	Steering POD / Front Console Interconnect, X101–2
2	RWA11095	1	Repair Wire Assembly	Cavity A1, A2, A3, A4, A5, A6, A10, B1, B3, B4, B5, B10
2	RWA11100	1	Repair Wire Assembly	Cavity A7, A8
3	57M11364	2	Elec. Connector Accessory	-
4	R569425	1	Bracket	-
5	57M11589	1	Elec. Connector Housing	Immobilizer, A001-1
5	RWA11146	1	Repair Wire Assembly	Cavity 1, 2, 4, 5, 6, 7, 8
6	57M14504	1	Elec. Connector Housing	Minipod, A560
7	RE258807	8	Tie Band	-
8	57M11231	3	Clip Kit	-
9	57M10421	1	Elec. Connector Accessory	-
10	L205558	1	Clip	-
11	RE593494	1	Wiring Harness	INCLUDES (6) RE258807, (5) 57M9229, (4) R44302, 57M11231, CB01483609, 57M11364, R569425
12	57M11346	1	Elec. Connector Housing	Front Console / Pod Interconnect, X101-1
12	RWA11096	1	Repair Wire Assembly	Cavity A1, A2, A3, A4, A5, A6, A10, A11, A12, A13, A14, A15, B1, B2, B3, B4, B5, B6, B10, B11, B12, B13, B14, B15
12	RWA11101	1	Repair Wire Assembly	Cavity A7, A8
13	57M9786	1	Elec. Connector Housing	Valve HVAC Mode Door 1, Y220
13	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 6
14	57M9793	1	Elec. Connector Housing	Sensor Clutch Pedal, A578
14	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
15	57M14316	1	Elec. Connector Housing	CU Front Console, A106
15	RWA11173	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
15	RWA11172	1	Repair Wire Assembly	Cavity 5, 6, 7, 8, 9, 10, 12, 14, 15, 16, 17, 18, 21, 22, 23, 24, 25, 27, 28, 29, 33, 34
16	57M7255	1	Elec. Connector Housing	Switch Brake Pedal Lock, S504
16	57M7290	1	Elec. Connector Accessory	-
16	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
17	57M7257	1	Elec. Connector Housing	-
18	CB01483609	1	Tie Band	-
19	57M9792	1	Elec. Connector Housing	Brake Pedal Sensor, B249
19	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8
20	RWA11029	1	Repair Wire Assembly	Cavity 4
20	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
20	57M9793	1	Elec. Connector Housing	Foot Throttle Sensor, A577
21	57M11346	1	Elec. Connector Housing	FCS / Main Cab Interconnect 2, XX121-2
21	RWA11096	1	Repair Wire Assembly	Cavity A1, A2, A3, A4, A5, A6, A10, A11, A12, A13, A14, B3, B4, B5, B6, B10, B11
21	RWA11101	1	Repair Wire Assembly	Cavity A7, A8, A9, B7, B8
22	57M11348	1	Elec. Connector Housing	FCS / Main Cab Interconnect 1, XX120-2
22	RWA11095	1	Repair Wire Assembly	Cavity A1, A2, A3, A4, A10, A11, A12, A13, A15, B1, B2, B4, B5, B6, B10, B11, B12, B14, B15
22	RWA11100	1	Repair Wire Assembly	Cavity A8, B8
23	R44302	6	Tie Band	-
24	57M9229	5	Clip	-
25	19M10529	2	Screw	M6 X 12
