Hydraulic Pump Compartment Top Cover and Supports

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	7025548	1	Support	(SUB FOR AT201103)
5	8053108	1	Support	(SUB FOR AT201135)
8	12M7066	5	Lock Washer	10 mm
8	24M7028	5	Washer	10.500 X 20 X 2 mm
8	19M7662	5	Cap Screw	M10 X 30
12	19M7662	1	Cap Screw	M10 X 30
12	12M7058	1	Lock Washer	12 mm, (SUB FOR 12M7067)
12	24M7346	1	Washer	11 X 20 X 2 mm
23	7026131	1	Cover	(SUB FOR AT201106)
32	12M7066	6	Lock Washer	10 mm
32	24M7028	6	Washer	10.500 X 20 X 2 mm
32	12M7066	6	Lock Washer	10 mm
32	19M7662	6	Cap Screw	M10 X 30
32	24M7028	6	Washer	10.500 X 20 X 2 mm
32	19M7662	6	Cap Screw	M10 X 30
33	19M7402	2	Cap Screw	M10 X 25
33	12M7058	2	Lock Washer	12 mm, (SUB FOR 12M7067)
33	24M7346	2	Washer	11 X 20 X 2 mm
44	5003770	1	Door	(SUB FOR AT201087)
46	6013331	1	Door	(SUB FOR AT201099)
47	24M7028	4	Washer	10.500 X 20 X 2 mm
48	12M7066	4	Lock Washer	10 mm
49	14M7274	4	Nut	M10
50	19M7402	4	Cap Screw	M10 X 25
50	24M7028	4	Washer	10.500 X 20 X 2 mm
52	4271846	1	Bracket	(SUB FOR AT201007)
53	19M7662	2	Cap Screw	M10 X 30
53	12M7058	2	Lock Washer	12 mm, (SUB FOR 12M7067)
53	24M7346	2	Washer	11 X 20 X 2 mm
55	4175253	1	Bracket	(SUB FOR AT318015, AT154915)
56	4175254	1	Stop	(SUB FOR AT154916)
57	24M7293	4	Washer	6.500 X 13 X 1.600 mm
57	12M7006	4	Lock Washer	6 mm
57	19M7923	4	Cap Screw	M6 X 12
59	9737868	1	Bar	(SUB FOR AT155583)
60	H132922	1	Cotter Pin	-
61	24M7055	1	Washer	8.400 X 16 X 1.600 mm
41A	8057084	1	Cover	(SUB FOR AT201157)
41B	8067264	1	Cover	(SUB FOR AT178246)
44A	-	1	Part 22	(TH110126 NLA)- (FURNISH AT214010)

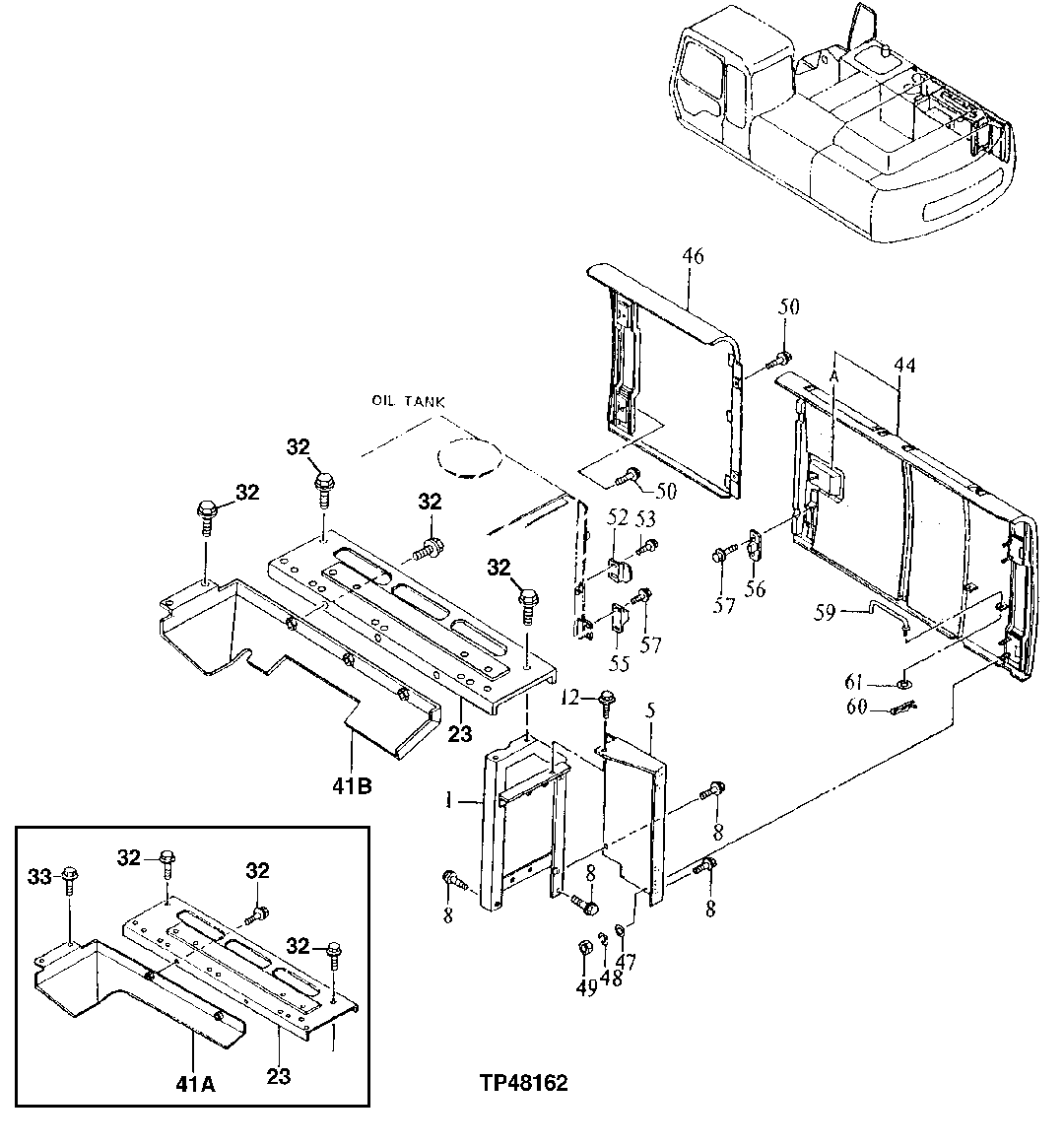

Hydraulic Pump Compartment Top Cover and Supports
