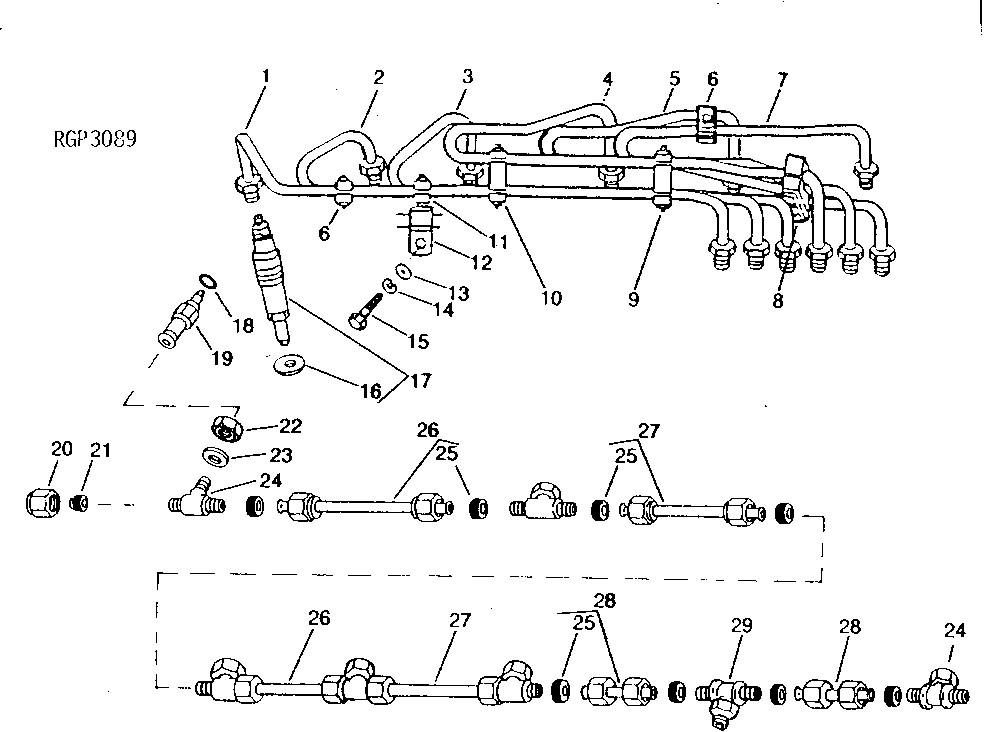

Fuel Injection Nozzles and Lines ( - 558133)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE47728	1	Fuel Line	NO. 6, (SUB FOR RE29512, THIS APPLICATION)
2	RE47727	1	Fuel Line	NO. 5, (SUB FOR RE29511, THIS APPLICATION)
3	RE47726	1	Fuel Line	NO. 4, (SUB FOR RE29510, THIS APPLICATION)
4	RE47725	1	Fuel Line	NO. 3, (SUB FOR RE29509, THIS APPLICATION)
5	R59305	2	Strap	-
5	R58186	4	Clamp	-
5	R61144	2	Strap	-
5	21H1463	2	Cap Screw	0.190" X 7/8"
6	RE47724	1	Fuel Line	NO. 2, (SUB FOR RE29508, THIS APPLICATION)
7	RE47723	1	Fuel Line	NO. 1, (SUB FOR RE29507, THIS APPLICATION)
8	R59298	1	Strap	-
8	R59297	2	Half Clamp	-
8	R61145	1	Strap	-
8	21H1463	2	Cap Screw	0.190" X 7/8"
9	R59298	1	Strap	-
9	R71398	2	Screw	4.826 X 38.100 mm (0.190" X 1-1/2")
9	R61145	1	Strap	-
9	R59297	2	Half Clamp	-
9	R71212	1	Clamp	-
10	R59305	1	Strap	-
10	R58186	1	Clamp	-
10	R74030	1	Clamp	-
10	R74804	1	Clamp	-
10	R61144	1	Strap	-
10	R71398	1	Screw	4.826 X 38.100 mm (0.190" X 1-1/2")
11	21H1463	2	Cap Screw	0.190" X 7/8"
11	R59297	2	Half Clamp	-
11	R59298	1	Strap	-
12	RE47120	1	Absorber	(SUB FOR RE12766)
13	24H1305	1	Washer	13/32" X 13/16" X 0.065"
14	12M7066	1	Lock Washer	10 mm
15	19M7166	1	Cap Screw	M10 X 20
16	R84472	6	Washer	7.360 X 18.160 X 2 mm (0.290" X 0.715" X 0.079")
17	SE501136	1	Injection Nozzle Reman	(PKG OF 1), (REMAN FOR RE52109)
17	RE52109	6	Injection Nozzle	Denso
17	SE501135	1	Injection Nozzle Reman	(PKG OF 1), (REMAN FOR RE30159)
17	SE500349	1	Injection Nozzle Reman	(PKG OF 6), (NLA)
17	RE30159	6	Injection Nozzle	Denso, (USE W/ RE46898) (SUB RE52109 AND R84472)
17	SE501119	1	Injection Nozzle Reman	(PKG OF 1), (REMAN FOR RE46364)
17	SE500178	1	Injection Nozzle Reman	(PKG OF 6), (ROBERT BOSCH) (NLA)
17	RE46364	6	Injection Nozzle	(ROBERT BOSCH) (USE W/ RE46898)
18	R77551	6	O-Ring	-
19	R87082	6	Fitting	(ALSO ORDER R77551)
20	R51937	1	Tube Nut	-
21	AR85519	1	Plug	-
22	R79604	6	Tube Nut	-
23	R79605	6	Washer	-
24	R79606	6	Tee Fitting	-
25	R51936	12	Sealing Washer	-
26	RE15807	2	Fuel Line	-
27	RE15808	2	Fuel Line	-
28	RE36421	2	Fuel Line	-
29	R97061	1	Tee Fitting	-
