Control Valve Components ( - 007424)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4314749	1	Hyd Actuated Control Valve	Contains All Items On This Page Additional Components On Previous and Following Pages, NLA, SUB FOR AT201051, AT186751 AND 4314749EX
23	-	2	Part 2	SUB AT204926, AT200936 NLA
24	U17409	6	O-Ring	26.594 X 2.946 mm (1-3/64" X 0.116")
25	0496312	2	Poppet	SUB FOR AT200929 AND AT168183
26	0459532	1	Spring	SUB FOR AT200930
27	4228355	1	Pressure Relief Valve	Propel System, SUB FOR TH111079
28	4324534	2	Pressure Relief Valve	Anti-Cavitation Arm, SUB FOR AT201077
29	-	1	Part 10	SUB AT204926, AT200937 NLA
32	0309709	1	Pressure Relief Valve	Flow Sensing, SUB FOR TH109974
33	0667927	2	Fitting Plug	Auxiliary, SUB FOR TH109975, AT177441 OR AT213687
34	4378250	1	Fitting Plug	Boom II, SUB FOR TH109976 OR AT177442
37	4324535	1	Pressure Relief Valve	Dig Functions, SUB FOR AT201078
38	0496303	1	Plug	SUB FOR AT200938
39	0496304	1	Poppet	SUB FOR AT200939
40	0496305	1	Spring	SUB FOR AT200940
41	0412310	1	Fitting Plug	SUB FOR AT154037
42	0496318	1	Plug	SUB FOR AT200941 OR AT166926
43	0125107	2	Check Valve	SUB FOR AT200942 OR TH109983
44	0125108	2	Spring	SUB FOR TH109984
45	-	1	Part 27	AT200943 NLA, SUB 0496316, ALONG WITH 0496317, 0496318 AND 4237927
45	0496316	1	Poppet	SUB FOR AT166924
46	0309719	1	Spring	SUB FOR TH109986
46	4237927	1	Spring	SUB FOR AT166925
47	0496309	1	Sleeve	SUB FOR AT200944
49	0496317	1	Sleeve	SUB FOR AT166922
49	0309721	1	Sleeve	SUB FOR AT200945 OR TH109989
50	0309733	2	Strap	SUB FOR TH111921
51	J901032	8	SCREW	SUB FOR TH102040
52	12M7066	8	Lock Washer	10 mm
54	A4730R	2	O-Ring	24.994 X 3.531 mm (63/64" X 0.139")
61	AT318035	1	O-Ring	SUB FOR 4506424 OR TH100055
69	0496311	1	Poppet	SUB FOR AT200946
70	4237927	1	Spring	SUB FOR AT166925
74	0309728	1	Spring	SUB FOR TH109997
79	4228354	2	Pressure Relief Valve	Swing, SUB FOR TH111707
80	0309717	1	Fitting Plug	SUB FOR TH109982
80	0496318	1	Plug	SUB FOR AT166926
27A	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
28A	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
32A	U17409	1	O-Ring	26.594 X 2.946 mm (1-3/64" X 0.116")
33A	4257233	1	Seal Kit	SUB FOR TH112253 OR 4S00740
33A	0413616	1	O-Ring	INCLUDED IN SEAL KIT 4257233, SUB FOR 4154207
34A	4257234	1	Seal Kit	SUB FOR TH112254 OR 4S00741
37A	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
79A	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")

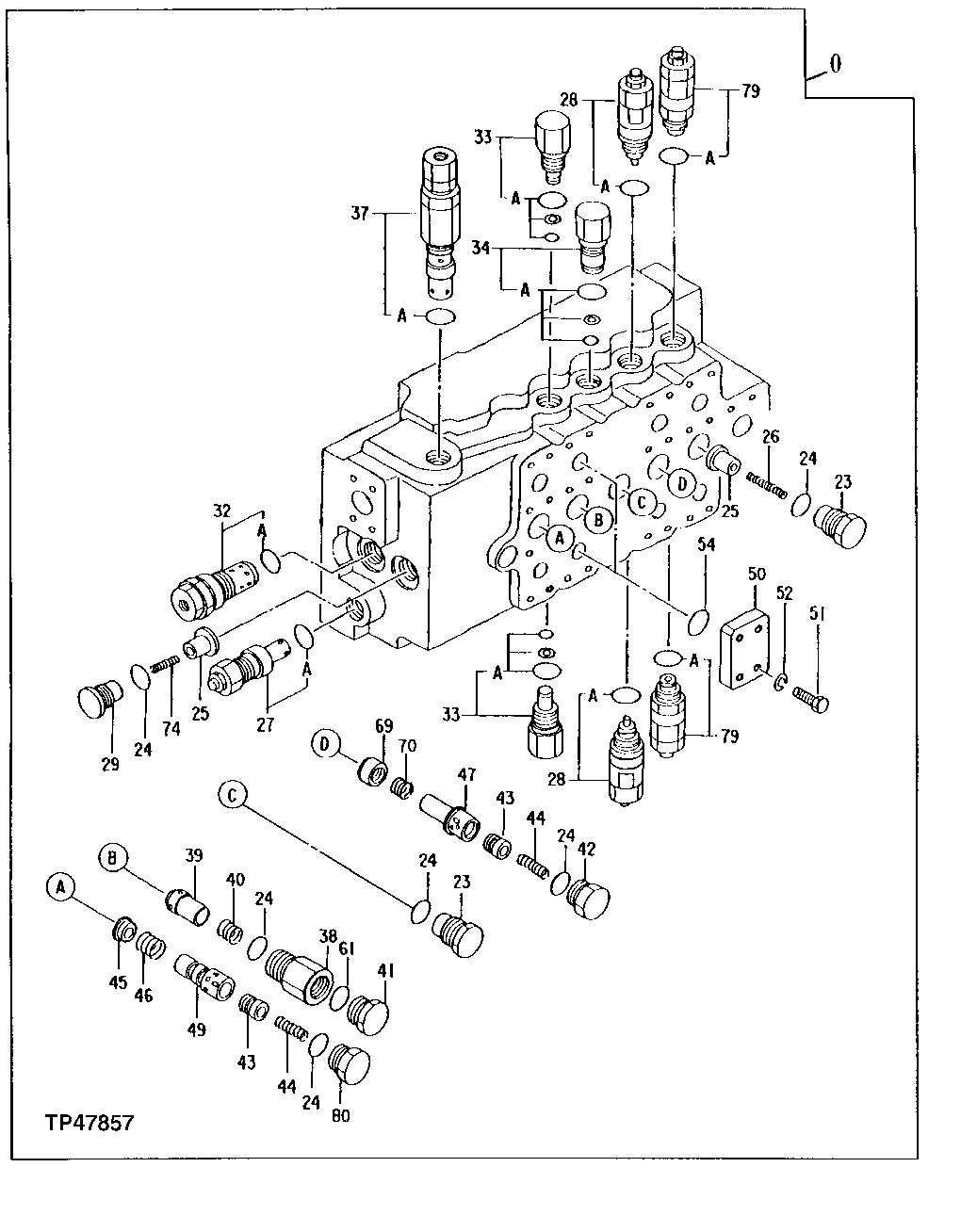

Control Valve Components ( - 007424)
