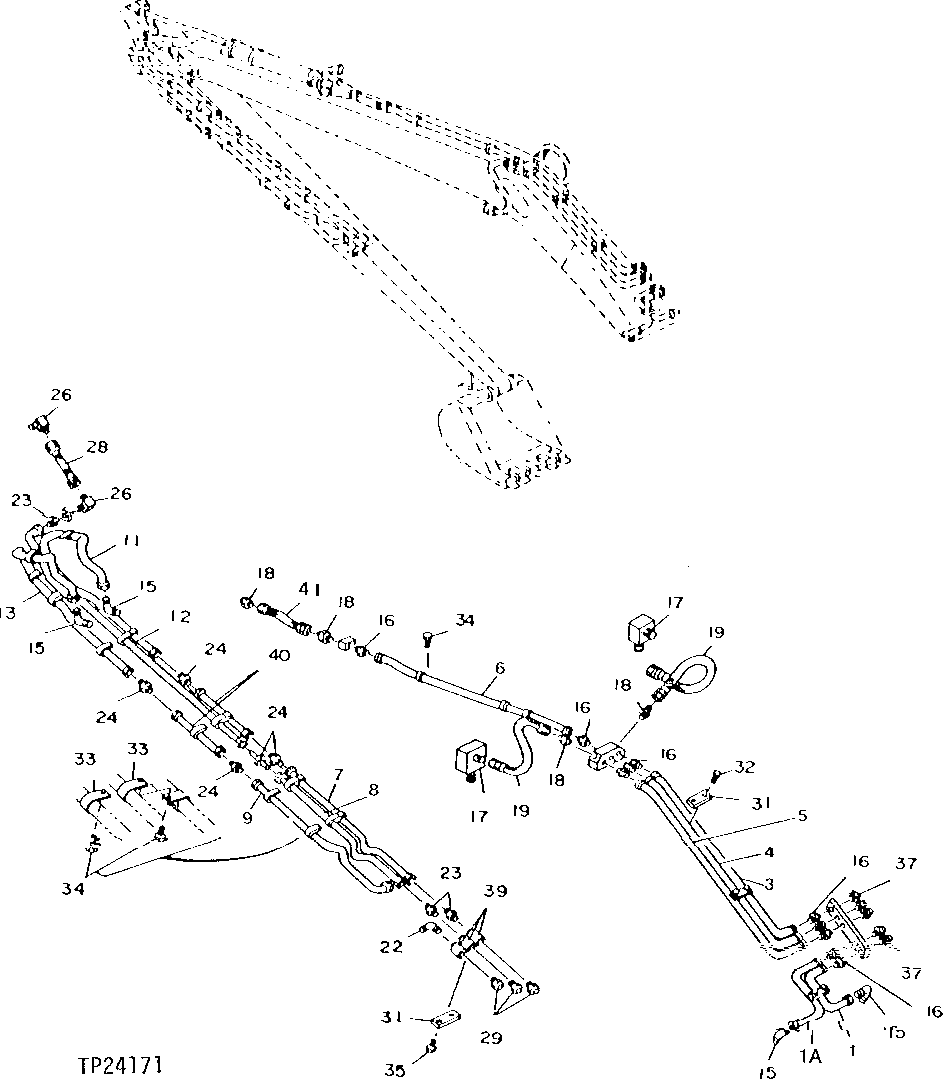

SUPER LONG FRONT CENTRAL LUBRICATION LINES

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	4198878	1	Oil Line	(SUB FOR TH111295)
3	3043120	1	Oil Line	(SUB FOR TH111813)
4	3043121	1	Oil Line	(SUB FOR TH111814)
5	3043122	1	Oil Line	(SUB FOR TH111815)
6	4228317	1	Oil Line	(SUB FOR TH111816)
7	3034926	1	Oil Line	(SUB FOR TH111817)
8	4186656	1	Oil Line	(SUB FOR TH111818)
9	3034925	1	Oil Line	(SUB FOR TH111819)
11	4189099	1	Oil Line	(SUB FOR TH111820)
12	3034927	1	Oil Line	(SUB FOR TH111821)
13	4189100	1	Oil Line	(SUB FOR TH111822)
15	4130174	4	Fitting	(SUB FOR TH103262)
16	4130169	10	Fitting	(SUB FOR TH101391)
17	4154656	2	Elbow Fitting	(SUB FOR TH101588)
18	4154651	4	Adapter Fitting	(SUB FOR TH100963)
19	4231286	2	Hydraulic Hose	(SUB FOR TH111823)
22	4130175	1	Fitting	(SUB FOR TH101392)
23	4130169	3	Fitting	(SUB FOR TH101391)
24	Z32962	5	Fitting	(SUB FOR T115094)
26	4154656	2	Elbow Fitting	(SUB FOR TH101588)
28	AE42718	1	Hydraulic Hose	11.1252" X 600 mm (23-1/2") X 11.1252", (SUB FOR TH111824)
29	T116334	3	Lubrication Fitting	(SUB FOR TH100075)
31	4054024	4	Strap	(SUB FOR TH100363)
32	19M7662	6	Cap Screw	M10 X 30
33	TH101388	21	Clip	-
34	19M7300	15	Cap Screw	M6 X 10
35	19M7358	2	Cap Screw	M10 X 40
37	TH100364	5	LUBRICATION FITTING	-
39	4060162	3	Adapter Fitting	(SUB FOR T115095)
40	4189101	2	Oil Line	(SUB FOR TH111825)
41	4231285	1	HYDRAULIC HOSE	(SUB FOR TH111779)
1A	4198879	1	Oil Line	(SUB FOR TH111296)

SUPER LONG FRONT CENTRAL LUBRICATION LINES

Нет текстового описания
