SUPER LONG FRONT ARM AND BOOM HYDRAULIC LINES

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	8042855	1	Oil Line	(SUB FOR TH111799)
1	8042854	1	Oil Line	(SUB FOR TH111800)
2	8042853	1	Oil Line	(SUB FOR TH111801)
3	9730902	1	Oil Line	(SUB FOR TH111802)
4	8042852	1	Oil Line	(SUB FOR TH111803)
5	8042861	2	Oil Line	(SUB FOR TH111804)
7	8042859	1	Oil Line	(SUB FOR TH111805)
8	8042858	1	Oil Line	(SUB FOR TH111806)
10	4285723	5	Clamp	(SUB FOR TH109071 OR 4189859)
11	4190126	18	Clamp	(SUB FOR TH109830)
12	19M7363	28	Cap Screw	M12 X 60
13	12H301	28	Lock Washer	1/2"
16	4187391	2	Hydraulic Hose	(SUB FOR TH111229)
18	T77858	8	O-Ring	(SUB FOR TH108349)
20	4227051	2	Hydraulic Hose	(SUB FOR TH111807)
21	4055191	2	Hose Guard	(SUB FOR TH111808)
22	4203220	2	Washer	(SUB FOR TH109827)
25	AT120771	2	Hydraulic Hose	-
26	A853166	2	Adapter Fitting	(SUB FOR AT107392 OR 4189619)
29	TH102446	4	Seal	(I.D. 80 MM - O.D. 95 MM)
31	4241241	1	HYDRAULIC CYLINDER	(SUB FOR AT86766)
32	4117954	4	Seal	(SUB FOR TH106006)
34	9075046	1	Flow Control Hyd. Valve	(SUB FOR AT120774)
35	4189535	2	Adapter Fitting	-
36	T76938	10	O-Ring	(SUB FOR TH108326)
37	8042863	1	Oil Line	(SUB FOR TH111810)
38	8042862	1	Oil Line	(SUB FOR TH111811)
39	T78612	2	O-Ring	(SUB FOR TH111228)
40	T76938	3	O-Ring	(SUB FOR TH108326)
41	9730903	2	Oil Line	(SUB FOR TH111812)
42	4153488	1	Clamp	(SUB FOR TH103780)
43	4190127	4	Clamp	(SUB FOR TH108313)
26A	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)
35A	TH101926	1	O-Ring	-

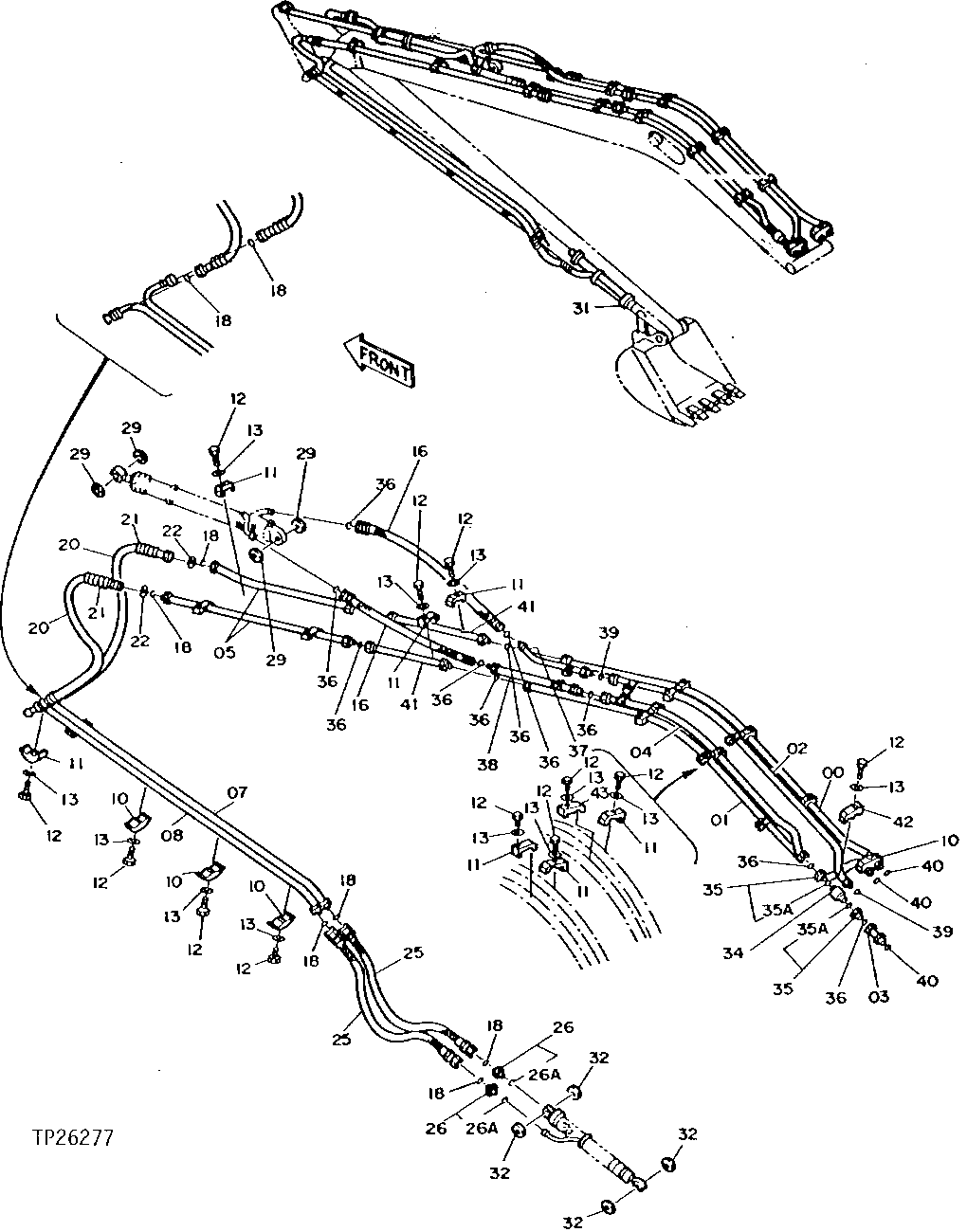

SUPER LONG FRONT ARM AND BOOM HYDRAULIC LINES
