FUEL INJECTION PUMP AND OIL LUBE LINE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3336	4	Screw	3/8" X 7/8"
2	R63845	4	Washer	-
3	R67380	1	Gear	-
4	R114130	4	Stud	(SUB FOR R55396, APPL.)
5	RE16302	1	FITTING	-
6	24M7239	4	Washer	10.700 X 21 X 2.500 mm, (SUB FOR R42729)
7	14H1090	4	Nut	3/8", (SUB FOR R32511 OR E55662, APPL.)
8	-	1	Part 8	(SUB RE35142 AND (2) RE10258)
9	RE14229	1	Oil Line	(SUB RE38733, AR88903 AND R76822)
10	R39832	1	Adapter Fitting	(USE WITH RE14229)
11	R79060	1	O-Ring	(USE WITH RE14229)
12	AR26746	1	Elbow Fitting	(USE WITH RE14229)
13	RE31084	1	Fuel Injection Pump	("SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR PARTS NOT LISTED.") (ROBERT BOSCH) (PES6P110A720RS2083-1), (SUB RE44340, T82383 AND (2) 19M8731)
13	SE500147	1	Fuel Injection Pump Reman	(REMAN FOR RE31084)
13	RE30252	1	Fuel Injection Pump	("SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR PARTS NOT LISTED.") (ROBERT BOSCH) (PES6P110A720RS2083-1), (SUB RE44340)
13	RE44340	1	Fuel Injection Pump	("SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR PARTS NOT LISTED.") (ROBERT BOSCH) (PES6P110A720RS2083-1), (ALSO ORDER T82383 AND (2) 19M8826)
13	SE500149	1	Fuel Injection Pump Reman	(REMAN FOR RE44340 AND RE30252)
14	R67264	1	Packing	-
15	RE38733	1	Oil Line	-
16	R76822	1	Fitting	-
17	R79060	1	O-Ring	(SUB FOR R73858)
18	AR88903	1	Elbow Fitting	-

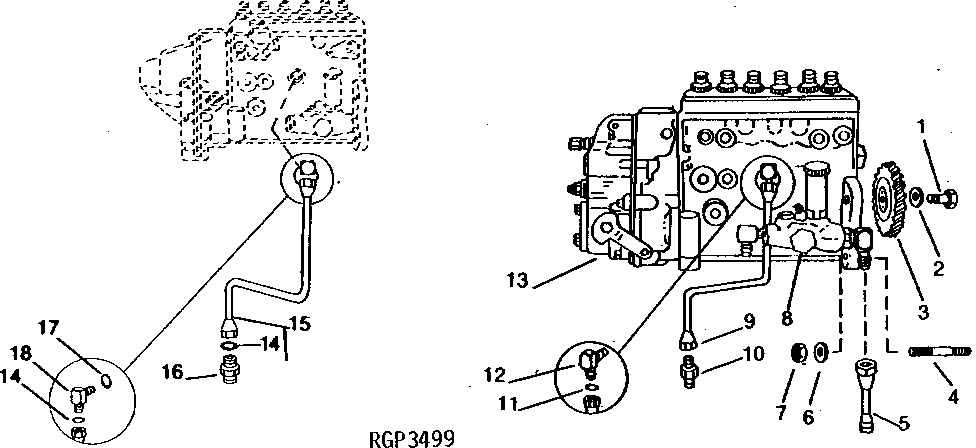

FUEL INJECTION PUMP AND OIL LUBE LINE

Нет текстового описания
