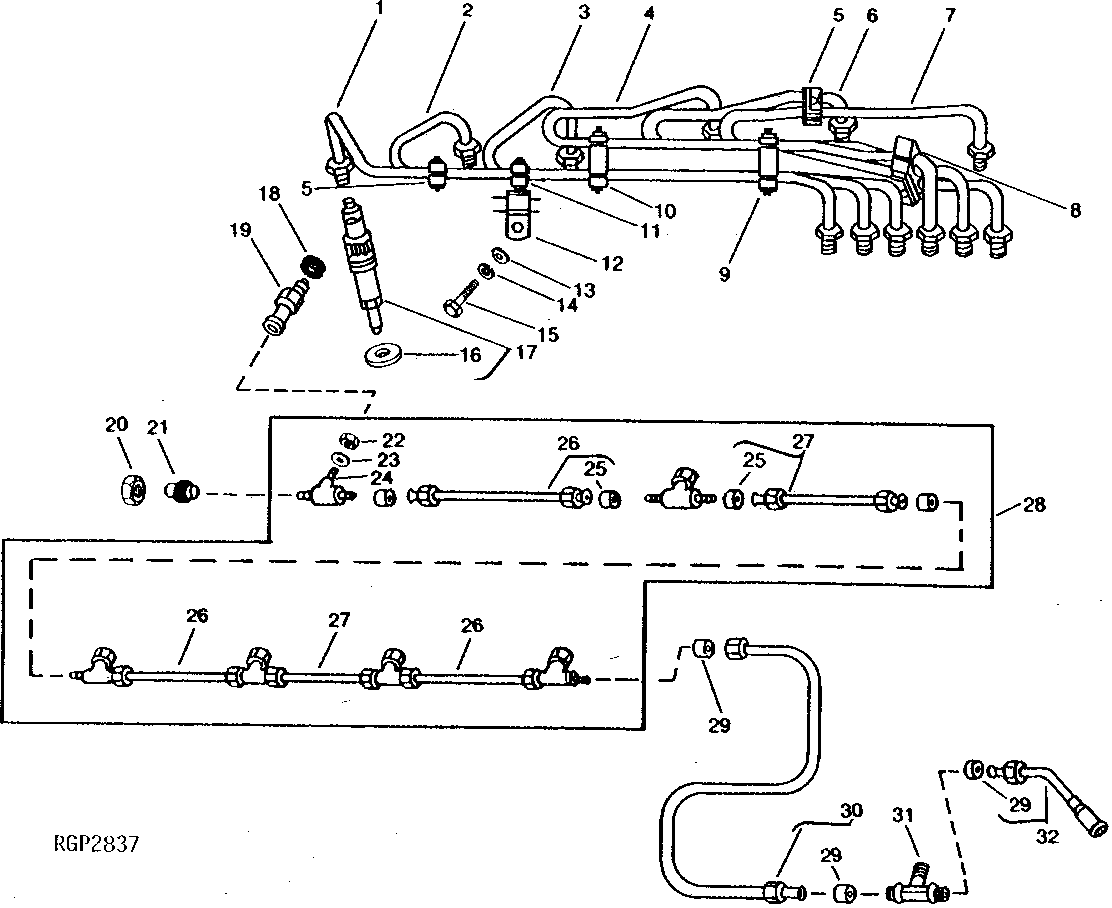

Fuel Injection Nozzles and Lines ( - 353773)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE17160	1	Fuel Line	NO. 6
2	RE17159	2	Fuel Line	NO. 5
3	RE17158	1	Fuel Line	NO. 4
4	RE17157	1	Fuel Line	NO. 3
5	R59305	2	Strap	-
5	R58186	4	Clamp	-
5	R61144	2	Strap	-
5	21H1463	2	Cap Screw	0.190" X 7/8"
6	RE17156	1	Fuel Line	NO. 2
7	RE17155	1	Fuel Line	NO. 1
8	R59298	1	Strap	-
8	R59297	2	Half Clamp	-
8	R61145	1	Strap	-
8	21H1463	2	Cap Screw	0.190" X 7/8"
9	R59298	1	Strap	-
9	R71398	2	Screw	4.826 X 38.100 mm (0.190" X 1-1/2")
9	R61145	1	Strap	-
9	R59297	2	Half Clamp	-
9	R71212	1	Clamp	-
10	R59305	1	Strap	-
10	R58186	1	Clamp	-
10	R74030	1	Clamp	-
10	R74804	1	Clamp	-
10	R61144	1	Strap	-
10	R71398	1	Screw	4.826 X 38.100 mm (0.190" X 1-1/2")
11	21H1463	2	Cap Screw	0.190" X 7/8"
11	R59297	2	Half Clamp	-
11	R59298	1	Strap	-
12	RE47120	1	Absorber	SUB FOR RE12766
13	24H1305	1	Washer	13/32" X 13/16" X 0.065"
14	12M7066	1	Lock Washer	10 mm
15	19M7166	1	Cap Screw	M10 X 20
16	R64840	6	Washer	9.270 X 18.160 X 2 mm (0.365" X 0.715" X 0.079")
17	-	6	Part 34	ROBERT BOSCH, ORDER AR74664
17	AR74664	6	INJECTION NOZZLE	-
17	SE500102	1	Injection Nozzle Reman	PKG OF 6, NLA; REMAN FOR AR74664
17	SE501111	1	Injection Nozzle Reman	PKG OF 1, REMAN FOR AR74664
18	R77551	6	O-Ring	-
19	R87082	6	Fitting	ALSO ORDER R77551
20	R51937	1	Tube Nut	-
21	AR85519	1	Plug	-
22	R79604	6	Tube Nut	-
23	R79605	6	Washer	-
24	R79606	6	Tee Fitting	-
25	R51936	10	Sealing Washer	-
26	RE15807	3	Fuel Line	-
27	RE15808	2	Fuel Line	-
28	-	1	Part 48	Leak Off Order Individual Part
29	R51936	3	Sealing Washer	-
30	RE27828	1	Fuel Line	-
31	R76313	1	Tee Fitting	-
32	RE16142	1	Fuel Line	-

Fuel Injection Nozzles and Lines ( - 353773)

Нет текстового описания
