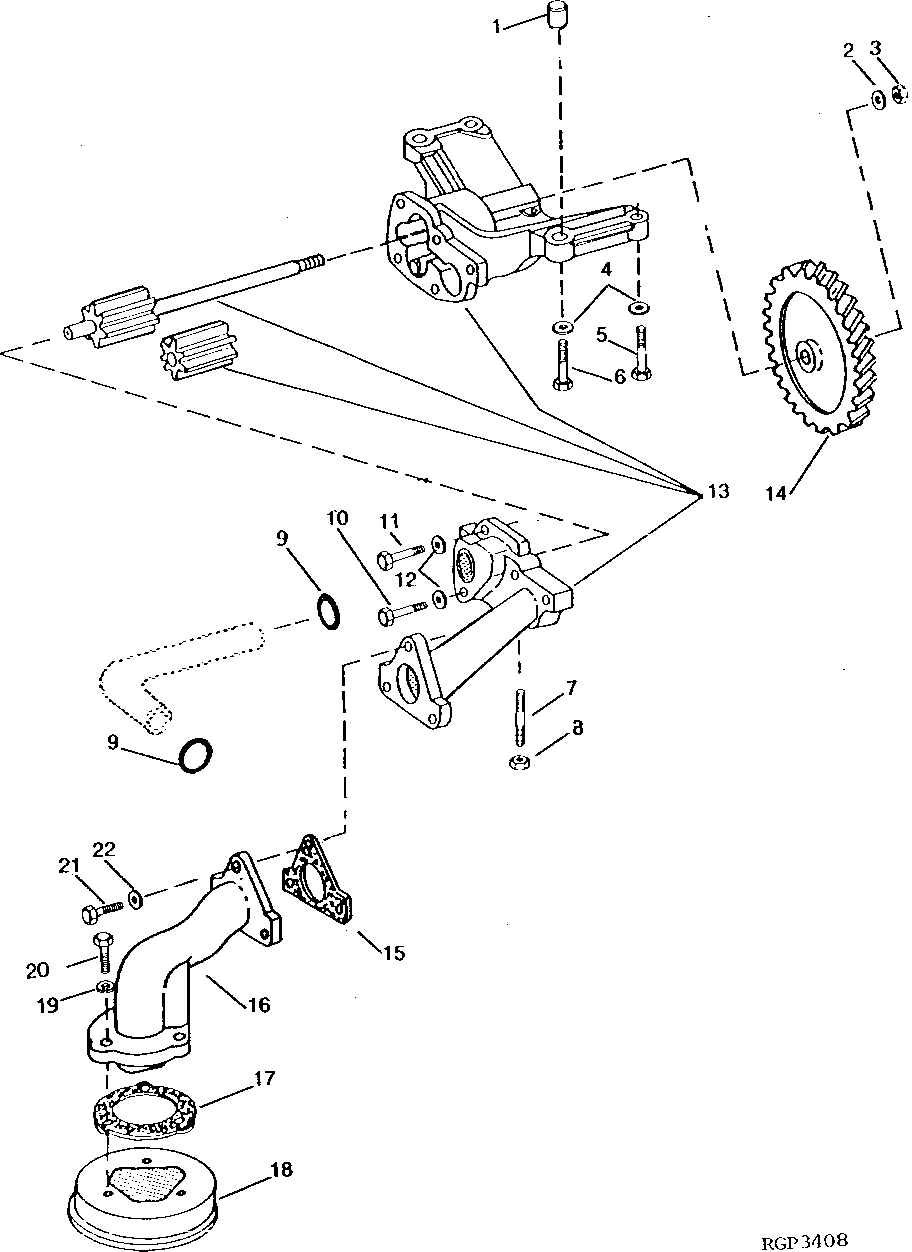

ENGINE OIL PUMP (EARLY DESIGN CRANKSHAFT DRIVEN) ( - 361407)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R500642	2	Bushing	(SUB FOR R62930, THIS APPLICATION)
2	T21242	1	Washer	-
3	14H826	1	Nut	1/2", (SUB FOR R79187)
4	R57696	4	Washer	-
5	19H3219	2	Cap Screw	3/8" X 1-3/8"
6	19H2549	2	Cap Screw	3/8" X 1-7/8"
7	22H1040	1	Set Screw	5/16" X 1-1/4"
8	14H785	1	Nut	5/16"
9	R71732	2	O-Ring	-
10	19H2733	2	Cap Screw	3/8" X 2-3/8"
11	19H1765	3	Cap Screw	3/8" X 1-3/4"
12	24M7239	5	Washer	10.700 X 21 X 2.500 mm, (SUB FOR R70234 OR R42729)
13	AR99344	1	OIL PUMP	(ALSO ORDER <service-part>R119364</service-part> NUT WHEN USED WITH <service-part >R62954</service-part> OIL COOLER BY-PASS HOUSING) (SUB FOR AR96193 ) (MARKED R62946) (ORDER SE501063)
13	SE501063	1	Oil Pump Reman	(REMAN FOR AR99344)
14	R62938	1	Gear	-
15	R71312	1	GASKET	-
16	R79864	1	Elbow Fitting	(USE WITH AR99344 OR AR96193)
17	R52049	1	GASKET	-
18	AR56639	1	OIL PUMP INTAKE	-
19	12H303	3	Lock Washer	5/16"
20	19H1905	3	Cap Screw	5/16" X 1"
21	19H3239	3	Cap Screw	3/8" X 1-1/4"
22	24M7239	3	Washer	10.700 X 21 X 2.500 mm, (SUB FOR R70234 OR R42729)

ENGINE OIL PUMP (EARLY DESIGN CRANKSHAFT DRIVEN) ( - 361407)
