ENGINE OIL FILTER AND OIL PRESSURE REGULATING HOUSING

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R43660	1	Packing	USE WITH AR98329 OR RE57394
2	AR101278	1	OIL FILTER	MARKED AR98329 SUB RE57394
2	RE46380	1	Oil Filter	MARKED RE46380 SUB RE57394
3	15H690	2	Pipe Plug	3/4"
4	R104592	1	Pipe Plug	-
5	RE507807	1	Pipe Plug	1/4", SUB FOR R55233
6	R86875	1	Fitting Plug	-
7	AR105510	1	DRAIN PLUG	-
8	U17409	1	O-Ring	-
9	-	1	Part 10	NLA; SUB FOR AR94084; MARKED R71484; ALSO ORDER R84947; FURNISH WITH COMPONENTS
9	-	1	Part 11	NLA; SUB FOR RE24706; MARKED R84946; FURNISH WITH COMPONENTS
10	R49464	1	VALVE	-
11	R26151	1	SPRING	-
12	U17409	1	O-Ring	-
13	34H393	1	PIN FASTENER	7/16" X 1-1/8", USE WITH R71483
13	34H313	1	Spring Pin	1/4" X 1-1/8", USE WITH R49465
14	R49465	1	DRAIN PLUG	SUB FOR R71483; USE WITH 34H313
14	R71483	1	DRAIN PLUG	SUB R49465 AND 34H313; USE WITH 34H393
15	19H3483	1	Cap Screw	3/8" X 1-1/8"
16	12H304	2	Lock Washer	3/8", NO LONGER REQUIRED
17	R106859	1	Stud	SUB FOR F3646R OR R26622; APPL
18	R55395	1	STUD	-
19	R520526	1	Gasket	SUB FOR R43774
20	R43548	1	Spring	-
21	R43549	1	Washer	SUB FOR U40750
22	R84947	1	Valve	USE WITH R84946
23	E55662	2	Flange Nut	-
24	R77003	1	VALVE	USE WITH R71484
25	R104621	1	Adapter Fitting	USE WITH AR98329, RE46380 OR RE57394; SUB FOR R73913
26	RE57394	1	Oil Filter	MARKED RE57394
27	R84946	1	Housing	-

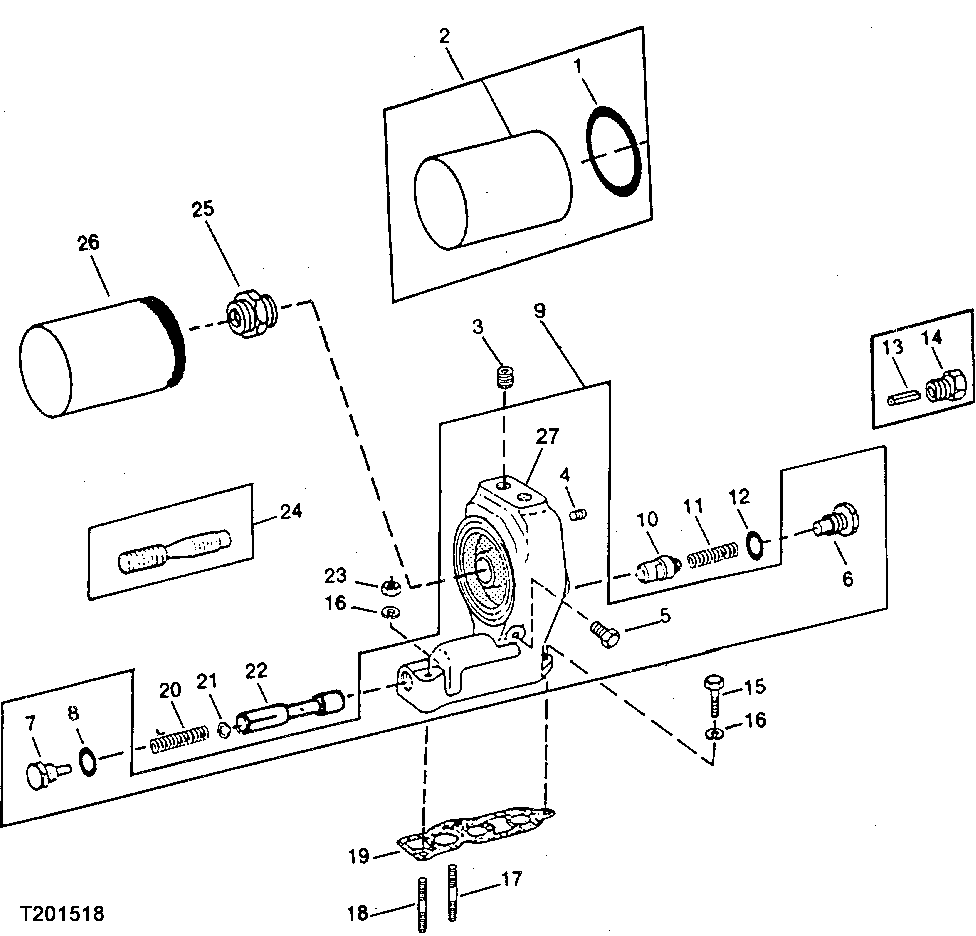

ENGINE OIL FILTER AND OIL PRESSURE REGULATING HOUSING
