Bucket (Severe Duty Cast Lip) Also Order Bucket Tooth Assemblies)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

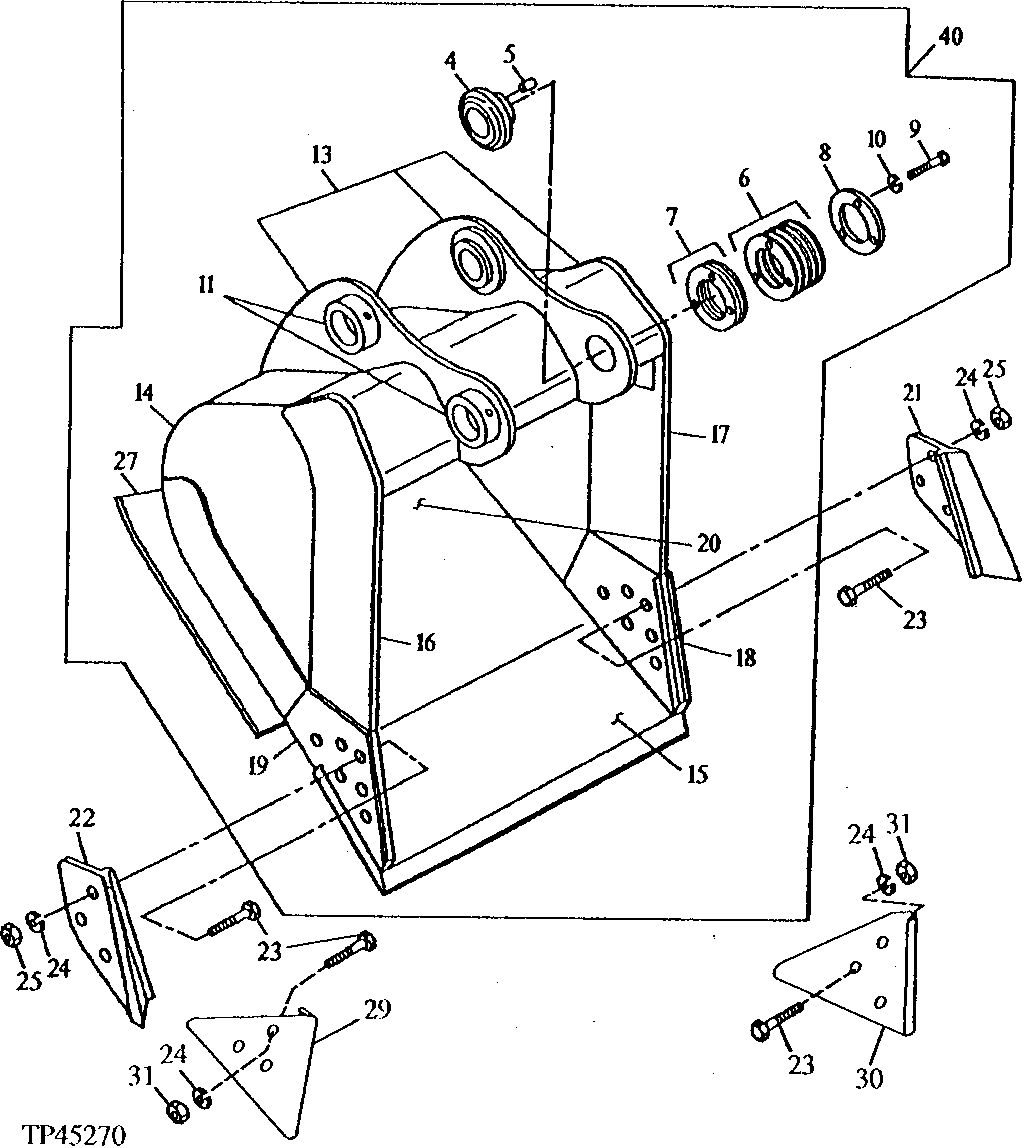

№ на схеме	Серийный номер	Кол-во	Название	Описание
4	4143522	1	Bushing	(SUB FOR TH103234)
5	4179110	1	Pin	12.012 X 25 mm (0.473" X 63/64"), (SUB FOR TH103520)
6	4143524	6	Washer	(SUB FOR TH103235)(1 MM)
7	4143525	2	Shim	(SUB FOR TH103236)(.5 MM)
8	TH103237	1	Plate	-
9	19H2706	3	Cap Screw	5/8" X 2"
10	12H294	3	Lock Washer	5/8"
11	TH103198	2	Bushing	101.600 X 127 X 49.276 mm (4" X 5" X 1.940")
13	C606071	1	Pivot	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (BUCKET EAR BLANK ASSEMBLY)
14	305189	2	Plate	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (RIGHT AND LEFT SIDE)
15	-	1	Part 11	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (USE WITH 42 INCH BUCKET) (CUT TO LENGTH) ( AT131094 NLA)
15	-	1	Part 12	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (USE WITH 48 INCH BUCKET) (CUT TO LENGTH) ( AT131095 NLA)
16	300283	1	Vertical Cutter	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (UPPER RIGHT SIDE CUTTER)
17	300284	1	Vertical Cutter	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (UPPER LEFT SIDE CUTTER)
18	305187	1	Vertical Cutter	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (LEFT SIDE CUTTER INSERT)
19	305186	1	Vertical Cutter	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (RIGHT SIDE CUTTER INSERT)
20	600209	1	Moldboard	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (42 INCH)
20	600210	1	Moldboard	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (48 INCH)
21	-	1	Part 19	(<service-part>AT131085</service-part>) (SUB AT131085)
22	-	1	Part 20	(<service-part>AT131085</service-part>) (SUB AT131085)
23	09H1771	6	Bolt	(<service-part>AT131085</service-part>) 7/8" X 3", (K2)
24	12H245	6	Lock Washer	(<service-part>AT131085</service-part>) 7/8", (K2)
25	14H1077	6	Nut	(<service-part>AT131085</service-part>) 7/8"
27	605164	1	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (DOUBLE BOTTOM WEAR BAR - 42 INCH BUCKET)
27	605165	1	Bar	(CENTRAL FABRICATORS' PARTS. JOHN DEERE DEALER ORDER DIRECTLY FROM CENTRAL FABRICATORS.) (DOUBLE BOTTOM WEAR BAR - 48 INCH BUCKET)
29	-	1	Part 26	(WEAR SHROUD), (SUB AT167876 (K2))
30	-	1	Part 27	(WEAR SHROUD), (SUB AT167876 (K2))
31	14H1044	6	Nut	7/8", (K2)
40	-	1	Part 29	(SUB FOR AT131059)( AT163667 NLA) (42 INCH - 1.75 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)
40	-	1	Part 30	(SUB FOR AT131060)( AT163668 NLA) (48 INCH - 2.03 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

Bucket (Severe Duty Cast Lip) Also Order Bucket Tooth Assemblies)
