Arm (Standard) (2.96 m - 9 ft. 9 in.)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

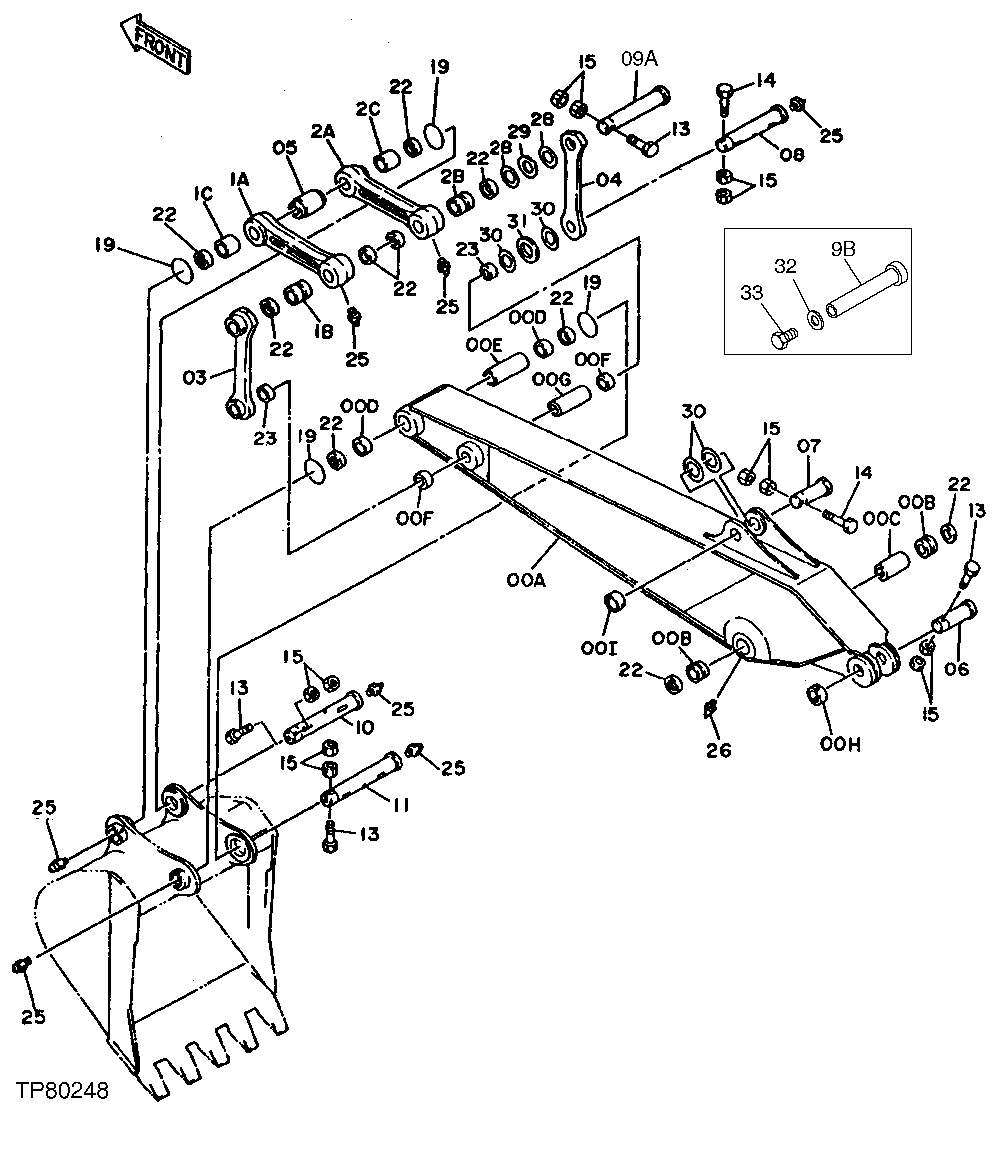

№ на схеме	Серийный номер	Кол-во	Название	Описание
3	8026311	1	Link	(SUB FOR TH103222)
4	3026104	1	Link	(SUB FOR TH103223)
5	4155763	1	Bushing	(SUB FOR TH103224)
6	TH111180	1	Pin Fastener	100 X 293 mm (3-15/16" X 11.535")
7	TH103204	1	Pin	-
8	TH111181	1	Pin Fastener	-
10	TH112086	1	Pin Fastener	(SUB FOR 3037541 ) (ALSO ORDER TH100074)
11	AT164648	1	Pin Fastener	(SUB FOR TH112087 ) (SUB FOR TH111184 ) (ALSO ORDER TH100074)
13	19M8100	4	Cap Screw	M20 X 180, (SUB FOR TH103500)
14	19M8503	2	Cap Screw	M20 X 160
15	14M7277	12	Nut	M20
19	4100180	4	O-Ring	(STANDARD O-RING)
19	AT349467	4	Seal	(SPLIT O-RING)
22	TH102411	10	Seal	-
23	TH102445	2	Seal	(I.D. 100 MM - O.D. 115 MM)
25	TH100074	7	Lubrication Fitting	-
26	T116334	2	Lubrication Fitting	(SUB FOR TH100075)
28	4189839	2	Washer	101 X 165 X 1.200 mm (3.976" X 6.496" X 3/64"), (SUB FOR TH106305)
29	4189838	1	Washer	101 X 165 X 2.300 mm (3.976" X 6.496" X 0.091"), (SUB FOR TH106306)
30	TH106307	4	Washer	-
31	TH106308	1	Washer	-
32	AT189263	1	Bushing	(HEAVY DUTY APPLICATIONS) (OPTIONAL), (USE WITH AT189262 AND 19M7488)
33	19M7488	1	Cap Screw	M16 X 40, (HEAVY DUTY APPLICATIONS) (OPTIONAL), (USE WITH AT189262 AND AT189263)
0A	-	1	Part 1	(INCLUDES ITEMS 0B THROUGH 0I) ( TH110163 ASSEMBLY NO LONGER AVAILABLE - ORDER INDIVIDUAL COMPONENTS) (WHEN REPLACING SHORT OR LONG ARM WITH STANDARD ARM, ALSO ORDER (2) TH111266 AND (2) TH111199)
0A	7017643	1	Arm	(SUB FOR TH111437)
0B	3026077	2	Bushing	(SUB FOR TH103212)
0C	4143372	1	Spacer	(SUB FOR TH103213)
0D	TH103214	2	Bushing	-
0E	4143370	1	Spacer	(SUB FOR TH103215)
0F	TH103216	2	Bushing	-
0G	4143371	1	Spacer	(SUB FOR TH103217)
0H	TH103198	1	Bushing	101.600 X 127 X 49.276 mm (4" X 5" X 1.940")
0I	TH102409	1	Bushing	92.075 X 120.650 X 50.800 mm (3-5/8" X 4-3/4" X 2")
1A	8037698	1	Link	(SUB FOR TH111490)(INCLUDES ITEMS 1B AND 1C)
1B	TH111170	1	Bushing	-
1C	3028854	1	Bushing	(SUB FOR TH103221)
2A	8037697	1	Link	(SUB FOR TH111489)(INCLUDES ITEMS 2B AND 2C)
2B	TH111170	1	Bushing	-
2C	3028854	1	Bushing	(SUB FOR TH103221)
9A	TH111182	1	Pin Fastener	100 X 546 mm (3-15/16" X 21.496"), (STANDARD)
9B	AT189262	1	Pin	(HEAVY DUTY APPLICATIONS) (OPTIONAL), (USE WITH AT189263 AND 19M7488)
