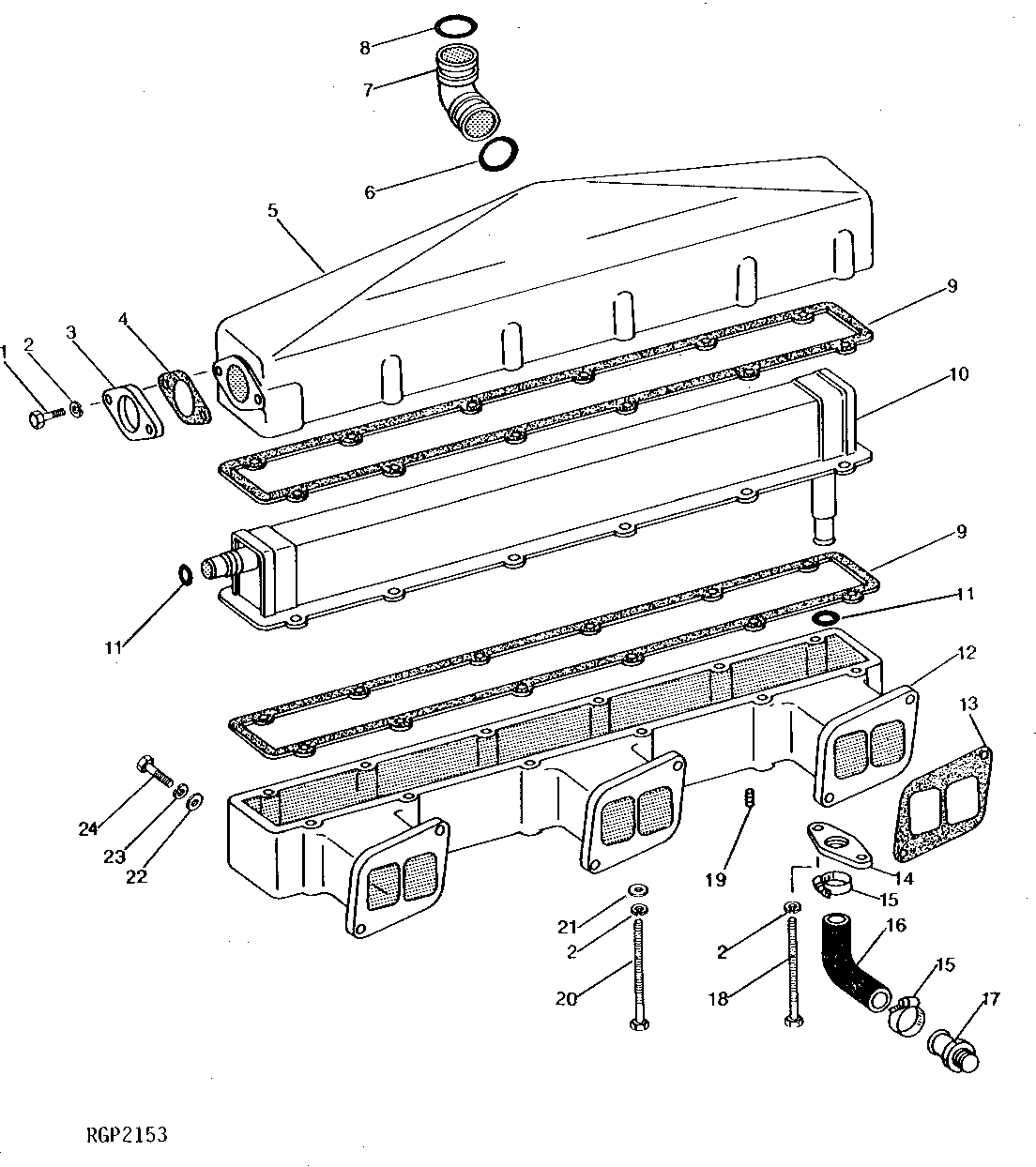

Aftercooler And Intake Manifold ( - 354851)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2661	2	Cap Screw	5/16" X 1-3/8"
2	12H303	12	Lock Washer	5/16"
2	24H1136	2	Washer	11/32" X 11/16" X 0.065", (REAR ADAPTOR TO COVER)
3	R47314	1	Adapter Fitting	(REAR)
4	R97346	1	GASKET	(SUB FOR R47395)
5	R69940	1	Cover	-
6	R50405	1	O-Ring	-
7	R69941	1	COUPLING	(SUB FOR R91415 ) (SUB R94428)
7	R94428	1	Coupling	-
8	R50406	1	O-RING	-
9	R97347	2	GASKET	(SUB FOR R50399)
10	AR70437	1	INTERCOOLER	(SUB RE40280)
10	RE40280	1	INTERCOOLER	-
11	R52811	2	O-RING	-
12	R134432	1	INTAKE MANIFOLD	(NOT AS SHOWN)
12	R59747	1	INTAKE MANIFOLD	(SUB FOR R50396 ) (SUB R134432 AND (3) R130573)(AS SHOWN)
13	R50397	3	GASKET	(USE WITH R59747)(AS SHOWN)
13	R130573	3	Gasket	(USE WITH R134432)(NOT AS SHOWN)
14	R50400	1	ADAPTER FITTING	(BOTTOM)
15	TY22467	2	Clamp	(SUB FOR AR21839)
16	R50402	1	RADIATOR HOSE	-
17	R48362	1	Adapter Fitting	-
18	19H2729	2	Cap Screw	5/16" X 4-1/4"
19	15H666	1	Pipe Plug	3/8"
20	19H2852	10	Cap Screw	5/16" X 4"
21	24H1136	10	Washer	11/32" X 11/16" X 0.065"
22	24M7096	6	Washer	10.500 X 18 X 1.600 mm
23	12H304	6	Lock Washer	3/8"
24	19H3239	6	Cap Screw	3/8" X 1-1/4"
..	RE69495	1	Assembly Line Parts	(NOT SHOWN) AIR HEATER

Aftercooler And Intake Manifold ( - 354851)

Нет текстового описания
