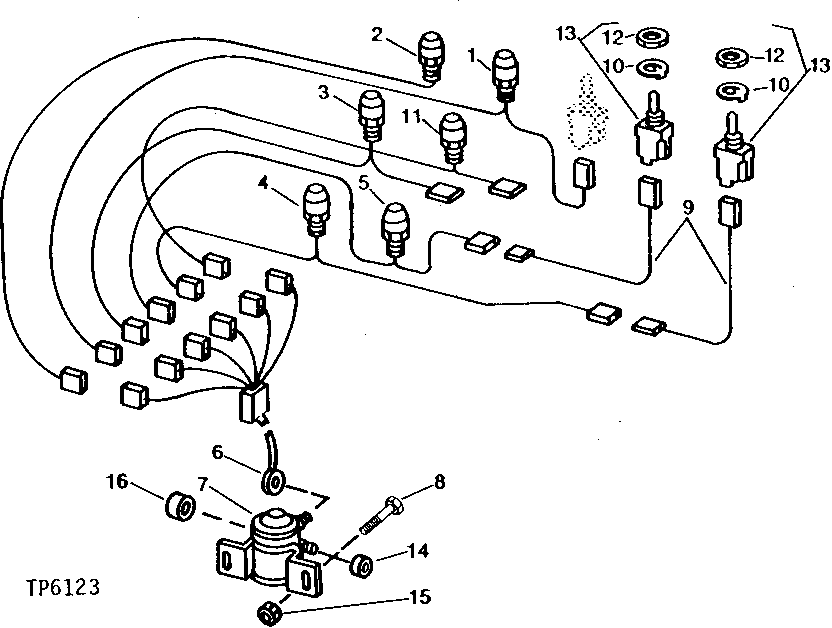

SWITCH PANEL FUSES AND ACCESSORY RELAY [01I18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T82427	1	WASHER	(USE WITH FUSE HOLDER) (NOT ILLUSTRATED)
1	AT164924	1	FUSE HOLDER	(SUB FOR AT14193) (ALSO ORDER T82427) BLOWER SWITCH
2	AT164924	1	FUSE HOLDER	(SUB FOR AT14193) (ALSO ORDER T82427) CONDENSOR FAN
2	T82427	1	WASHER	(USE WITH FUSE HOLDER) (NOT ILLUSTRATED)
3	AT164924	1	FUSE HOLDER	(SUB FOR AT14193) (ALSO ORDER T82427) STARTER, HORN, AND FLUID AID SWITCHES
3	T82427	1	WASHER	(USE WITH FUSE HOLDER) (NOT ILLUSTRATED)
4	AT164924	1	FUSE HOLDER	(SUB FOR AT14193) (ALSO ORDER T82427) TWO-SPEED SHIFT
4	T82427	1	WASHER	(USE WITH FUSE HOLDER) (NOT ILLUSTRATED)
5	AT164924	1	FUSE HOLDER	(SUB FOR AT14193) (ALSO ORDER T82427) HOUSE LOCK
5	T82427	1	WASHER	(USE WITH FUSE HOLDER) (NOT ILLUSTRATED)
6	AT68008	1	WIRING HARNESS	-
7	AT69528	1	SOLENOID	24 VOLT
8	19H1227	2	Cap Screw	1/4" X 1/2"
9	AT41412	2	WIRING LEAD	-
10	R44096	2	Lock Plate	-
11	AT164924	1	FUSE HOLDER	(SUB FOR AT14193) (ALSO ORDER T82427) CAB CIRCULATING FAN
11	T82427	1	WASHER	(USE WITH FUSE HOLDER) (NOT ILLUSTRATED)
12	R44097	2	Nut	-
13	AU41449	1	TOGGLE/ROCKER SWITCH	TWO SPEED CONTROL
13	AU41449	1	TOGGLE/ROCKER SWITCH	HOUSE LOCK CONTROL
14	24H1243	2	WASHER	11/32" X 5/8" X 1/16"
15	14H786	2	Nut	1/4"
16	24H1283	1	Washer	7/32" X 1/2" X 0.049"

SWITCH PANEL FUSES AND ACCESSORY RELAY [01I18]
